24
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
r
eed switch should be adjusted.
T
o adjust the reed switch, you must remove the right
pedal arm and the right pedal disc (see the instruc-
tions below).
See EXPLODED
DRAWING B on
page 30. Remove
the M8 x 18mm
Patch Screws
(80), the Pedal
Arm Caps (30),
and the M8
Washers (33),
and then remove
the Right Pedal
Arm (49).

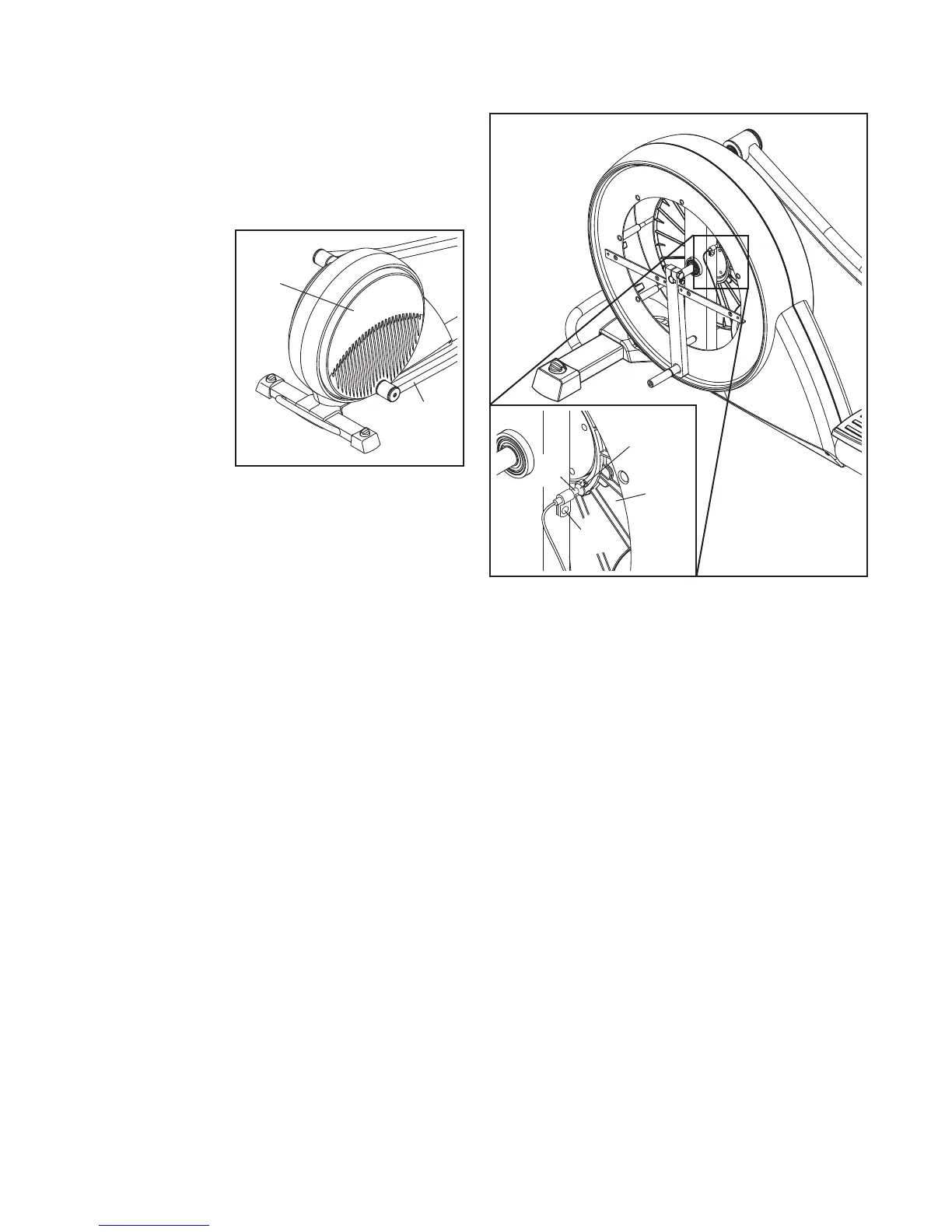

Using a flat screwdriver, release the tabs on the right
Pedal Disc (26) and remove the Pedal Disc.
Locate the Reed Switch (58). Loosen, but do not
remove, the M4 x 16mm Screw (92).
Next, rotate the Pulley (110) until a Magnet (41) is
aligned with the Reed Switch (58). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (92).
Rotate the Pulley (110) for a moment. Repeat these
actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the right pedal disc and the right pedal arm.
41
110
58
92
26
49
