V1.0 PROCUT 30A Digi Plus Plasma Cutter 9085754
Visit www.princessauto.com for more information 15

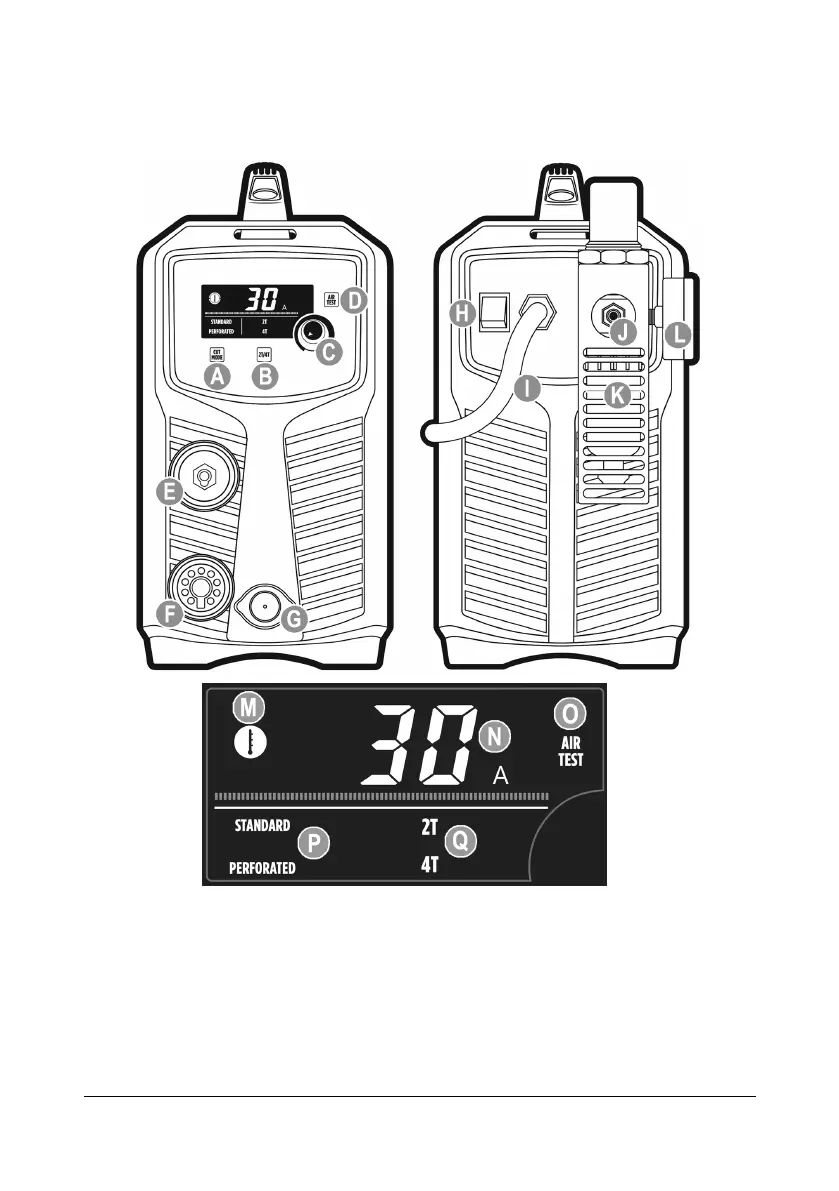

IDENTIFICATION KEY
A Cut Mode Switch.
B 2T Indicator – Press the button until the LED (Q) glows, indicating 2T
status is active.
4T Indicator – Press the button until the LED (Q) glows, indicating 4T
status is active.
C Amperage control dial.
Fig. 1
