Pro's Kit MT-7068 - Page 11

3. Different connectors generate different LED and sound indications as shown in Figure 6.
- RJ-45(8P/8C) LED indication: the MT-7068 Toner (from 1-8 seconds in sequence) is synchronized
with the MT-7068 Probe CABLE MAP.
- RJ-11(6P/6C, 6P/4C, 6P/2C) LED indication: MT-7068 Toner CABLE MAP, 6P/6C each second from
2 to 7 in sequence, 6P/4C each second from 3 to 6 in sequence, 6P/2C each second from 4 to 5 in
sequence is synchronized with the MT-7068 Probe CABLE MAP. If it encounters an empty line, the
indication will cease.
- USB LED indication: the MT-7068 Toner (each second from 1-4 seconds) is synchronized with the
LED on the MT-7068 Probe. Each LED indicator counts for one second. The USB indication will skip
and pause for 4 seconds from LED #5 - #8.
- F (BNC, RCA) LED indication: the MT-7068 Toner (each second from 1-2 seconds) is synchronized
with the LED on the MT-7068 Probe. Each LED indicator counts for one second. The F connector
indication will skip and pause for 6 seconds from LED #3 - #8.
MT-7068-T Toner
Cable Map
MT-7068-R Receiver
Cable Map
RJ-45
(8P/8C)
RJ-11
(6P/4C)
USB

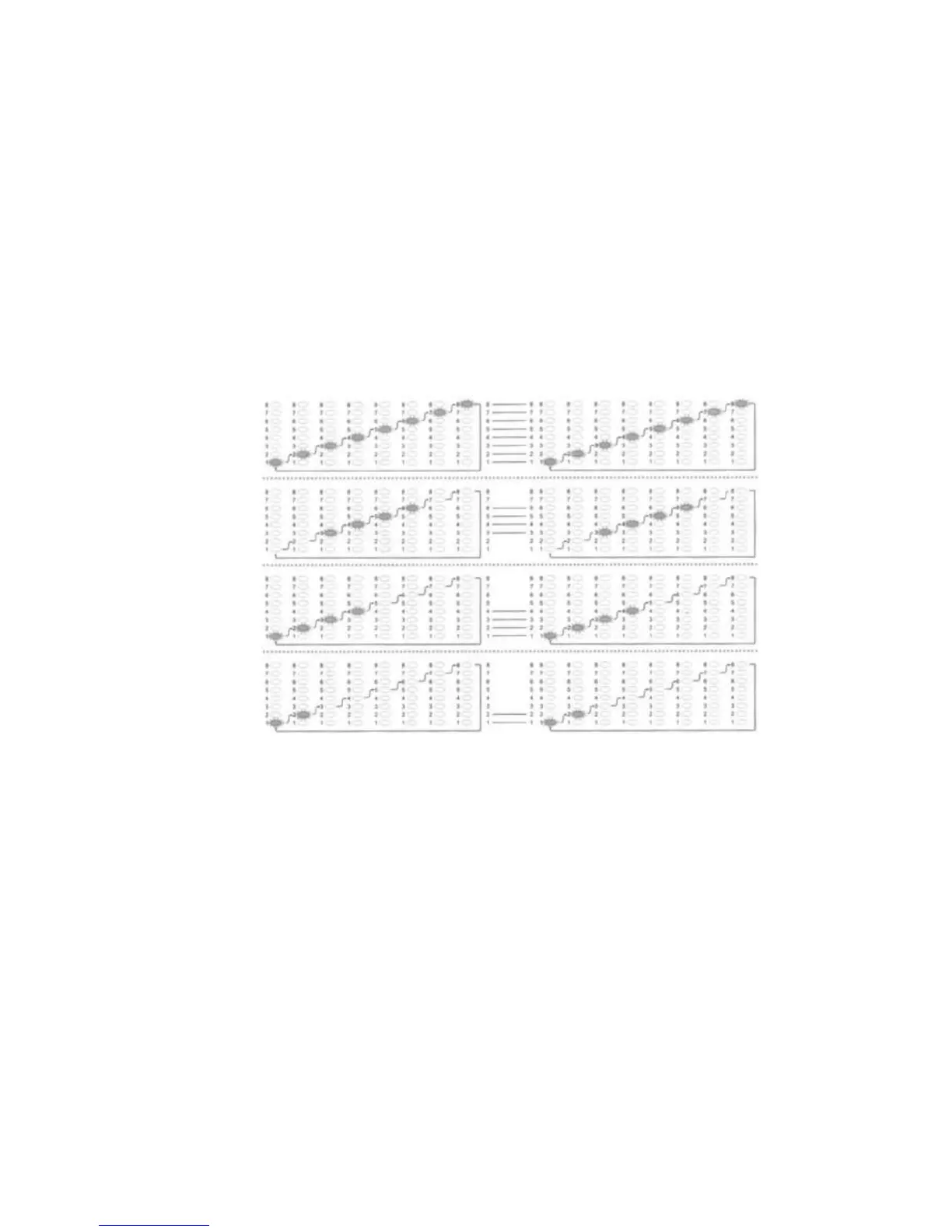

Figure 6 Differenct Connector's Cable Map
F
(BNC, RCA)
11
