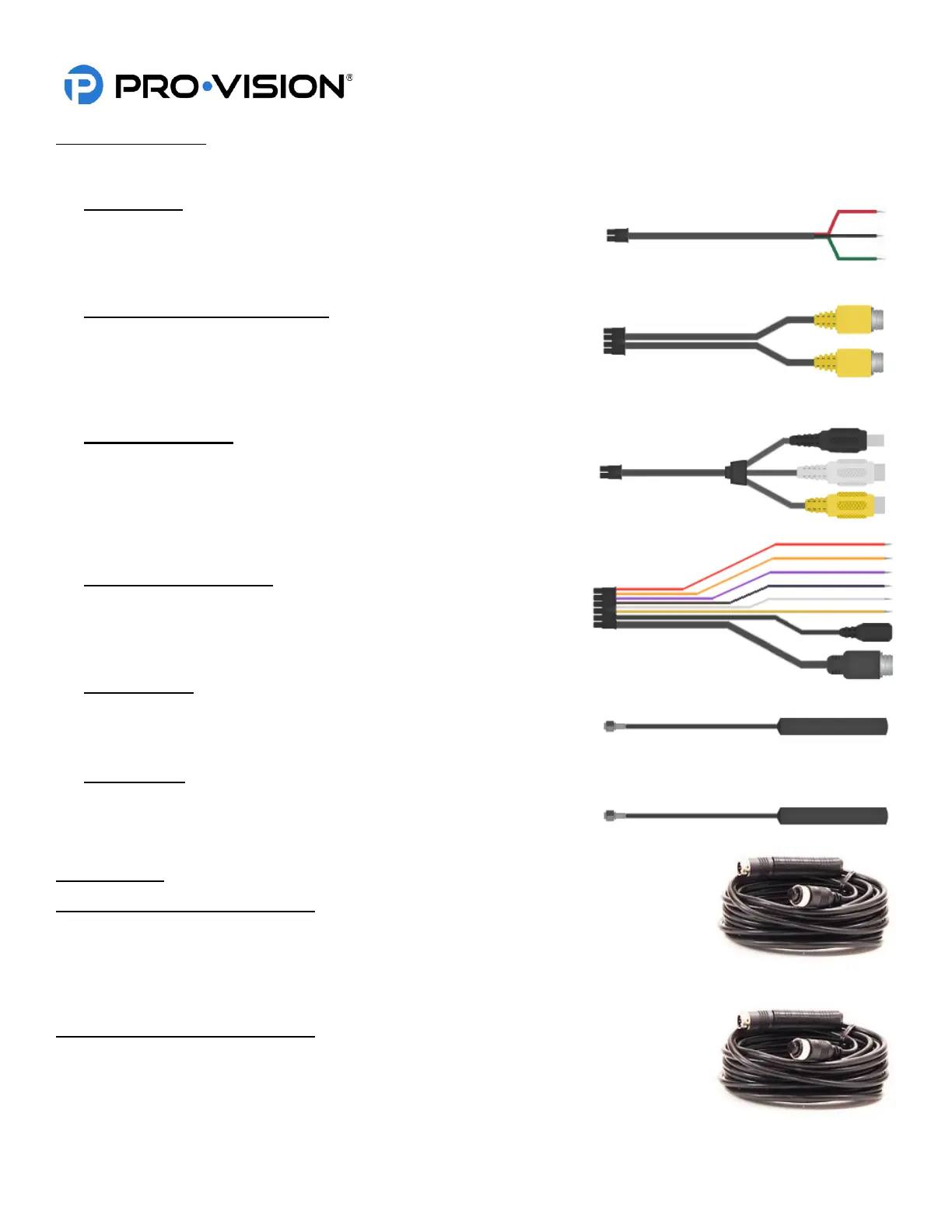

DVR Interface Cables
The DVR Interface Cables are used to connect to the vehicle and other system components.
Power Cable:
This cable supplies battery power to the DVR unit; it also includes an
ignition signal input cable to turn the system ON and OFF. The power
cable includes fuses for both the battery and ignition power.
Camera Interface Cables (Qty. 4):
These cables are used to connect analog cameras 1-8 to the DVR unit.
It supplies power and receives the video and audio from each camera.
The cables are identical except for the labeling of the camera numbers.
Video Output Cable:
This cable is used to output the live video and audio from the DVR unit
to a display monitor for aiming the cameras or real-time observation of
the camera view(s). It includes a temporary power output to power a
display for aiming purposes.
GPS/Event/Trigger Cable:
This cable is used to connect the GPS Antenna, Event Marker, and up
to five (5) external trigger inputs to the DVR unit.
Wi-Fi Antenna:
The Wi-Fi Antenna is used by the DVR to allow wireless viewing of the
camera and DVR settings as well as wireless transfer of files to a server
in a building. At least one antenna needs to be connected to the DVR.
4G Antennas:
The two (2) 4G Antennas are used by the DVR for cellular connection to
the DVR. The antennas are only included with the optional 4G version of
the DVR unit.
Camera Cables
PX-1942 15ft Analog HD A/V Cable:
15ft Analog HD cables are used for the connecting both analog standard definition (SD) and
high definition (HD) cameras to the DVR unit. The male ends connect to cameras and the
female ends connect to the DVR.
PX-1943 33ft Analog HD A/V Cable:
33ft Analog HD cables are used for the connecting both analog standard definition (SD) and
high definition (HD) cameras to the DVR unit. The male ends connect to cameras and the
female ends connect to the DVR.
