On impact device type U with error dt = X.XX ms
If the dt-value is higher than 2.30 ms
a The support ring is not correctly positioned.
Fit the support ring correctly on the end stop.
When the faults have been rectified, recording
of measurement values can be continued.
The measurement series can also be stopped
by pressing the «END» key.
11 Maintenance
11.1 General
The impact device U does not require any special care
except cleaning of the impact body and guide tube after
approx. 5,000 impact measurements. Proceed as follows
when cleaning:
Fig.66
Impact device U (Fig.66)
Unscrew the support ring U
from the guide tube.
Maintenance 25
Impact device P / PG
(Fig.67) Unscrew the secur-
ing screw A1 (Fig.68) of the
support ring until the sup-
port ring can be removed or
unscrewed from the impact
device.
Fig.67

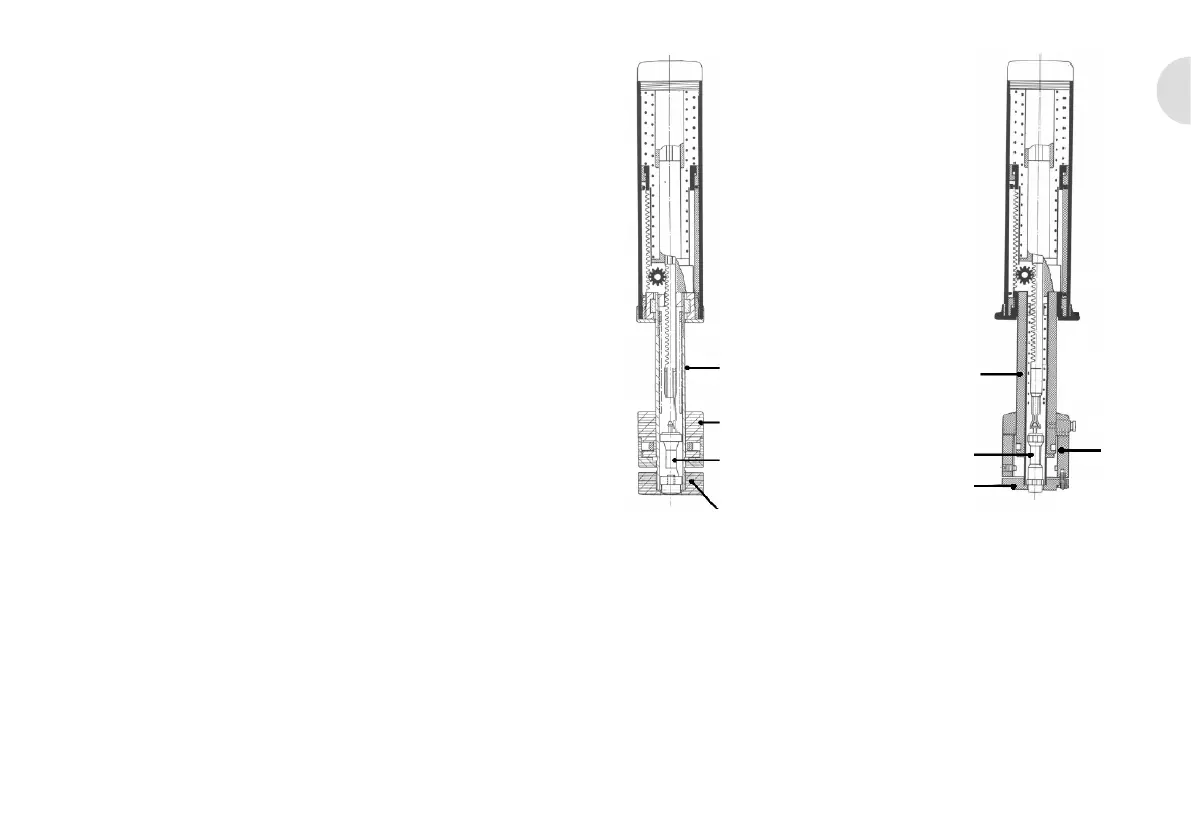

Guide tube (c)
Coil body (b)
Impact body
Support ring (a)
Guide tube (c)
Impact body
Support ring (a)
Coil body
(b)
