Technical data of the barcode reader
Type: IS4225
Dimensions: 45.7 mm x 40.6 mm x 18.5 mm
Voltage: 5 VDC ± 0.25 V
Current during scanning: 135 mA, typically @ 5
VDC
Laser class: CDRH: Class II and IEC
Class II component
Light source: 650 nm
Laser power : 0.75 mW (peak)
Interface: RS 232
Minimum module width: 0.173 mm (6.8 mil)
Scanning speed: 52 scan lines per second
Scanning pattern: One scanning line
Depth of the scanning
field: 12.7 mm – 203 mm for 0.33 mm
(13 mil) barcodes
Width of the scanning
field: 28.6 mm @ direct contact;
101.6 mm @ 76.2 mm
Operating temperature: -20 °C to 50 °C
Moisture: 5% to 95 % relative
air humidity
(non-condensing)
Parotester2 – supply of the barcode
reader
The barcode reader is supplied with an RS
232 cable, Velcro-type fastener and holders,
already programmed and ready for use. To
prevent incorrect parameter transfer during

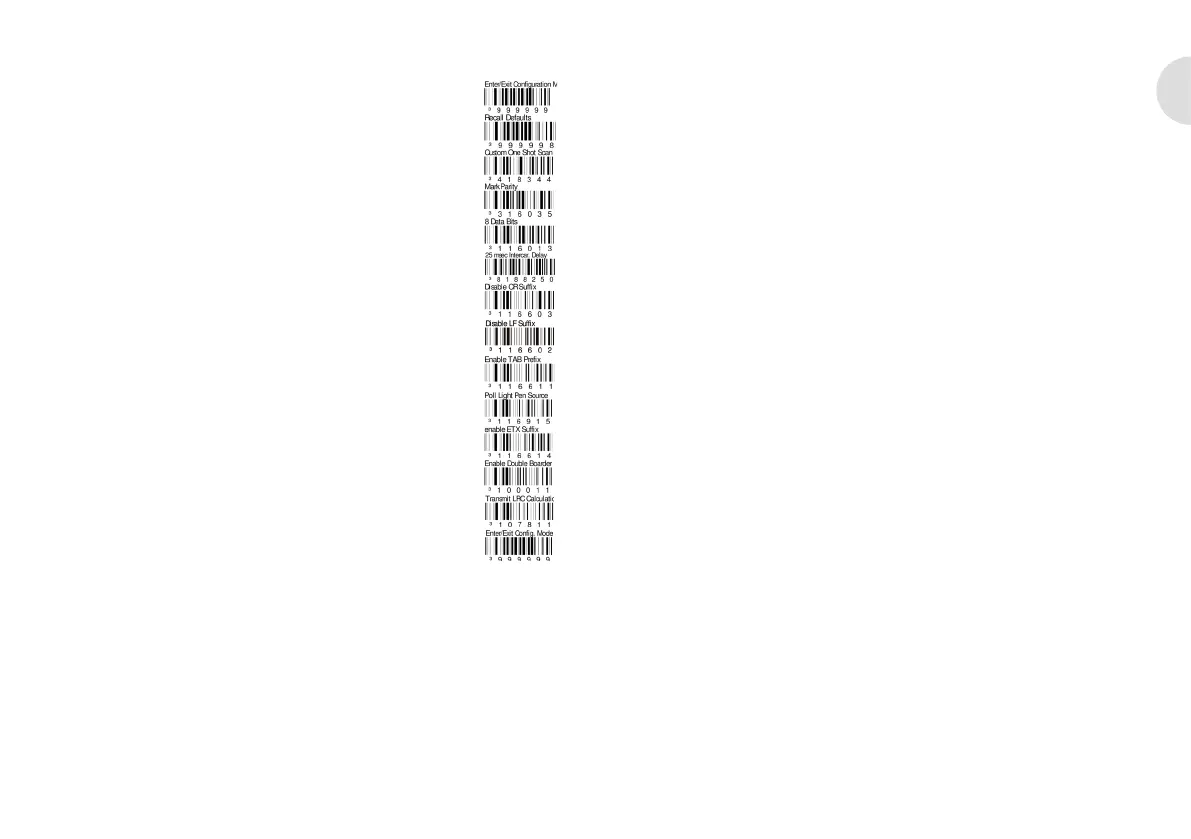

protocol transfer of the barcode reader, all
transfer parameters are integrated in this sheet
in the form of a barcode (items 1 to 14).
Procedure for a new barcode reader
parameter setting.
The barcode reader must be connected to the
Parotester2 display device. The display device
is switched on.
Scan items 1 to 14 with the laser in turn
continuously without removing the reader.
The programming mode must be concluded
with item 14.
The barcode reader is once more correctly
programmed and ready for use.
Accessories 29
ON / OFF
Program mode
ON / OFF
Program mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
