Prochem Steempro 2000 - Wand Parts List

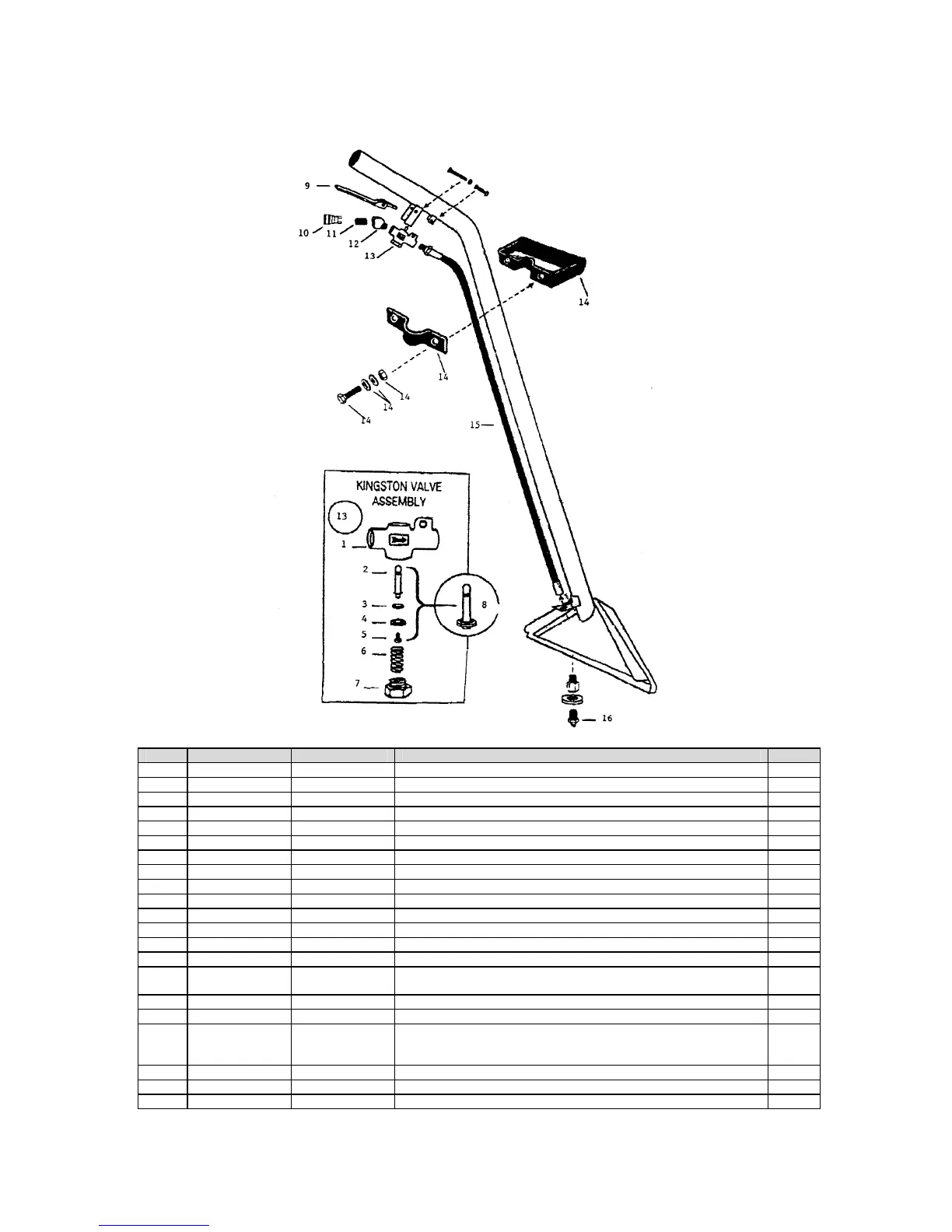

WAND PARTS LIST
REF. STOCK CODE PART NO. DESCRIPTION QTY
1 E00526 G00526 KINGSTON VALVE (ASSEMBLY) 1
2 E00834 M00834 K-VALVE STEM 1
3 KP4002 BS006 K-VALVE O-RING 1
4 E00839 M00839 K-VALVE CAGE 1
5 E00838 M00838 K-VALVE SCREW 1
6 E00835 M00835 K-VALVE SPRING 1
7 E00833 M00833 K-VALVE CAP 1
8 E00836 M00836 K-VALVE PLUNGER ASSEMBLY 1
9 E00832-A D03424 LEVER, KINGSTON VALVE 1
- RS5207 130-678 SCREW STAINLESS 1
- RS5208 521-939 LOCKING NUT STAINLESS 1
10 GU00102 A00102 FEMALE QUICK CONNECT 1/4F 1
11 CH00111 A00111 ¼ CLOSE NIPPLE, BRASS 1
12 E00053 A00053 ¼ ELBOW 45° BRASS 1
13 E00526
CM5001
G00526
CMPV1175
KINGSTON VALVE ASSEMBLY
K-VALVE (NEW STYLE)
1
14 PC876168 81033AC WAND HANDLE ASSEMBLY 1
15 - 00601-47A HOSE ASSEMBLY 1
16 LR6301
LR5202
TP11006
28-03F110
SPRAY TIP 11006 BRASS (SINGLE JET SX2000)
SPRAY TIP 11003 BRASS (DUAL JET SX2100)
SPRAY TIP 11001 BRASS (DUAL JET SX2750)
1
2
2
- DE4920 4193A-5-50SS BALL CHECK VALVE 50 MESH 1
- DE4906 A011670013 ¼ NOZZLE BODY BRASS 1
- DE4907 A011650015 BODY CAP, BRASS 1
