PUMP PARTS LIST
REF. STOCK CODE PART NO. DESCRIPTION QTY
FJ4401B D1735H7011 FLOJET PUMP 230V 70 PSI CE
1 FJ4429 20131001 PUMP SCREWS 4
2 PRESSURE SWITCH ASSEMBLY (SEE ITEM REF.8) 1
3 FJ5508 20914003 CHECK VALVE ASSEMBLY 1
4 FJ5007 21006033 DIAPHRAGM / CAM BEARING ASSEMBLY 1
5 FJ5009 R2039117 MOTOR ASSEMBLY 230V 1
6 MOTOR REAR END BELL ASSEMBLY (SEE ITEM REF.5) 1
7 FJ4409 11028101 BASE PLATE / GROMMET ASSEMBLY 1
8 FJ5010 21009000 UPPER HOUSING (SWITCH BY-PASS) 1
10 BEARING COVER (SEE ITEM REF.4) 1

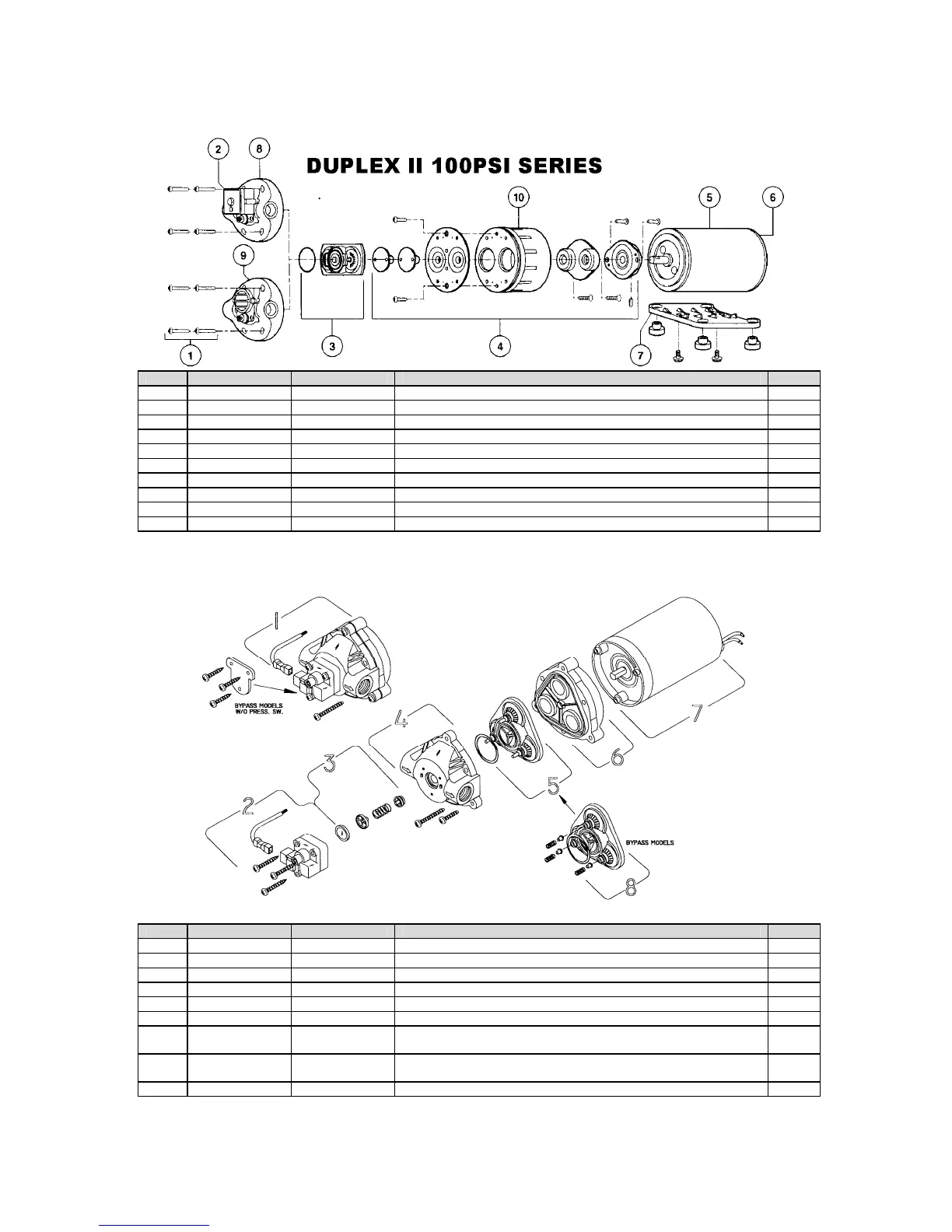

SHURFLO PUMP 100PSI
REF. STOCK CODE PART NO. DESCRIPTION QTY
PC809147 8090-945-270 SHURFLO PUMP 100PSI 230V BY-PASS 1
1 SH5202 94-382-39 PUMP HEAD ASSEMBLY 1
2 SH5201 94-229-08 PRESSURE SWITCH (NOT FITTED ON BY-PASS MODEL) 1
3 PC809333 94-374-16 CHECK VALVE 1
4 SH5205 94-379-01 UPPER HOUSING 1
5 VALVE KIT 1
6 SH5203
SH5209
94-385-30
94-238-03
PUMP DRIVE WITH SOLID DIAPHRAGM
PUMP DRIVE WITH DIAPHRAGM
1
7 SH5204
SH5207
11-201-00
94-003-01
MOTOR 230V
ENDBELL BRUSH KIT 230V
1
1
8 PC809337 94-391-26 VALVE KIT 1
