Procom MN100TPA-B - INSTALLATION (Continued); Natural Gas Connection Diagram; Propane Gas Connection Diagram

www.usaprocom.com
13200049-02A
INSTALLATION

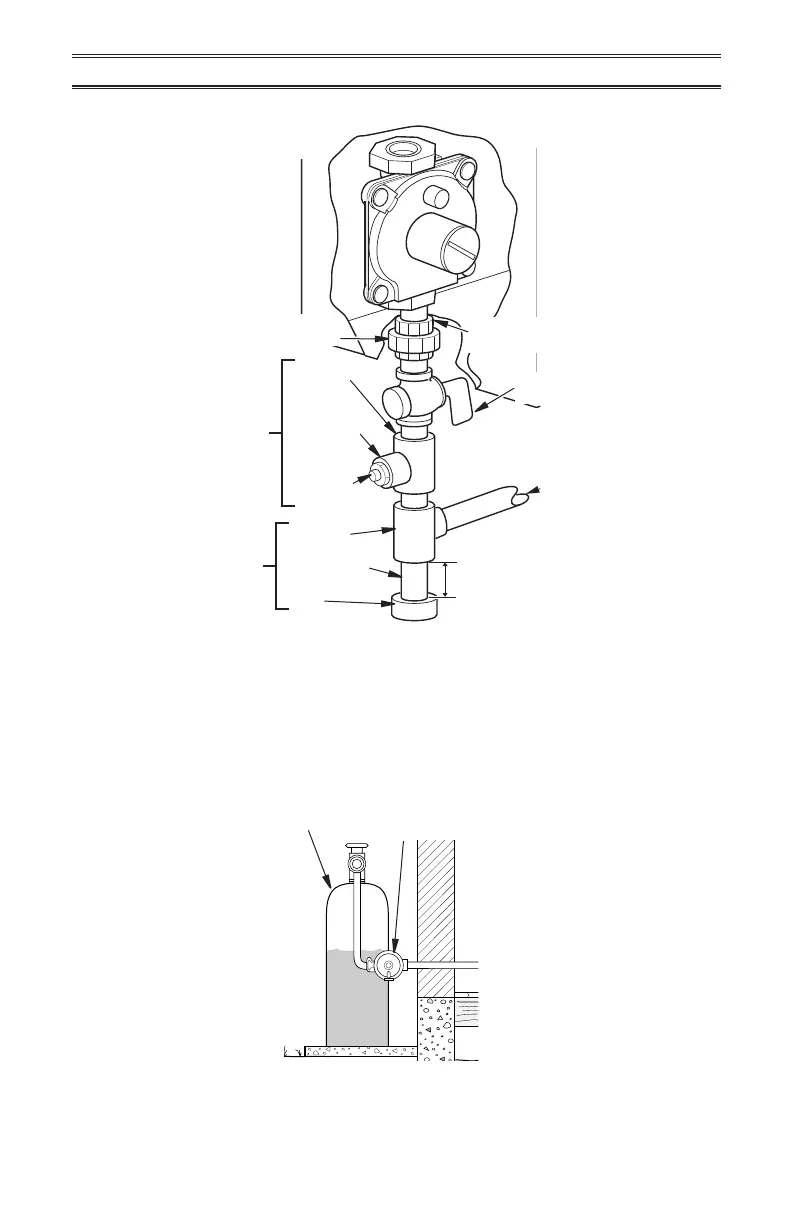

Figure 12 - Gas Connection
* Purchase the optional CSA design-certied equipment
shuto󰀨 valve from your dealer.
Figure 13- External Regulator
with Vent Pointing Down
External
Regulator with
Vent Pointing
Down
Propane
Supply Tank
Equipment
Shuto󰀨 Valve
Ground
Joint Union
3/8" NPT
Pipe Nipple
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test Gauge
Connection*
Sediment
Trap
Tee Joint
Pipe Nipple
Gap
3" Minimum
Natural Gas
From Gas Meter
(7" W.C.** to 10.5"
W.C. Pressure)
Propane
From External
Regulator (11"
W.C.** to 14" W.C.
Pressure)
