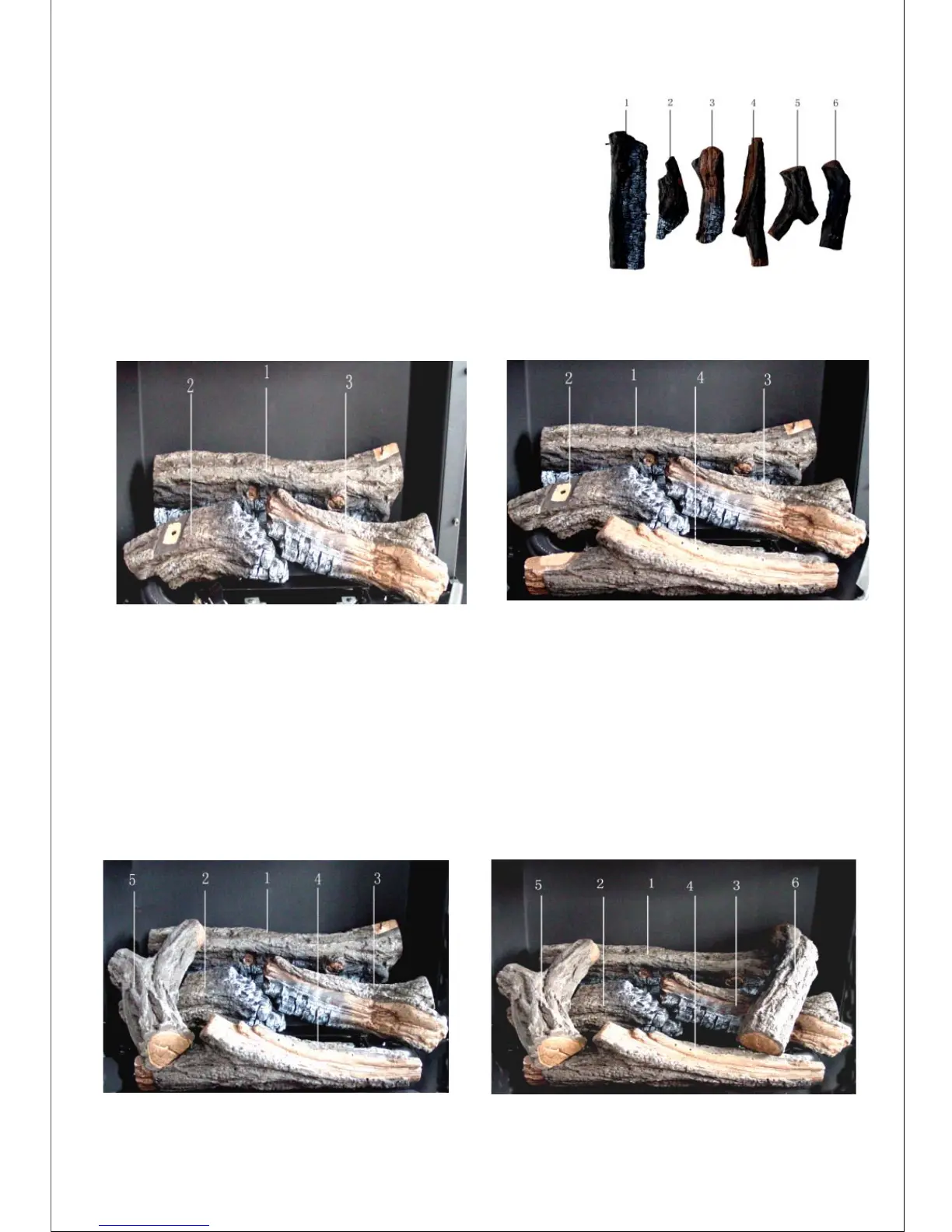

INSTALLING THE DECORATING LOGS OF SN280TYA/SL280TYA
1. Fasten log #1.log #2 and log#3 separately on the
correspondent angle iron(See Figure 2).
Figure 1
Figure 2
Figure 3
Figure 4 Figure 5
3. Insert the pin on the upper part of log #5 into the pinhole on the left side of log #2.
Place the lower part of log #5 on the flat roof at the left side of log #4(See Figure 4).
2. Fasten log #4 separately on the correspondent
angle iron(See Figure 3).
4. Insert the pinhole on the upper part of log #6 into the pin on the left side of log #1.
Place the lower part of log #6 on the flat roof at the left side of log #4(See Figure 5).
