8
WARNING: Never connect
heater to private (non-utility) gas
wells. This gas is commonly known
as wellhead gas.
CAUTION: Use only new, black
iron or steel pipe. Internally-tinned
copper tubing may be used in
certain areas. Check your local
codes. Use pipe of 1/2
" diameter or
greater to allow proper gas volume
to heater. If pipe is too small, loss
of pressure will occur.
Installation must include an equip-
ment shutoff valve, union, and plugged
1/8
" NPT tap. Locate NPT tap within
reach for test gauge hook up. NPT
tap must be upstream from heater
(see Figure 7).
IMPORTANT: Install equipment
shutoff valve in an accessible
location. The equipment shutoff
valve is for turning on or shutting
off the gas to the appliance. Apply
pipe joint sealant lightly to male
threads.This will prevent excess
sealant from going into pipe. Excess
sealant in pipe could result in clogged
heater valves.
CAUTION: Use pipe joint seal-
ant that is resistant to liquid
petroleum(LP) gas.
We recommend that you install a
sediment trap in supply line as shown
in Figure 7. Locate sediment trap
where it is within reach for cleaning.
Install in piping system between fuel
supply and heater. Locate sediment
trap where trapped matter is not likely
to freeze. A sediment trap traps
moisture and contaminants. This keeps
them from going into heater controls.
If sediment trap is not installed or is
installed wrong, heater may not run
properly.
CAUTION: To avoid damage to
regulator, hold gas regulator with a
wrench when connecting into gas
piping and/or fittings.
WARNING: Never use an
open flame to check for a leak.
Apply a mixture of liquid soap and
water to all joints. Bubbles forming
show a leak. Correct all leaks at
once.
CAUTION: Make sure external
regulator has been installed between
propane/LP supply and heater. See
guidelines under Connecting to Gas
Supply, page 7.

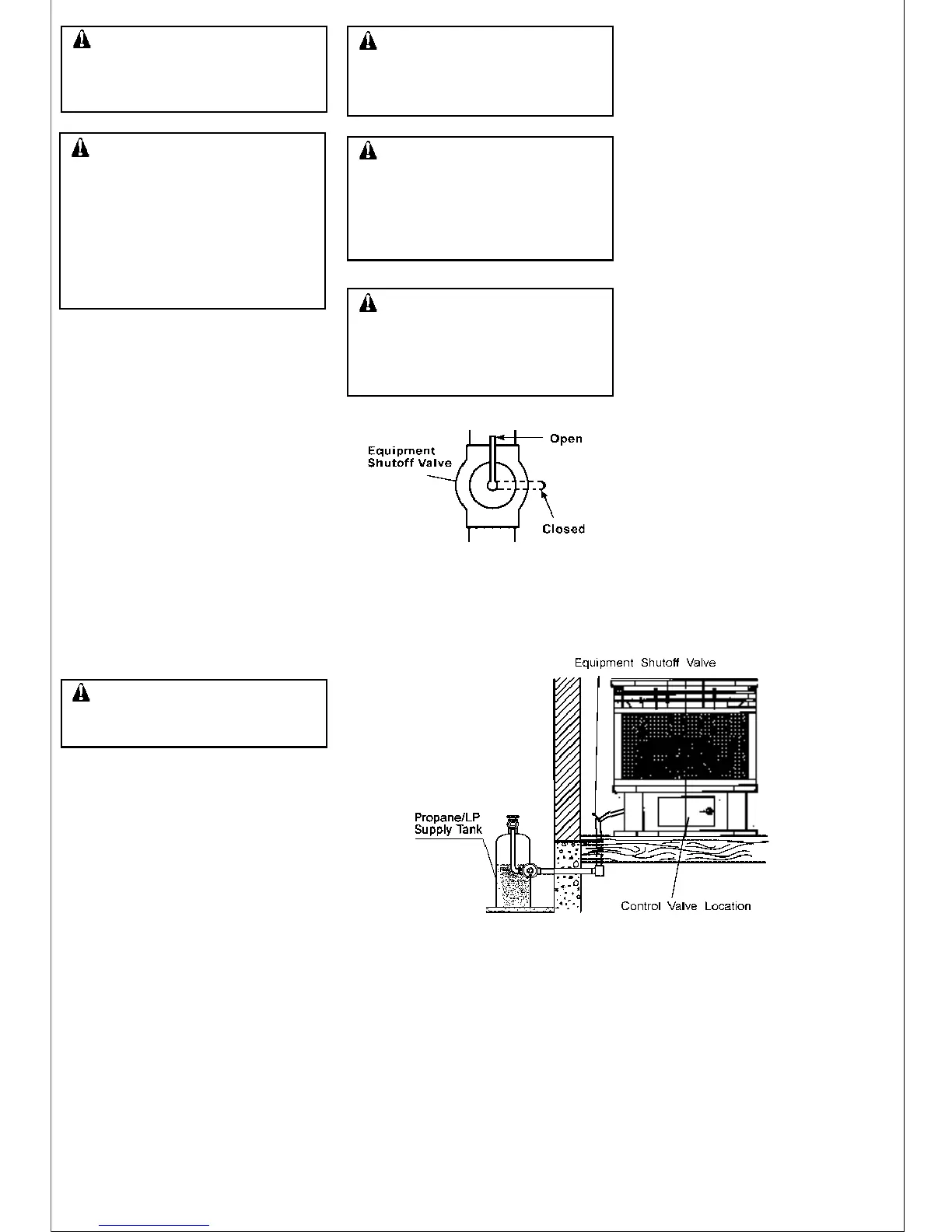

Figure 8 -Equipment Shutoff Valve
Pressure Testing Gas Supply
Piping System Test Pressures In
Excess Of 1/2 PSIG(3.5kPa)
1. Disconnect heater with its
appliance main gas valve (control
valve) and equipment shutoff valve
from gas supply piping system.
Pressures in excess of 1/2 psig
will damage heater regulator.
2. Cap off open end of gas pipe
where equipment shutoff valve
was connected.
3. Pressurize supply piping system
by either using compressed air or
opening propane/LP supply valve.
4. Check all joints of gas supply
piping system. Apply mixture of
liquid soap and water to gas
joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment
shutoff valve to gas supply. Check
reconnected fittings for leaks.
Pressure Testing Heater Gas
Connections
1. Open equipment shutoff valve
(see Figure 8).
Figure 9.1 -Checking Gas Joints
