PROEL NET10A User Manual

4
specifi cations
MODEL NET10A NET12A NET15A NET215A NET12MA
System type 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure Quasi 3-way vented
enclosure
2-way vented enclosure
coaxial stage monitor
Amplifi er Continuous Power 200 W Class H + 50 W
Class AB
300 W Class D + 100 W
Class AB
500 W Class D + 100 W
Class AB
1000 W Class D + 100 W
Class AB
300 W Class D + 100 W
Class AB
Max SPL 123 dB 125 dB 128 dB 135 dB 125 dB
Frequency response 70 Hz - 20 kHz 55 Hz - 20 kHz 50 Hz - 20 kHz 40 Hz - 20 kHz 55 Hz - 20 kHz
Connectors IN: XLR Combo
LINK: XLR M
IN: XLR Combo
LINK: XLR M
IN: XLR Combo
LINK: XLR M
IN: XLR Combo
LINK: XLR M
IN: XLR Combo
LINK: XLR M
Controls Level, gnd lift, LIVE /
MUSIC
Level, gnd lift, LIVE /
MUSIC
Level, gnd lift, LIVE /
MUSIC
Level, gnd lift, LIVE /
MUSIC
Level, gnd lift,
MONITOR / FOH
Crossover Frequency 2500 Hz 2000 Hz 2000 Hz 400 -2000 Hz 2000 Hz
Input Impedance 20 kohm balanced
10 kohm unbalanced
20 kohm balanced
10 kohm unbalanced
20 kohm balanced
10 kohm unbalanced
20 kohm balanced
10 kohm unbalanced
20 kohm balanced
10 kohm unbalanced
Input Sensitivity 0 dBu / 0.775 V 0 dBu / 0.775 V 0 dBu / 0.775 V 0 dBu / 0.775 V 0 dBu / 0.775 V
Low Frequency Device 10'' woofer - 2" VC 12'' woofer - 2.5" VC 15'' woofer -3" VC 2x15'' woofer -3" VC 12'' woofer - 2.5" VC
High Frequency Device 1'' compression driver
- 1.4" VC
1'' compression driver
- 1.75" VC
1'' compression driver
- 1.75" VC
1'' compression driver
- 1.75" VC
1'' neodymium
compression driver
- 1.75" VC
Crossover Frequency 2500 Hz 2000 Hz 2000 Hz 400 -2000 Hz 2000 Hz
Angular coverage 90° H x 60° V with
constant coverage horn
90° H x 60° V with
constant coverage horn
90° H x 60° V with
constant coverage horn
90° H x 60° V with
constant coverage horn
80°
Trapezoidal taper 8° 8° 8° 8° -
Monitor taper - - - - 36°
Flying System 5 x M10 - top, bottom,
rear
5 x M10 - top, bottom,
rear
5 x M10 - top, bottom,
rear
5 x M10 - top, bottom,
rear
4 x M10 - bottom
Construction 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood
Finishing Anti-scratch BLACK
paint fi nish
Anti-scratch BLACK
paint fi nish
Anti-scratch BLACK
paint fi nish
Anti-scratch BLACK
paint fi nish
Anti-scratch BLACK
paint fi nish
Mounting Pole 1 x bottom double angle
fl ange, 0° or 7.5°
1 x bottom double angle
fl ange, 0° or 7.5°
1 x bottom double angle
fl ange, 0° or 7.5°
1 x bottom 1 x left side double
angle fl ange, 0° or 7.5°
Weight 17.5 kg (38.6 lb) 22 kg (48.6 lb) 27.5 kg (50.7 lb) 47 kg (103.4 lb) 18 kg (39.7 lb)
Dimensions (W x H x D) 355 x 525 x 330 mm 410 x 640 x 380 mm 470 x 720 x 430 mm 470 x 1120 x 500 mm 510 x 330 x 500 mm
Power Supply 230 VAC or 120 VAC
- 50/60 Hz
230 VAC or 120 VAC
- 50/60 Hz
230 VAC or 120 VAC
- 50/60 Hz
230 VAC or 120 VAC
- 50/60 Hz
230 VAC or 120 VAC
- 50/60 Hz
Maximun Consumption 390 VA 550 VA 700 VA 1470 VA 550 VA
Rated Consumption* 135 VA 110 VA 150 VA 405 VA 110 VA
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

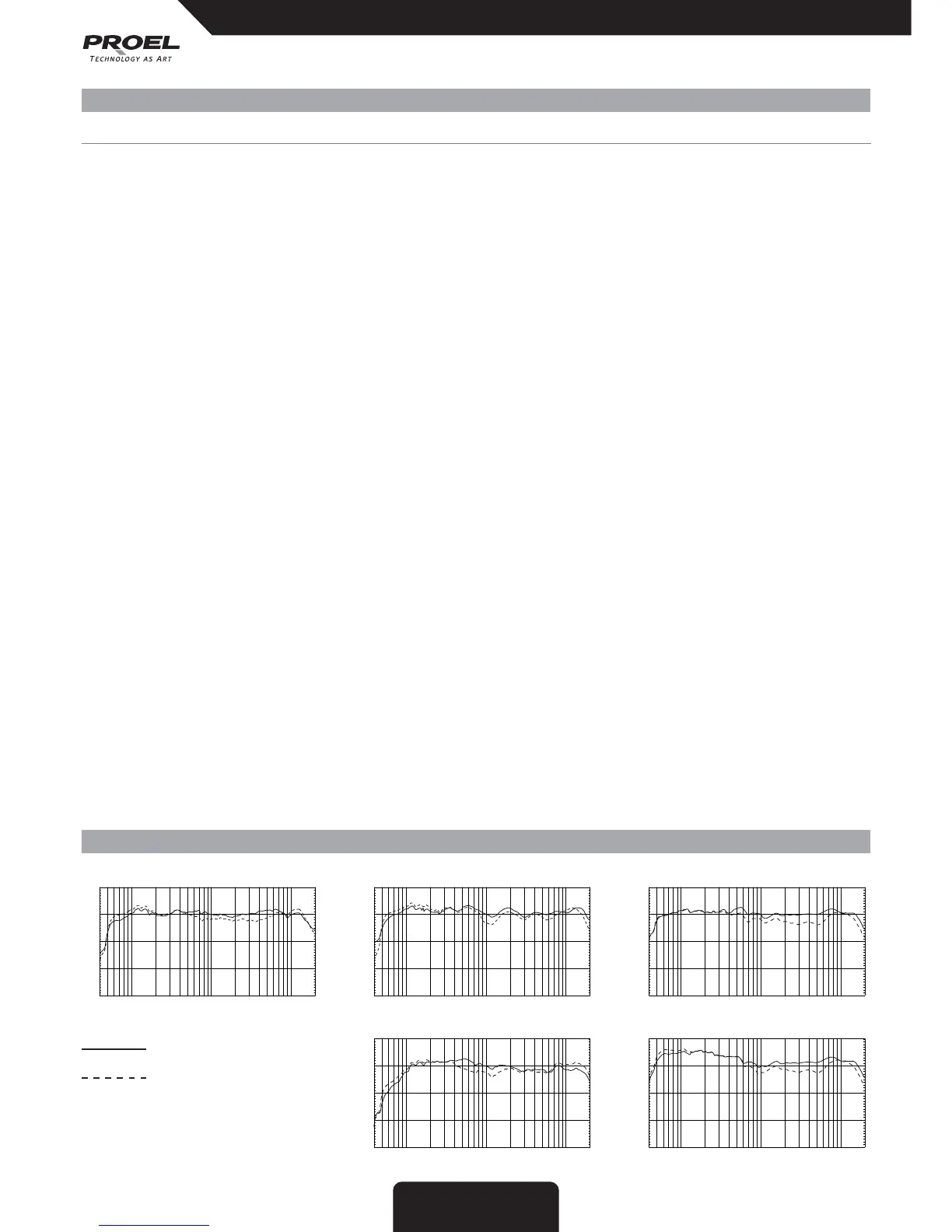

TECHNICAL SPECIFICATIONS SPECIFICHE TECNICHE
FREQUENCY RESPONSE
RISPOSTA IN FREQUENZA
0
dB
40 100 1K 10K 20K
Hz
+10
-20
-30
-10
0
dB
40 100 1K 10K 20
K
Hz
+10
-20
-30
-10
0
dB
40 100 1K 10K 20
K
Hz
+10
-20
-30
-10
0
dB
40 100 1K 10K 20
K
Hz
+10
-20
-30
-10
0
dB
40 100 1K 10K 20
K
Hz
+10
-20
-30
-10
NET 10A NET 12A
NET 15A
NET 12MA
NET 215A
LIVE / MONITOR (NET12MA) SET
MUSIC / FOH (NET12MA) SET

PROEL NET10A Specifications
