PROEL SMART plus - Connettori; Connectors; Suggested Cables; Connection Examples

9

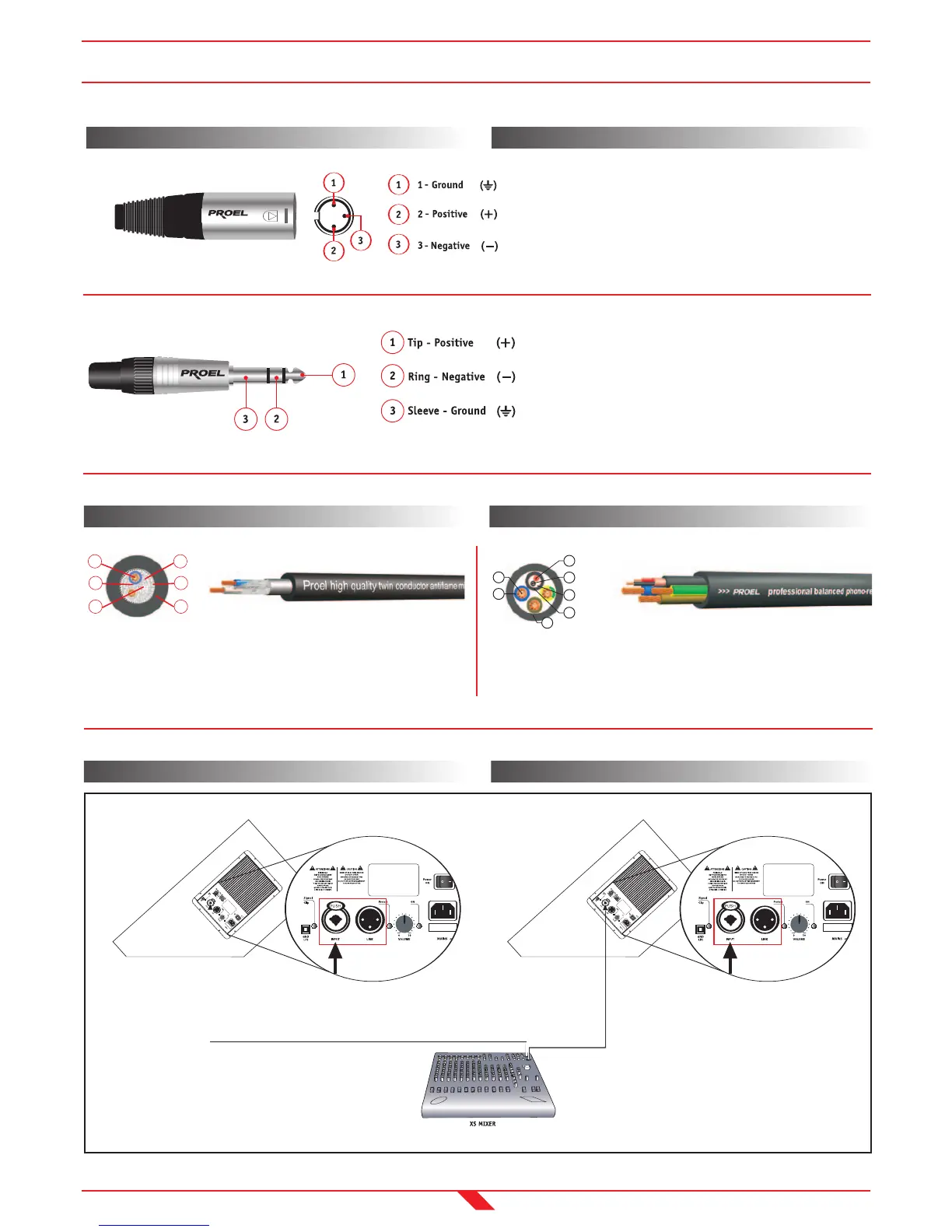

CONNETTORI - ESEMPI DI CONNESSIONE
CONNECTORS - CONNECTION EXAMPLES
CONNETTORI Italiano CONNECTORS English
CAVI CONSIGLIATI Italiano SUGGESTED CABLES English
ESEMPI DI CONNESSIONE Italiano CONNECTION EXAMPLES English
SMAR
T plus / SMART V plus
A
CTIVE MODELS
XLR balanced
2-positive / 3-negative / 1-ground
XLR
unbalanced
2-positive / 3-n
egative connected to 1-ground
JACK balanced
Tip-positive / Ring-negative / Sleeve-ground
JACK unbalanced
Tip-positive / Ring-negative connected
to Sleeve-ground
4
5
6
1
2
3
HPC250
1)Tinned copper 22 AWG = 7 x 0,20mm (0,22mm
2
)
2)PE ø 1.36mm
3)Tinned copper 24 AWG = 7 x 0,20mm (0,22mm
2
)
4)Conductors: Spiral cotton filter
5)Cable: Tinned copper braid 6x16x0,10 mm > 95%
6)FLEXIBLE PVC 60 shore ø 6.50 mm
1) 3) Bare copper
Power: 16 AWG = 3x29x0.25 mm (1.5 mm
2
)
Signal: 22 AWG = 2x11x0.20 mm (0.35 mm
2
)
2)Power: PVC 60 shore ø 3.0 mm
4)Signal: PVC HT105 ø 1.50 mm
5)Spiral red copper 4x16x0.12 90%
6)CONDUCTORS - PVC 60 shore ø 4.00 mm
7)CABLE - Flexible PVC 60 shore ø 10.80 mm
Com-
plying with CEI 20-20 regulations
3
4
5
6
7
2
1
HPC501
