5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver
, an adjustable
wrench , and a rubber mallet .

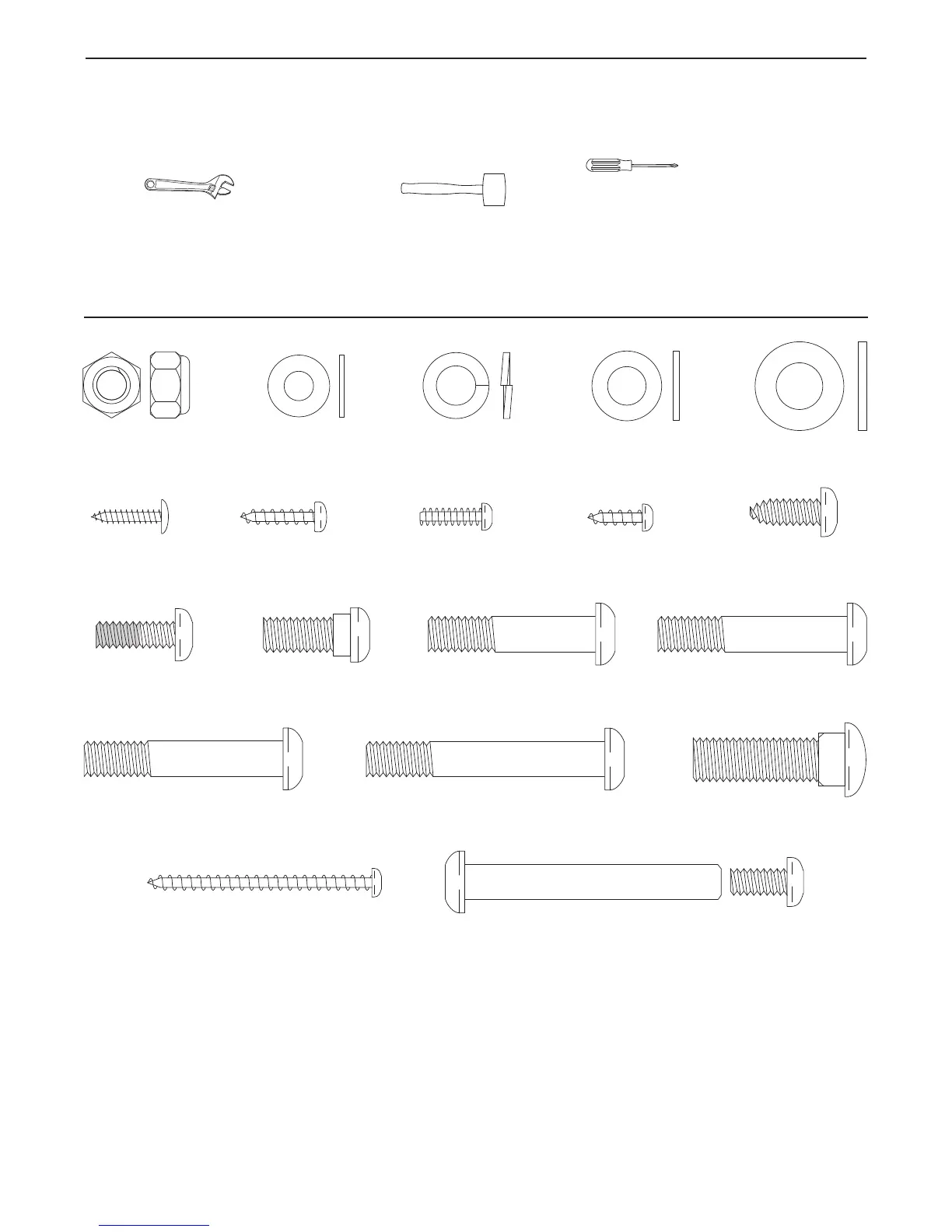

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number following the key
number is the quantity needed for assembly.
Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
Union Bolt Set (27)–2
M4 x 52mm Screw (98)–2
M4 x 16mm Round
Head Screw (45)–1
M4 x 16mm
Screw (66)–12
M8 Split
Washer (94)–10
M8.5 Small
Washer (53)–2
M8 x 19mm Shoulder
Screw (22)–2
M6 x 16mm Tapered
Button Screw (107)–8
M8 x 43mm Button
Bolt (50)–4
M8 x 38mm Button
Screw (70)–2
M10 x 35mm Carriage
Bolt (20)–2
M8 x 54mm Button
Screw (33)–4
M8 x 45mm Button
Screw (102)–4
M4 x 14mm Round
Head Screw (93)–2
M8 Nylon
Locknut (46)–4
M10 Washer
(99)–2
M4 x 12mm Round
Head Screw (18)–2
M6 x 18mm Patch
Screw (67)–4
M6 Washer
(58)–2
To Next Page
