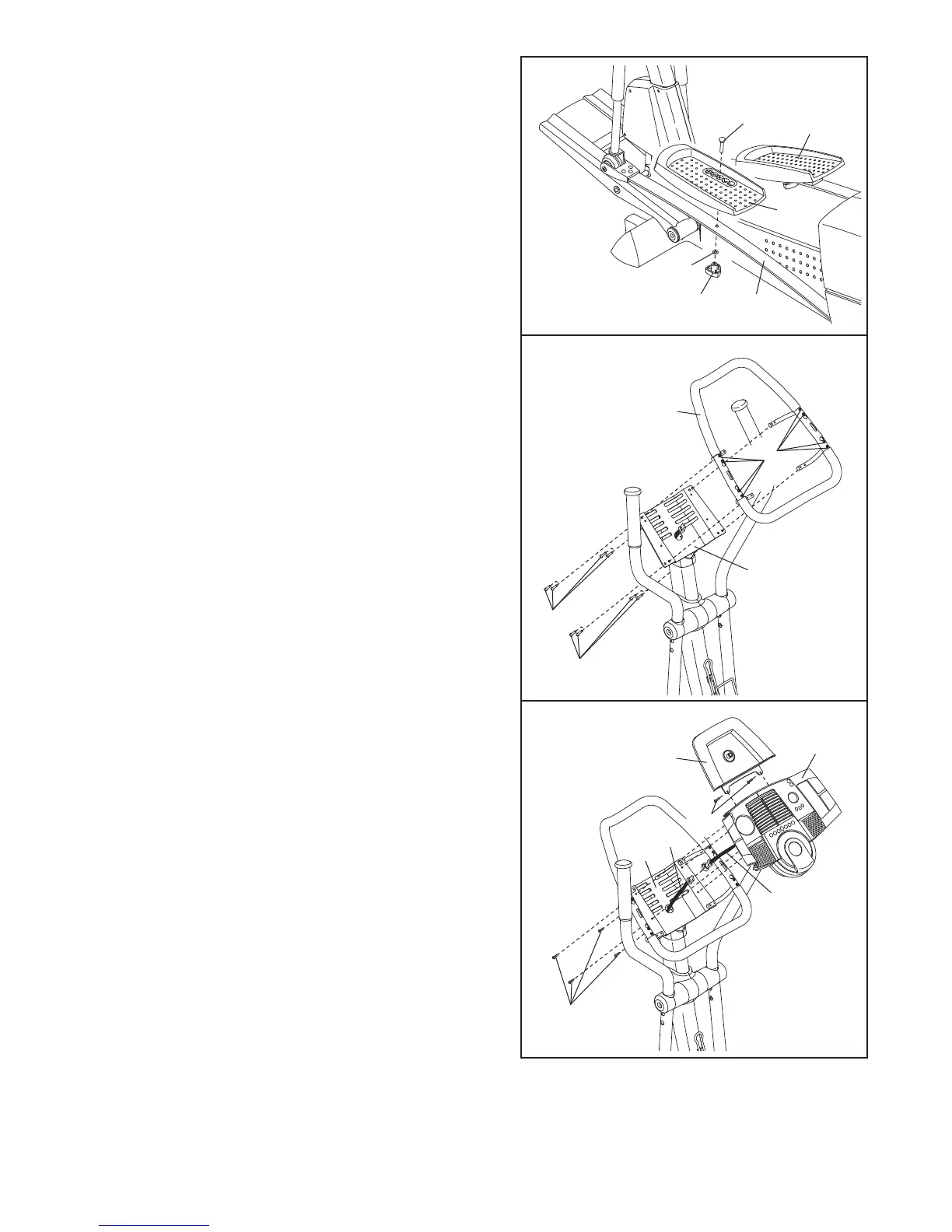

12. See step 13. Remove the six M4 x 16mm Screws (66)
and the Left and Right Handlebar Covers (109, 110)
from the Console (5).
Attach the CD Holder (1
14) to the Console (5) with
two M4 x 12mm Round Head Screws (18) as shown.
While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness down into the Upright (2).
Attach the Console (5) to the Upright (2) with four M4
x 16mm Screws (66).
Be careful to avoid pinching
the wire harnesses.
66
86
W
ire
Harness
2
5
114
12
11. Loosen the eight indicated screws (A) in the Center
Handlebar (63).
Attach the Center Handlebar (63) to the Upright (2)
with eight M6 x 16mm Tapered Button Screws (107).
Do not tighten the Tapered Button Screws yet.
Retighten the eight screws (A) in the Center
Handlebar (63).
11
63
2
107
107
A
18
10
15
14
20
99
12
13
10. Identify the Left Pedal (13). Attach the Left Pedal to
the left Flex Bar (14) with an M10 x 35mm Carriage
Bolt (20), an M10 W
asher (99), and a Pedal Knob (15)
as shown. Note: The Left Pedal can be attached in
any of five positions (see HOW
TO ADJUST THE
PEDALS on page 11).
Attach the Right Pedal (12) in the same way. Make
sure that both Pedals are in the same position.
See step 7. Tighten the four M8 x 43mm Button Bolts
(50).
