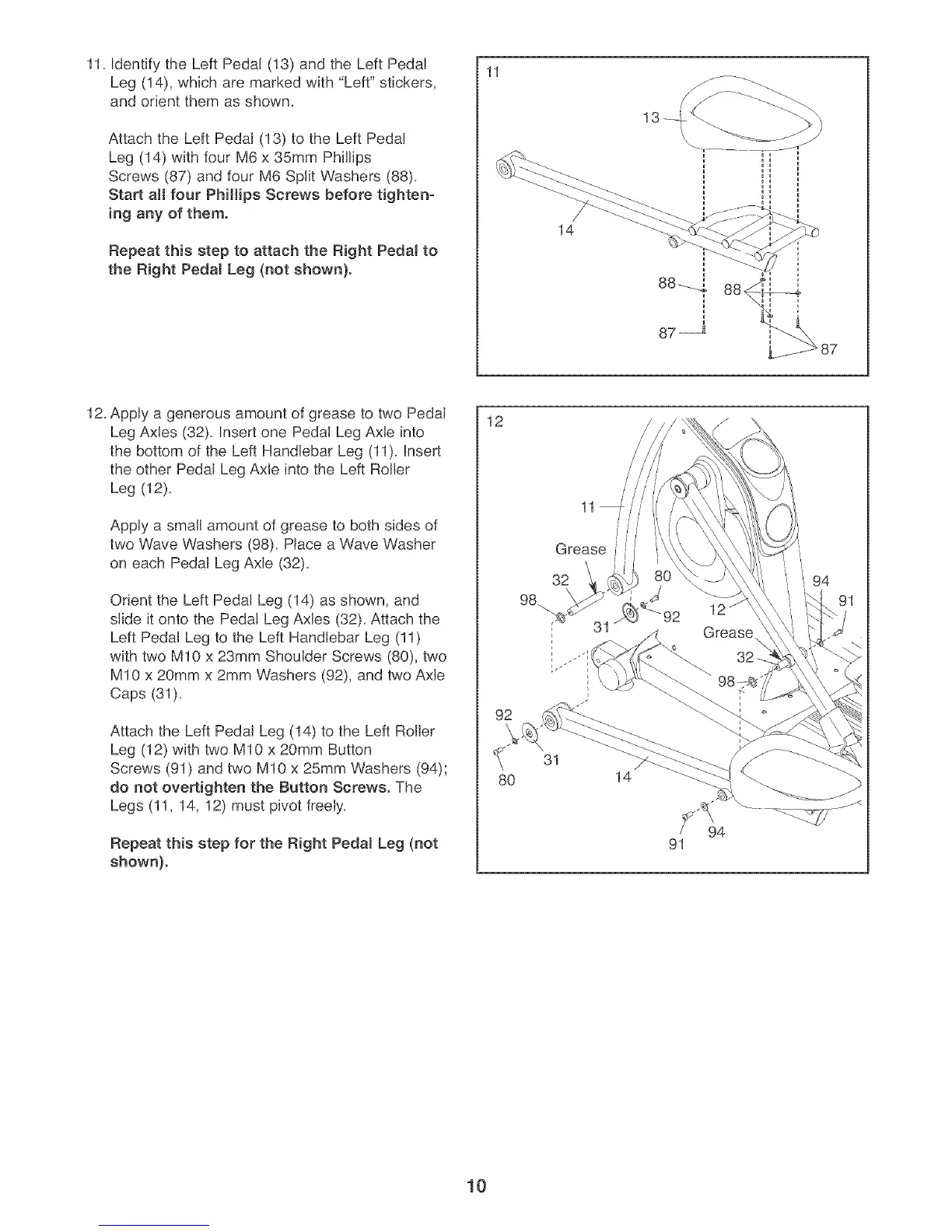

11. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with "Left" stickers,
and orient them as shown.
Attach the Left Pedal (13) to the Left Pedal
Leg (14) with four M6 x 35mm Phillips
Screws (87) and four M6 Split Washers (88).
Start aJJfour Phillips Screws before tighten-
ing any of them.
Repeat this step to attach the Right Pedal to
the Right Pedal Leg (not shown).
11
14
88d
'%87
12. Apply a generous amount of grease to two Pedal
Leg Axles (32). Insert one Pedal Leg Axle into
the bottom of the Left Handlebar Leg (11). Insert
the other Pedal Leg Axle into the Left Roller
Leg (12).
Apply a small amount of grease to both sides of
two Wave Washers (98). Place a Wave Washer
on each Pedal Leg Axle (32).
Orient the Left Pedal Leg (14) as shown, and
slide it onto the Pedal Leg Axles (32). Attach the
Left Pedal Leg to the Left Handlebar Leg (11)
with two M10 x 23mm Shoulder Screws (80), two
M10 x 20mm x 2mm Washers (92), and two Axle
Caps (31).
Attach the Left Pedal Leg (14) to the Left Roller
Leg (12) with two M10 x 20mm Button
Screws (91) and two M10 x 25ram Washers (94);
do not overtighten the Button Screws. The
Legs (11, 14, 12) must pivot freeJy.
Repeat this step for the Right Pedal Leg (not
shown).
12
92
8O
11
Grease
32
98.
31
14
91
94
10
