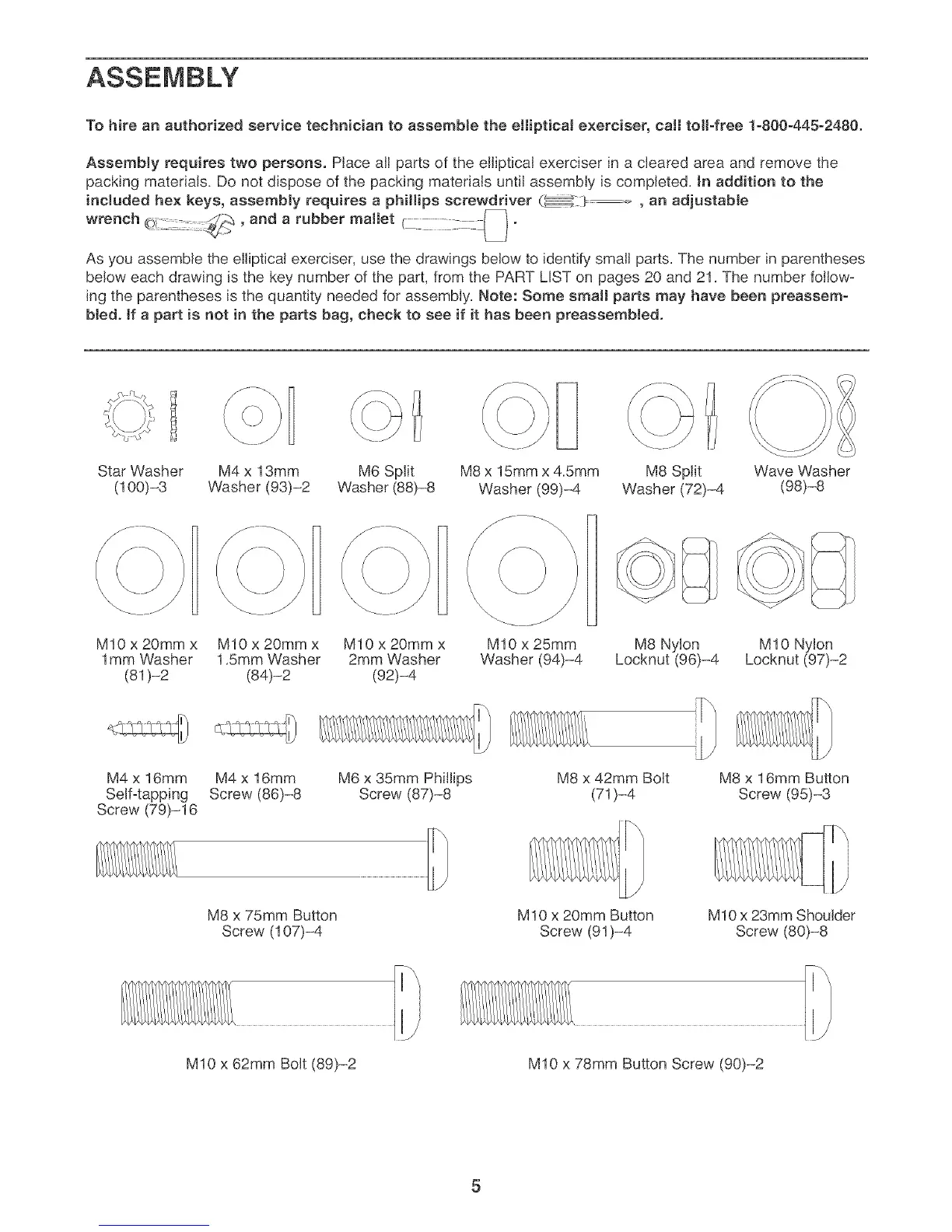

To hire an authorized service technician to assembJe the elliptical exerciser, call toll-free 1-800-445-2480.
AssembJy requires two persons. PJace aJlparts of the eJJipticaJexerciser in a cleared area and remove the
packing matedaJs. Do not dispose of the packing materials until assembly is compJeted, Jnaddition to the
incJuded he× keys, assembly requires a phHJips screwdriver _;I ....... , an adjustable
wrench ,andarubbermaHet _-TI _ -z_(_"
As you assembJe the eJliptical exerciser, use the drawings below to identify smaJl parts, The number in parentheses
beJow each drawing is the key number of the part, from the PART LIST on pages 20 and 21, The number foJJow-
ing the parentheses is the quantity needed for assembly, Note: Some small parts may have been preassem-
bJed. tf a part is not in the parts bag, check to see if it has been preassembted.
Star Washer
(100)-3
MIO x 20mm x
1mm Washer
(81)-2
M4 x 16mm
Self-tapping
Screw (79)-16
H
M4 x 13mm
Washer (93)-2
<>/
MIO x 20mm x
1,5mm Washer
(84)-2
M4 x 16mm
Screw (86)-8
M6 Split
Washer (88)-8
_--_
MIO x 20mm x
2ram Washer
(92)-4
M6 x 35mm Phillips
Screw (87)-8
D
M8 x 15mm x 4,5mm
Washer (99)-4
/ _x\/
L
MIO x 25ram
Washer (94)-4
M8 Split Wave Washer
Washer (72)-4 (98)-8
M8 Nylon MIO Nylon
Locknut (96)-4 Locknut (97)-2
M8 x 42mm Bolt
(71)-4
M8 x 16mm Button
Screw (95)-3
M8 x 75mm Button
Screw (107)-4
MIO x 20mm Button
Screw (91)-4
MIO x 23mm Shoulder
Screw (80)-8
MIO x 62mm Bolt (89)-2 MIO x 78mm Button Screw (90)-2
