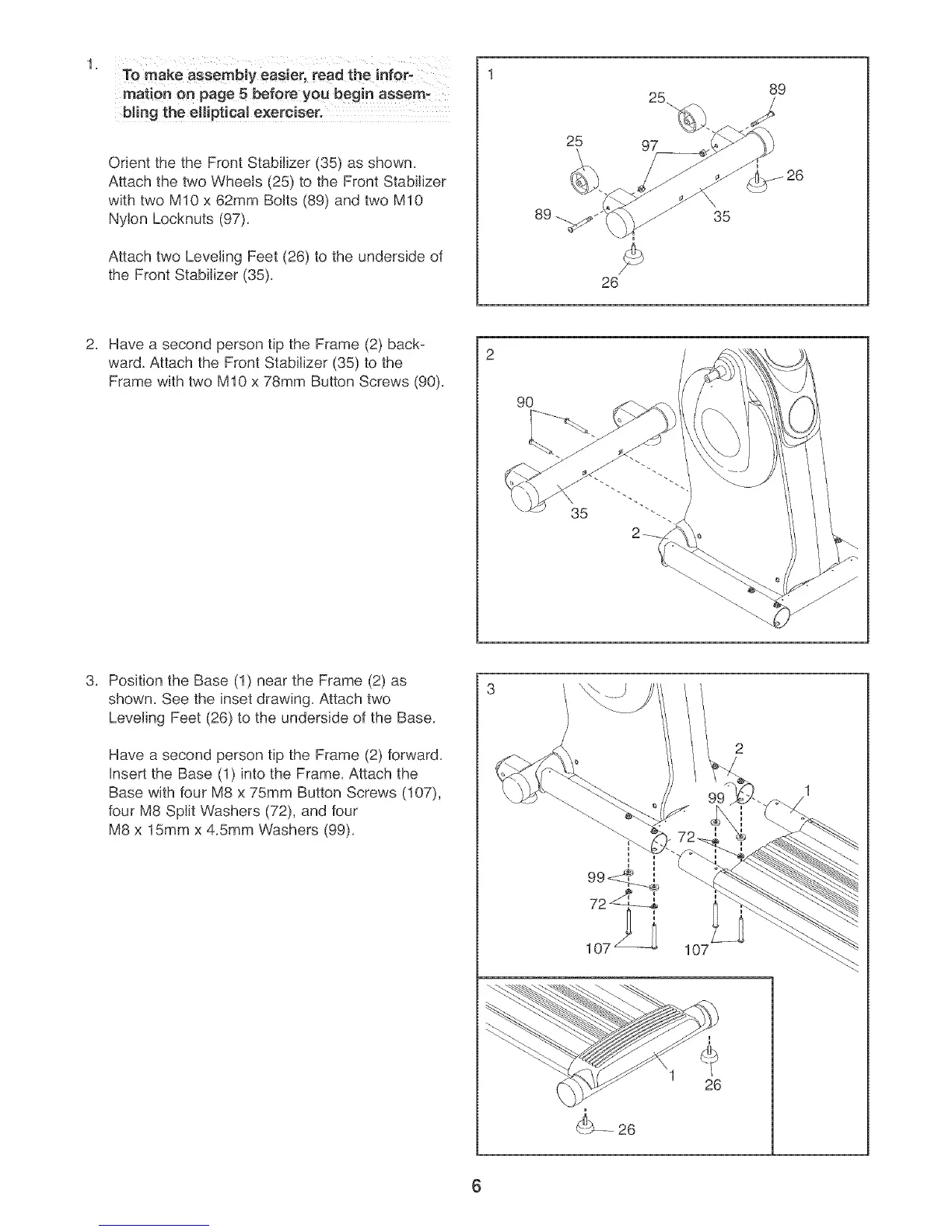

mationon page 5 before YQUbegin assem_
Orient the the Front Stabilizer (35) as shown,
Attach the two Wheels (25) to the Front Stabilizer
with two M10 x 62mm Bolts (89) and two M10
Nylon Locknuts (97),
Attach two Leveling Feet (26) to the underside of
the Front Stabilizer (35),
25
89_
26
\
35
89
Have a second person tip the Frame (2) back-
ward, Attach the Front Stabilizer (35) to the
Frame with two M10 x 78mm Button Screws (90),
2
9O
\
35
Position the Base (1) near the Frame (2) as
shown, See the inset drawing, Attach two
Leveling Feet (26) to the underside of the Base,
Have a second person tip the Frame (2) forward,
Insert the Base (1) into the Frame, Attach the
Base with four M8 x 75mm Button Screws (107),
four M8 Split Washers (72), and four
M8 x 15mm x 4,5mm Washers (99),
3
107 107
6
To Next Page
