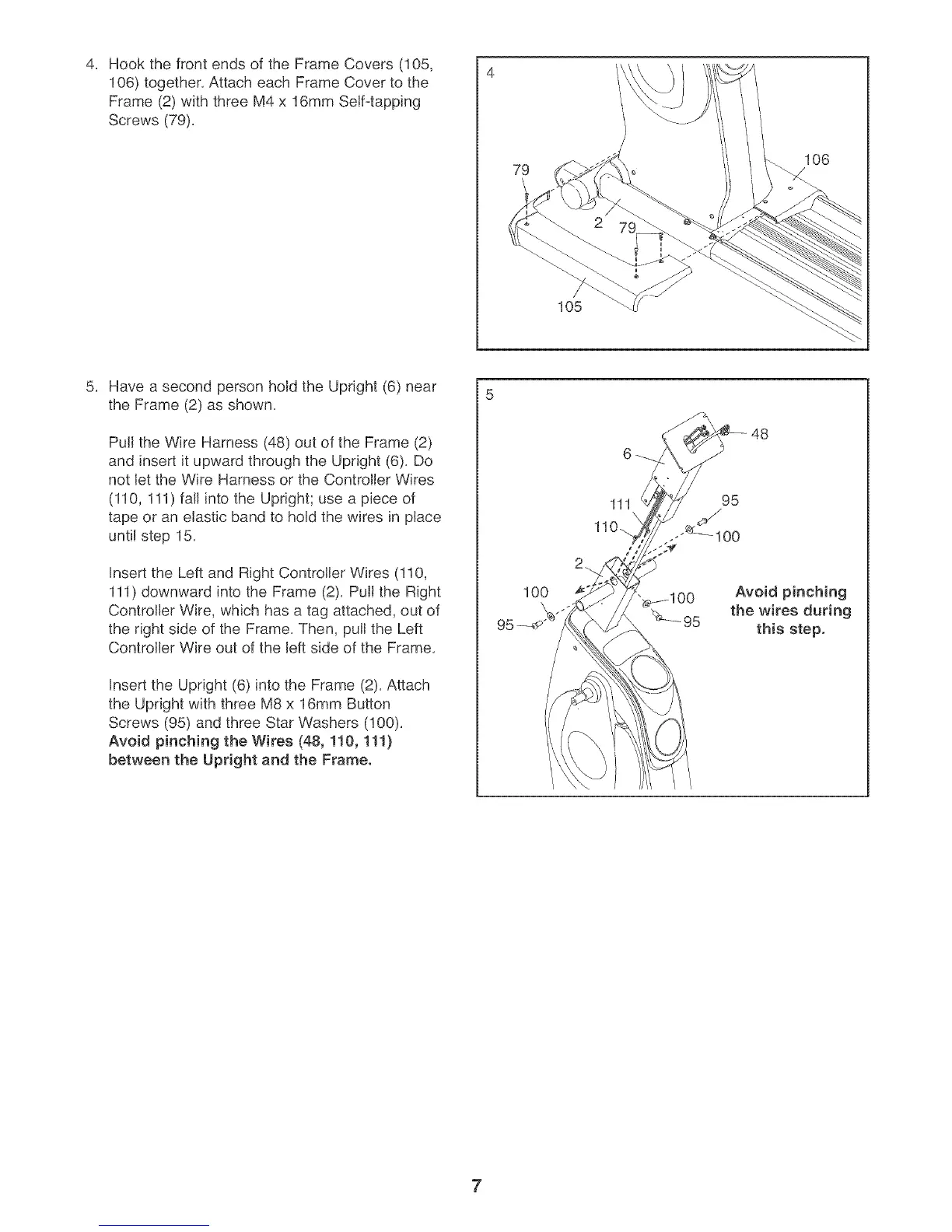

4. 4
Hook the front ends of the Frame Covers (105,
106) together. Attach each Frame Cover to the
Frame (2) with three M4 x 16mm Self-tapping
Screws (79).
79
105
106
Have a second person hoJd the Upright (6) near
the Frame (2) as shown.
Puff the Wire Harness (48) out of the Frame (2)
and insert it upward through the Upright (6). Do
not let the Wire Harness or the ControJJer Wires
(110, 111) falJ into the Upright; use a piece of
tape or an eJastic band to hoJdthe wires in place
untiJ step 15.
Insert the Left and Right ControJJerWires (110,
111) downward into the Frame (2). Puff the Right
Controller Wire, which has a tag attached, out of
the right side of the Frame. Then, pulJ the Left
ControJJer Wire out of the left side of the Frame.
Insert the Upright (6) into the Frame (2). Attach
the Upright with three M8 x 16mm Button
Screws (95) and three Star Washers (100).
Avoid pinching the Wires (48, 110, 111)
between the Upright and the Frame.
IO0
'\
111
11
Avoid pinching
the wires during
this step.
7
To Next Page
