12
16. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking
belt (see page 23). To protect the floor or carpet, place a mat under the treadmill.

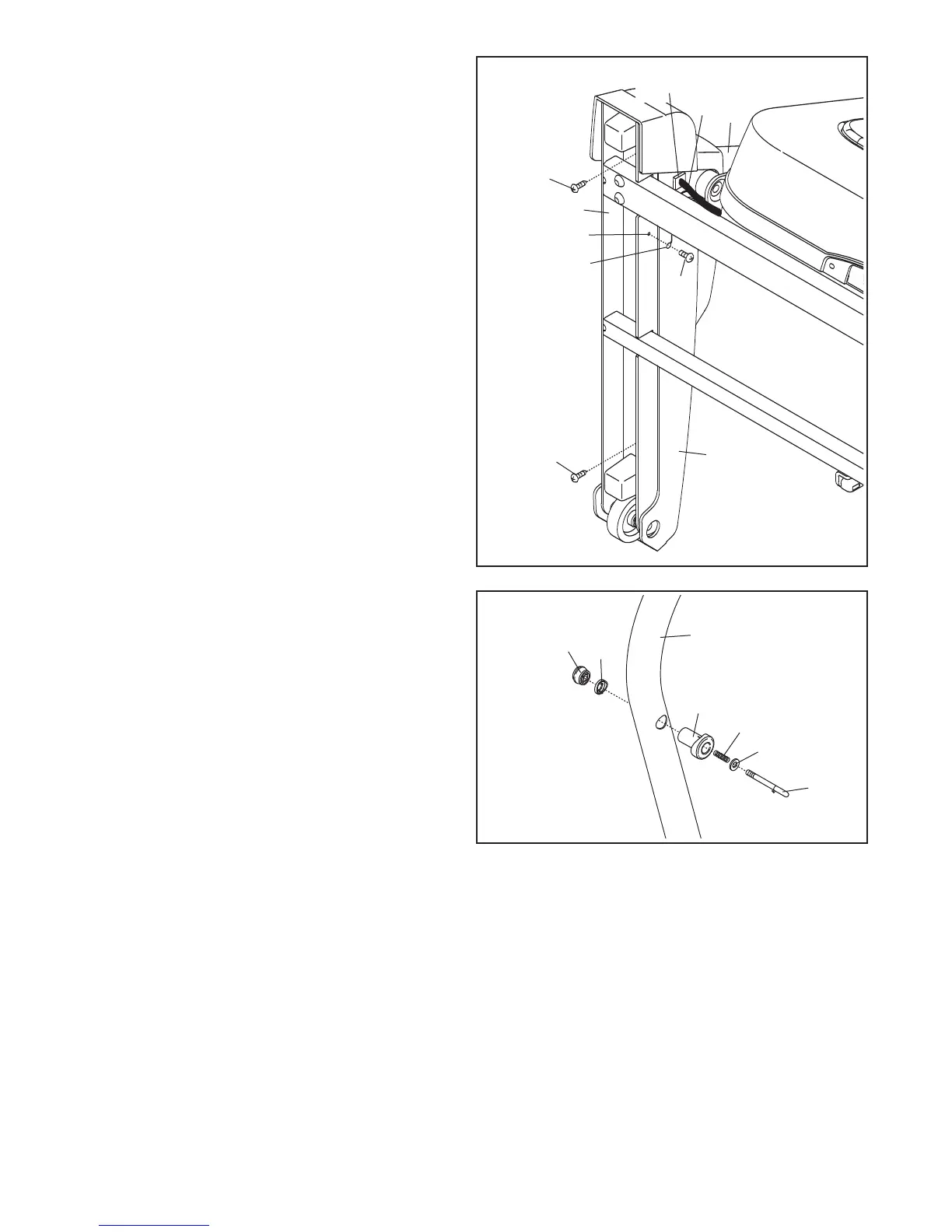

15. Press the Latch Sleeve (30) into the Left Upright
(31).
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin. Insert
the pin into the Latch Sleeve (30) and the Left
Upright (31). Press the Latch Insert (89) into the
other side of the Left Upright, and then tighten
the knob back onto the pin.
Remove the plastic packaging from the bottom of
the treadmill.
15
31
89
30
Knob
Spring
Collar
Pin
14. Attach the ground wire on the Upright Wire (28)
to the indicated hole in the Base (48) with an
M
4.2 x 10mm Screw (11).
T
hen, press the indicated Grommet (54) into the
Right Upright (36).
Attach the Right Base Cover (91) to the Base
(48) with two 3/4" Screws (2). Note: Start both
3/4" Screws before tightening them. Attach the
Left Base Cover (not shown) in the same way.
Raise the Uprights (31, 36) to a vertical position.
48
28
36
2
2
91
1
4
11
Ground
Wire
54
Hole
To Next Page
