ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the walking belt is coated
with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the
walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , scissors , and needlenose pliers .

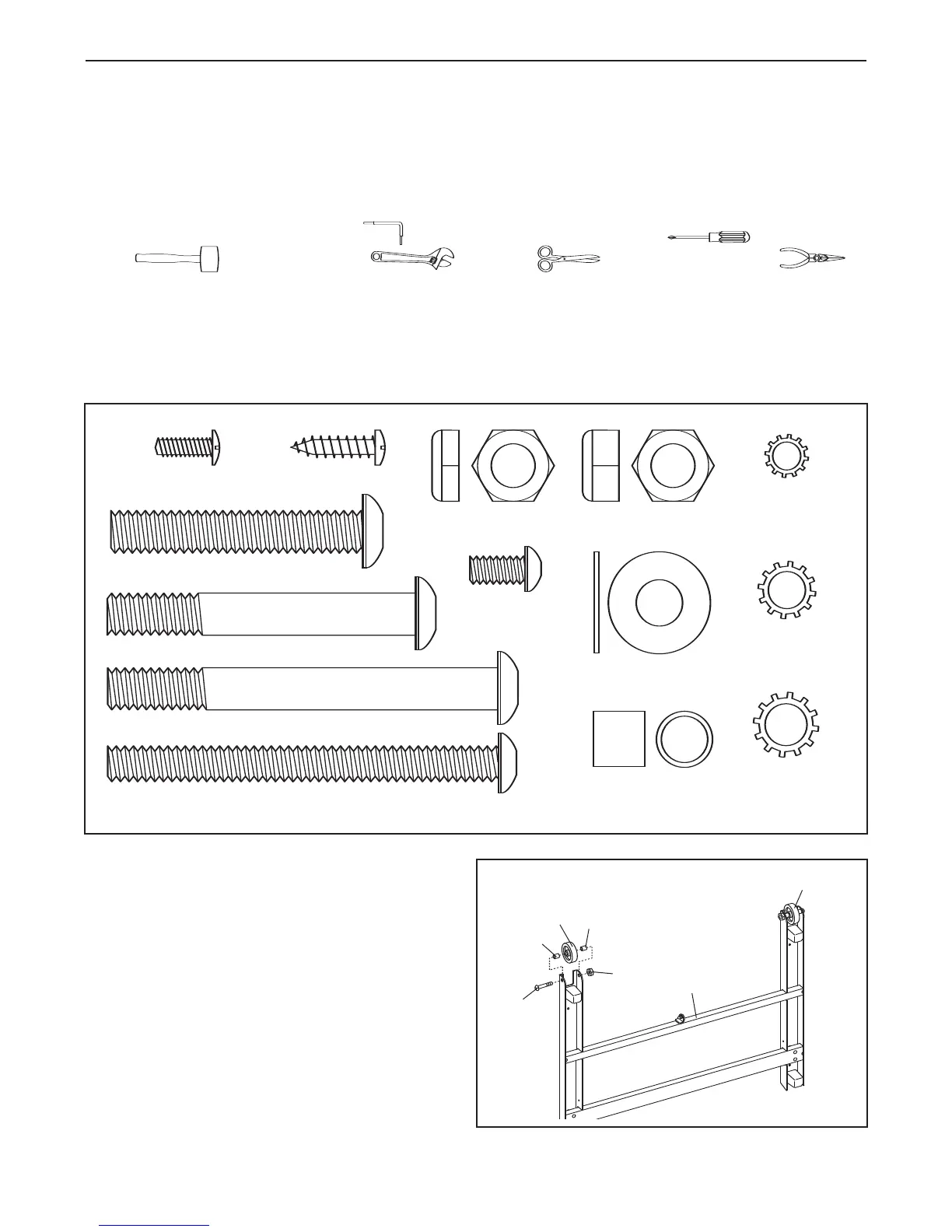

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly.
Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. Extra hardware may be included. To avoid damaging plastic parts, do
not use power tools for assembly.
1/2” Screw (119)–1
3
/4” Tek Screw (58)–8
1
3/8" Lock Nut
(47)–2
3/4" Screw (2)–10
3/8" Washer
(33)–2
M4.2 x 13mm
Screw (11)–2
Wheel Spacer
(44)–4
1/4" x 1/2" Bolt
(22)–2
3/8" x 2 1/4" Bolt (27)–4
1/4" Star Washer
(21)–2
3/8" Nut (35)–2
3/8" x 2 3/4" Bolt (14)–2
3/8" x 3 1/2" Bolt (32)–2
Wheel Bolt (14)–2
Frame Bolt (32)–2
3/8" Star Washer
(39)–4
F
5/16" x 3 1/2" Bolt (20)–4
5/16" Star Washer
(19)–4
1 1/2" Screw (97)–4
1. Attach a Wheel (45) to one side of the Base (48)
with a 3/8" x 2 3/4" Bolt (14), two Wheel Spacers
(44), and a 3/8" Nut (35) as shown. Do not
overtighten the Nut; the Wheel should turn
freely.
Attach the other Wheel (45) to the other side
of the Base (48) in the same way.
1
6
48
45
45
44
44
14
35
