ProForm 3.9 Xm Treadmill User Manual

7

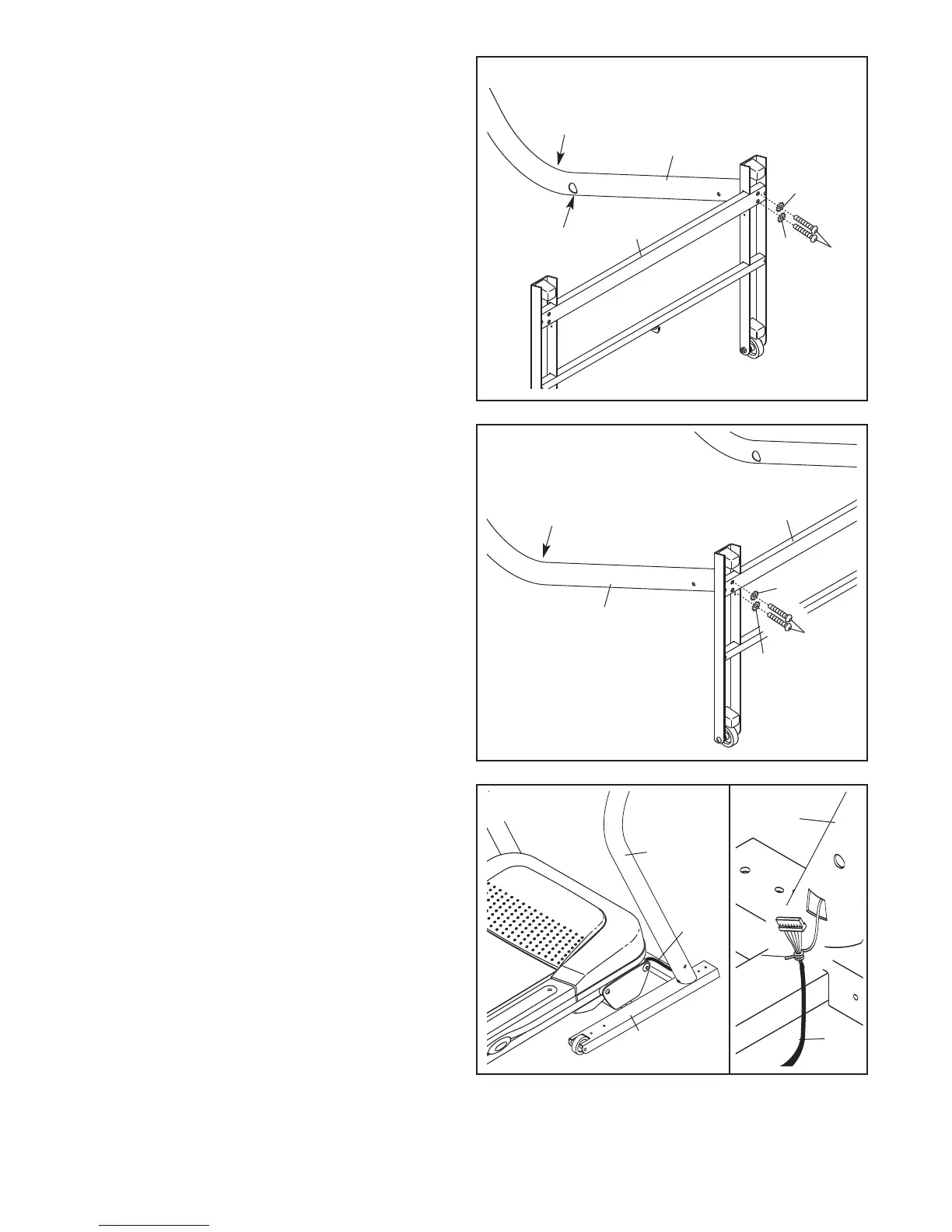

3. Orient the Right Upright (36) as shown, and at-
tach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (27) and two 3/8" Star Washers (39); do
not tighten the Bolts yet.
48
36
39
39
27
3
4. Set the Base (48) near the front of the treadmil.
Cut the tie (not shown) securing the Upright Wire
(28) in a bundle. Discard the tie.
Locate the long tie in the Right Upright (36).
Wrap the tie securely around the connector on
the Upright Wire (28), and insert the connector
into the large hole in the Right Upright. Then,
pull the opposite end of the tie until the Upright
Wire is pulled through the Right Upright.
2. Have a second person orient the Base (48) as
shown.
Identify the Left Upright (31), which has a large
h
ole near the bend.
Orient the Left Upright (31) as shown, and at-
tach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (27) and two 3/8" Star Washers (39);
do
not tighten the Bolts yet.
48
27
39
39
3
1
Bend
Large Hole
Bend
2
48
36
4
Tie
28
36
28
