ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
s
mall amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , rubber
mallet , and adjustable spanner .

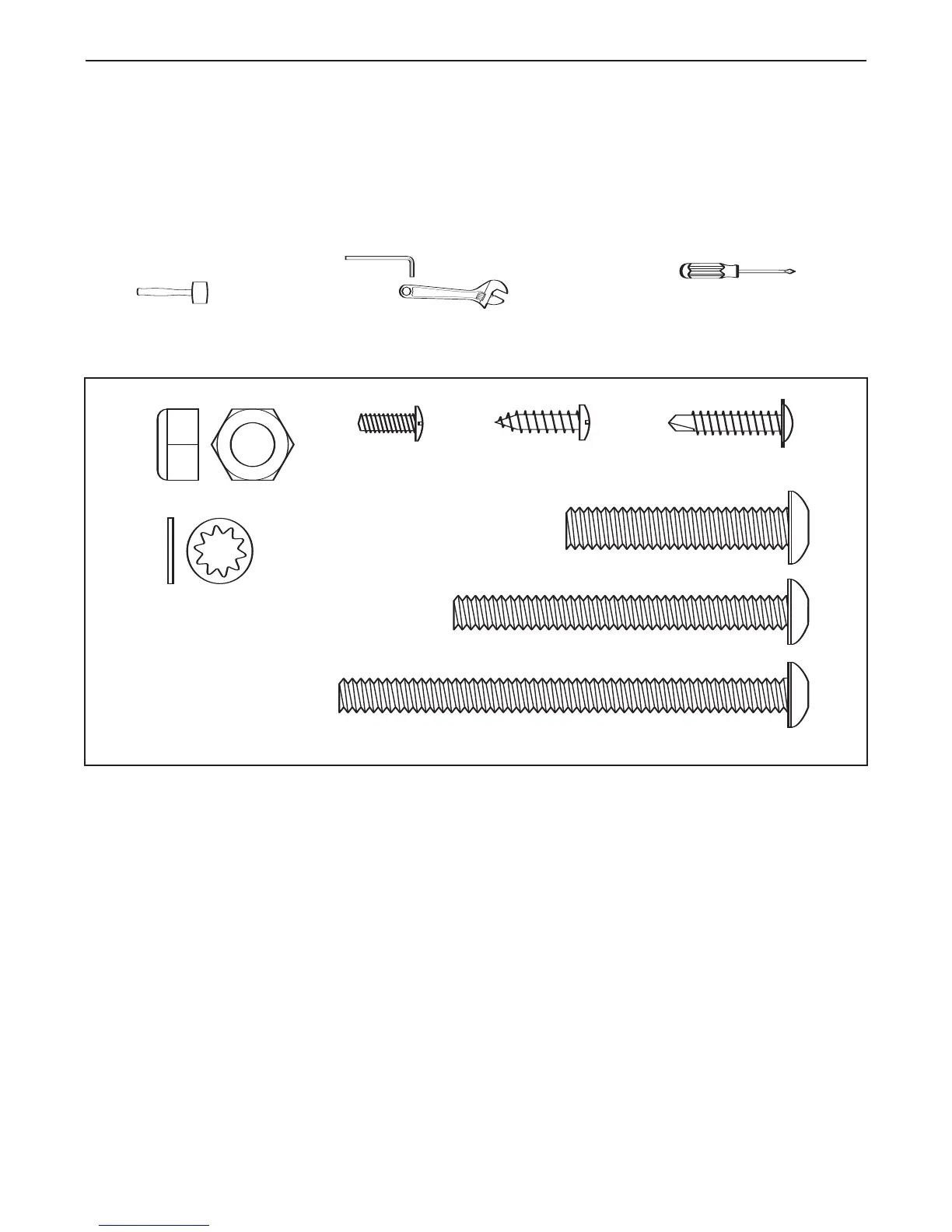

For help identifying assembly hardware, see the drawings below. If a part is not in the parts bag, first check
to see if it has been preassembled.
1
/2” Screw (119)–1
1
3/4” Screw (2)–9
Wheel Nut (32)–2
3/4” Tek Screw (58)–8
1
2” Bolt (64)–2
Silver Ground
Screw (75)–1
1” Tek
Screw (39)–6
3” Bolt (37)–2
3
1
/2” Screw (48)–6
5/16” Star
Washer (97)–2
4” Bolt (98)–2
3
To Next Page
