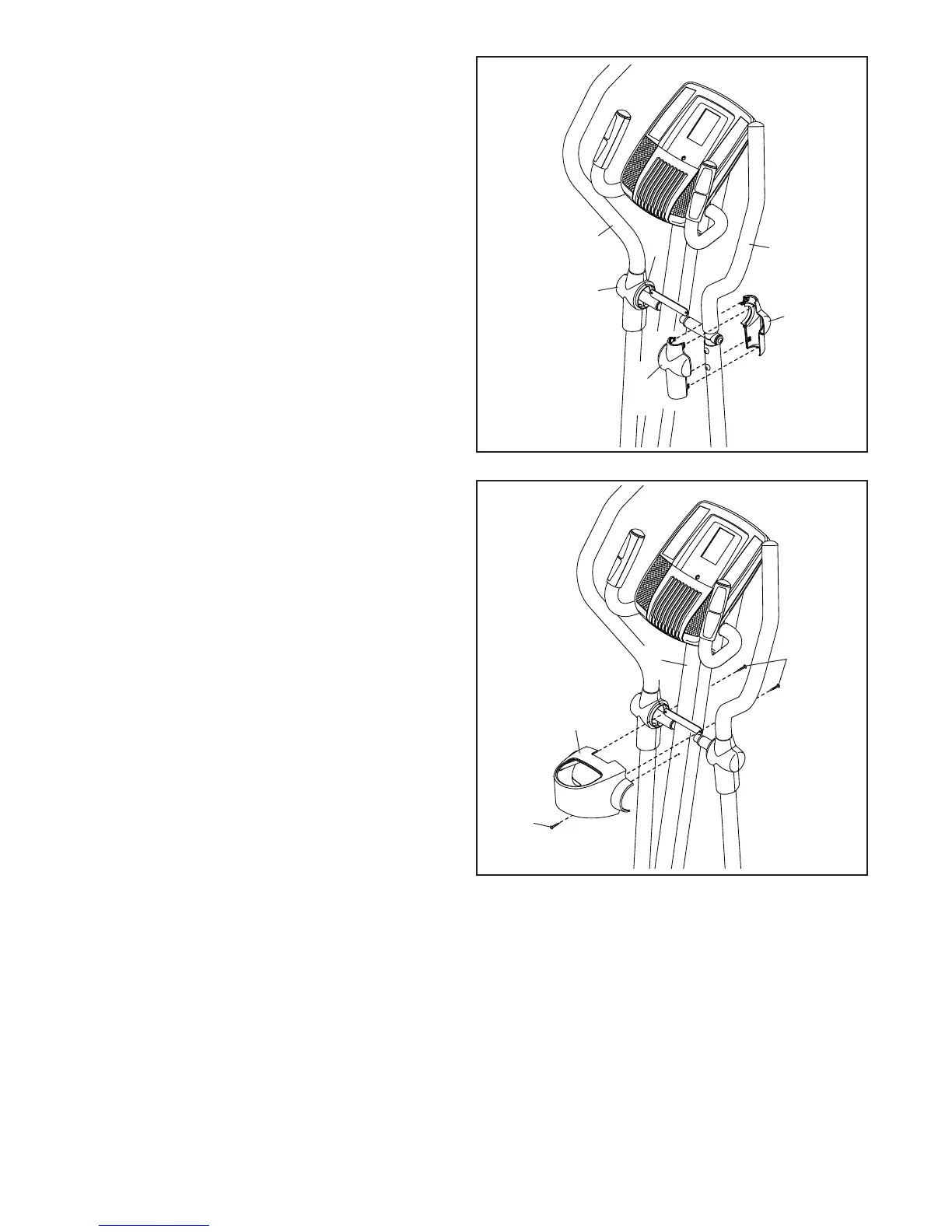

13. Identify a Pivot Cover A (19), which has hooks,
and a Pivot Cover B (22), which has tabs.
Attach a Pivot Cover A (19) and a Pivot Cover
B (22) around the Right Upper Body Arm (9) by
pressing the hooks on the Pivot Cover A onto the
tabs on the Pivot Cover B.
Repeat this step on the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
14. Orient the Rear Upright Cover (3) as shown.
Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (92).
9
22
92
92
3
22
8
19
19
2
