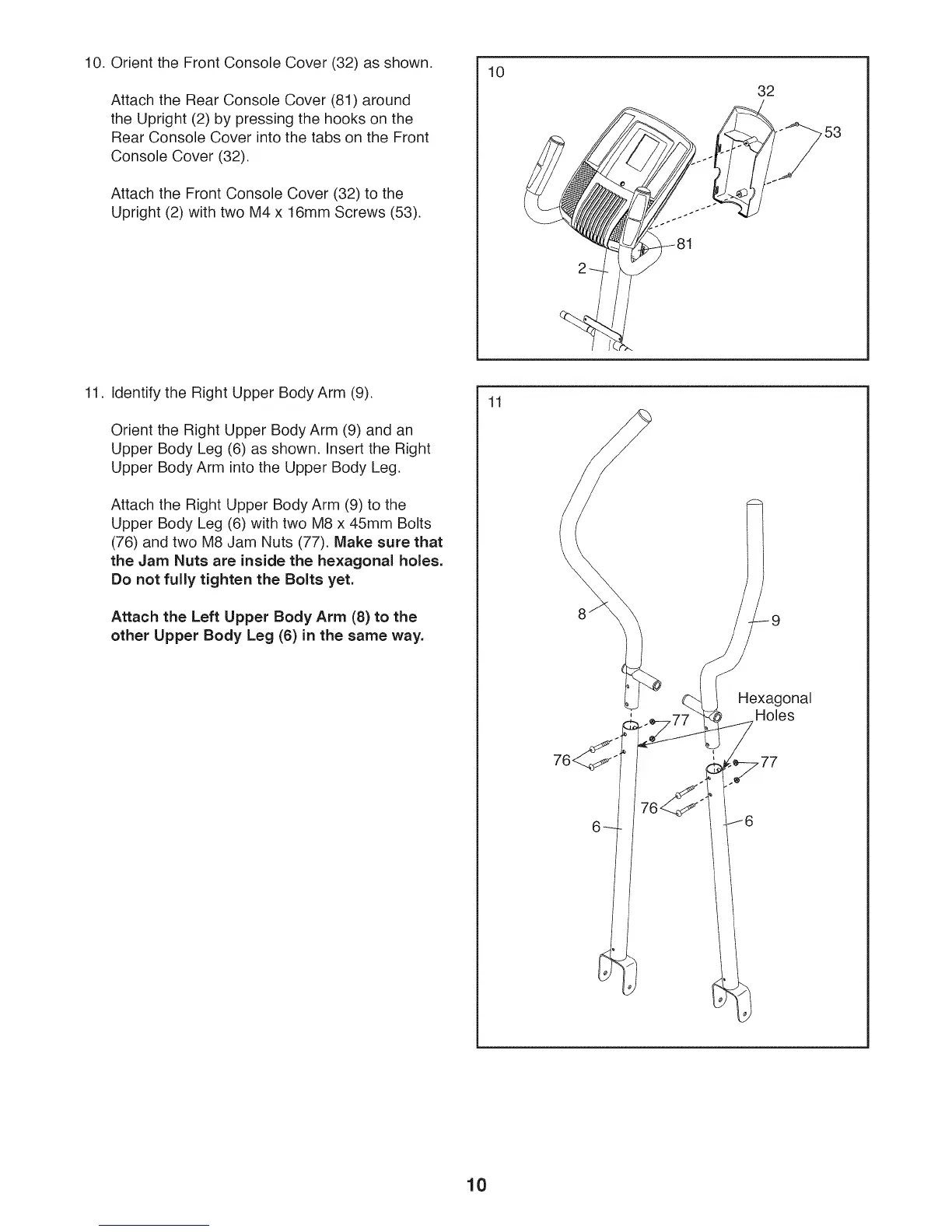

10. Orient the Front Console Cover (32) as shown.
Attach the Rear Console Cover (81) around
the Upright (2) by pressing the hooks on the
Rear Console Cover into the tabs on the Front
Console Cover (32).
Attach the Front Console Cover (32) to the
Upright (2) with two M4 x 16mm Screws (53).
10
32
11. Identify the Right Upper Body Arm (9).
Orient the Right Upper Body Arm (9) and an
Upper Body Leg (6) as shown. Insert the Right
Upper Body Arm into the Upper Body Leg.
Attach the Right Upper Body Arm (9) to the
Upper Body Leg (6) with two M8 x 45mm Bolts
(76) and two M8 Jam Nuts (77). Make sure that
the Jam Nuts are inside the hexagonal holes.
Do not fully tighten the Bolts yet.
Attach the Left Upper Body Arm (8) to the
other Upper Body Leg (6) in the same way.
11
Hexagonal
Holes
10
To Next Page
