ProForm 395E User Manual

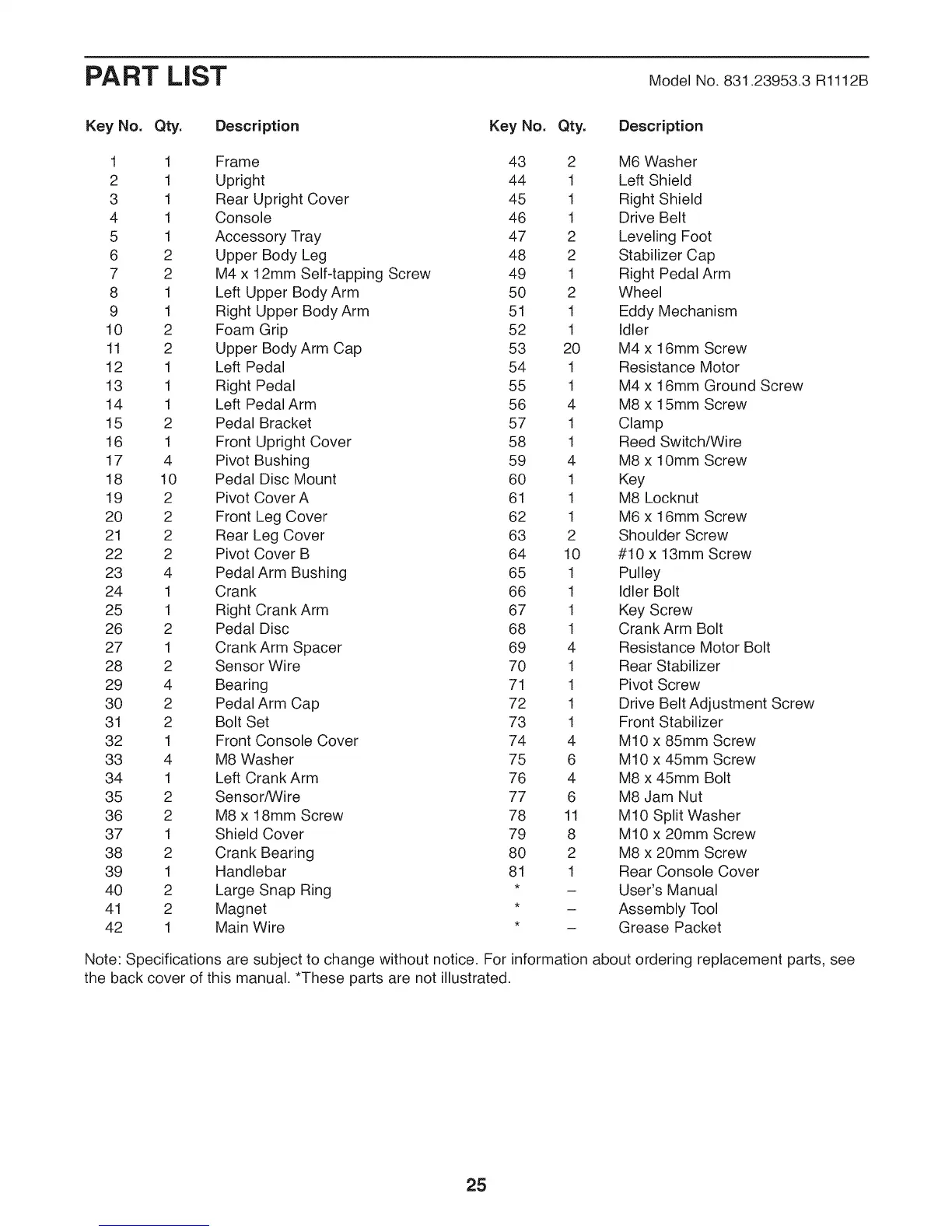

PART LIST Model No. 831.23953.3 Rll12B
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 43 2 M6 Washer
2 1 Upright 44 1 Left Shield
3 1 Rear Upright Cover 45 1 Right Shield
4 1 Console 46 1 Drive Belt
5 1 Accessory Tray 47 2 Leveling Foot
6 2 Upper Body Leg 48 2 Stabilizer Cap
7 2 M4 x 12mm Self-tapping Screw 49 1 Right Pedal Arm
8 1 Left Upper Body Arm 50 2 Wheel
9 1 Right Upper Body Arm 51 1 Eddy Mechanism
10 2 Foam Grip 52 1 idler
11 2 Upper Body Arm Cap 53 20 M4 x 16mm Screw
12 1 Left Pedal 54 1 Resistance Motor
13 1 Right Pedal 55 1 M4 x 16mm Ground Screw
14 1 Left Pedal Arm 56 4 M8 x 15mm Screw
15 2 Pedal Bracket 57 1 Clamp
16 1 Front Upright Cover 58 1 Reed Switch/Wire
17 4 Pivot Bushing 59 4 M8 x 10mm Screw
18 10 Pedal Disc Mount 60 1 Key
19 2 Pivot Cover A 61 1 M8 Locknut
20 2 Front Leg Cover 62 1 M6 x 16mm Screw
21 2 Rear Leg Cover 63 2 Shoulder Screw
22 2 Pivot Cover B 64 10 #10 x 13mm Screw
23 4 Pedal Arm Bushing 65 1 Pulley
24 1 Crank 66 1 idler Bolt
25 1 Right Crank Arm 67 1 Key Screw
26 2 Pedal Disc 68 1 Crank Arm Bolt
27 1 Crank Arm Spacer 69 4 Resistance Motor Bolt
28 2 Sensor Wire 70 1 Rear Stabilizer
29 4 Bearing 71 1 Pivot Screw
30 2 Pedal Arm Cap 72 1 Drive Belt Adjustment Screw
31 2 Bolt Set 73 1 Front Stabilizer
32 1 Front Console Cover 74 4 M10 x 85mm Screw
33 4 M8 Washer 75 6 M10 x 45mm Screw
34 1 Left Crank Arm 76 4 M8 x 45mm Bolt
35 2 Sensor/Wire 77 6 M8 Jam Nut
36 2 M8 x 18mm Screw 78 11 M10 Split Washer
37 1 Shield Cover 79 8 M10 x 20mm Screw
38 2 Crank Bearing 80 2 M8 x 20mm Screw
39 1 Handlebar 81 1 Rear Console Cover
40 2 Large Snap Ring * - User's Manual
41 2 Magnet * - Assembly Tool
42 1 Main Wire * - Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
