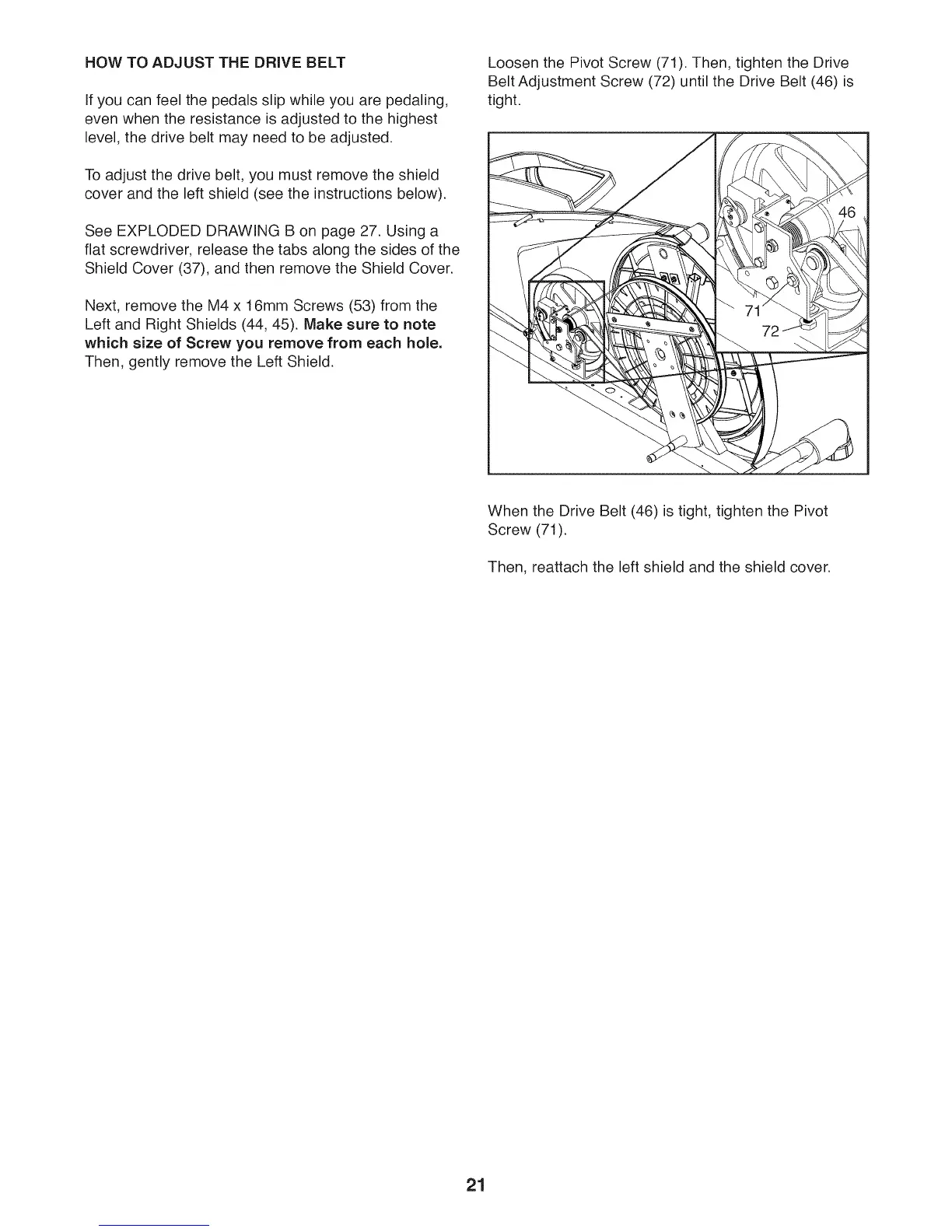

HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must remove the shield
cover and the left shield (see the instructions below).
See EXPLODED DRAWING B on page 27. Using a
flat screwdriver, release the tabs along the sides of the
Shield Cover (37), and then remove the Shield Cover.
Next, remove the M4 x 16mm Screws (53) from the
Left and Right Shields (44, 45). Make sure to note
which size of Screw you remove from each hole.
Then, gently remove the Left Shield.
Loosen the Pivot Screw (71). Then, tighten the Drive
Belt Adjustment Screw (72) until the Drive Belt (46) is
tight.
When the Drive Belt (46) is tight, tighten the Pivot
Screw (71).
Then, reattach the left shield and the shield cover.
