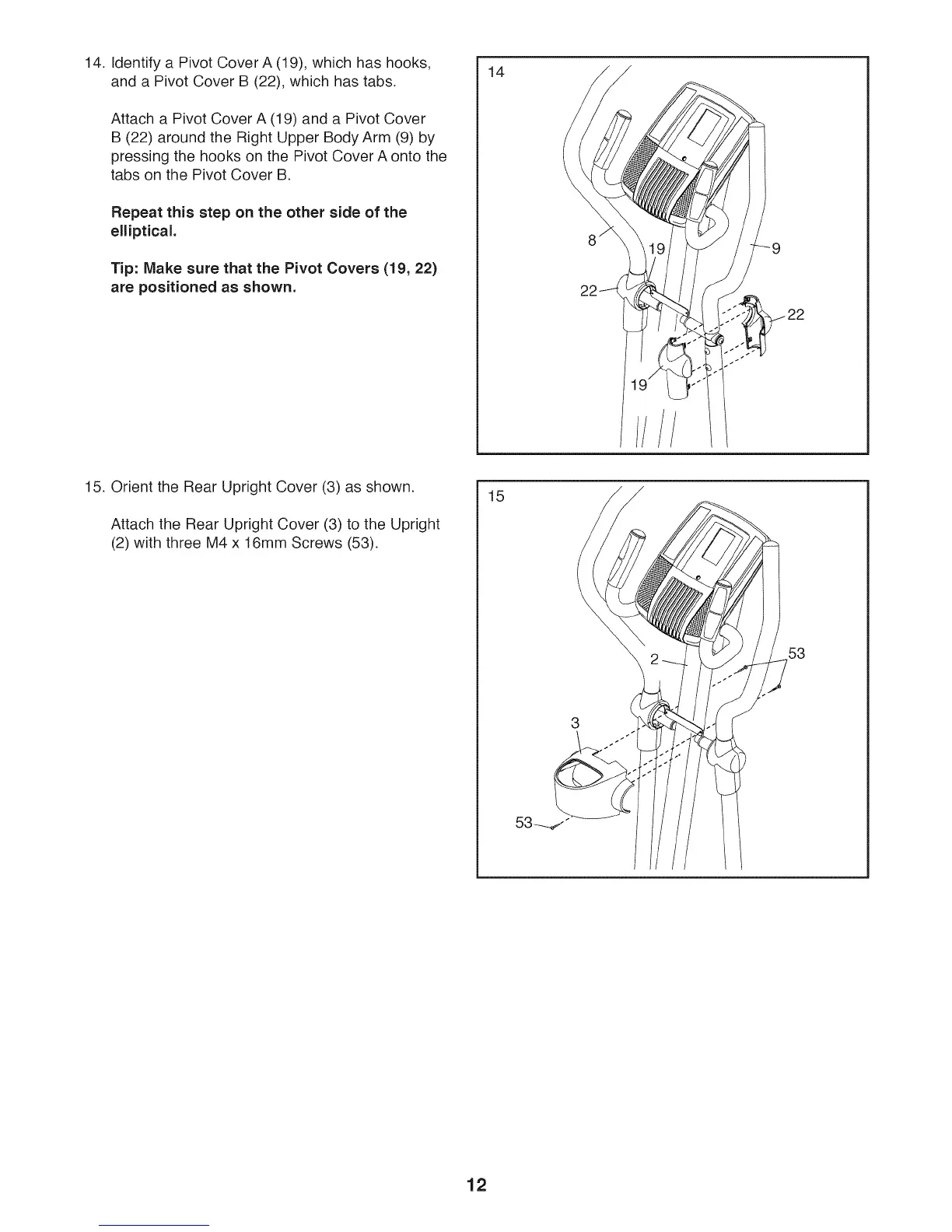

14. Identify a Pivot Cover A (19), which has hooks,
and a Pivot Cover B (22), which has tabs.
Attach a Pivot Cover A (19) and a Pivot Cover
B (22) around the Right Upper Body Arm (9) by
pressing the hooks on the Pivot Cover A onto the
tabs on the Pivot Cover B.
Repeat this step on the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
14
224
//
//
15. Orient the Rear Upright Cover (3) as shown.
Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (53).
15
53
12
To Next Page
