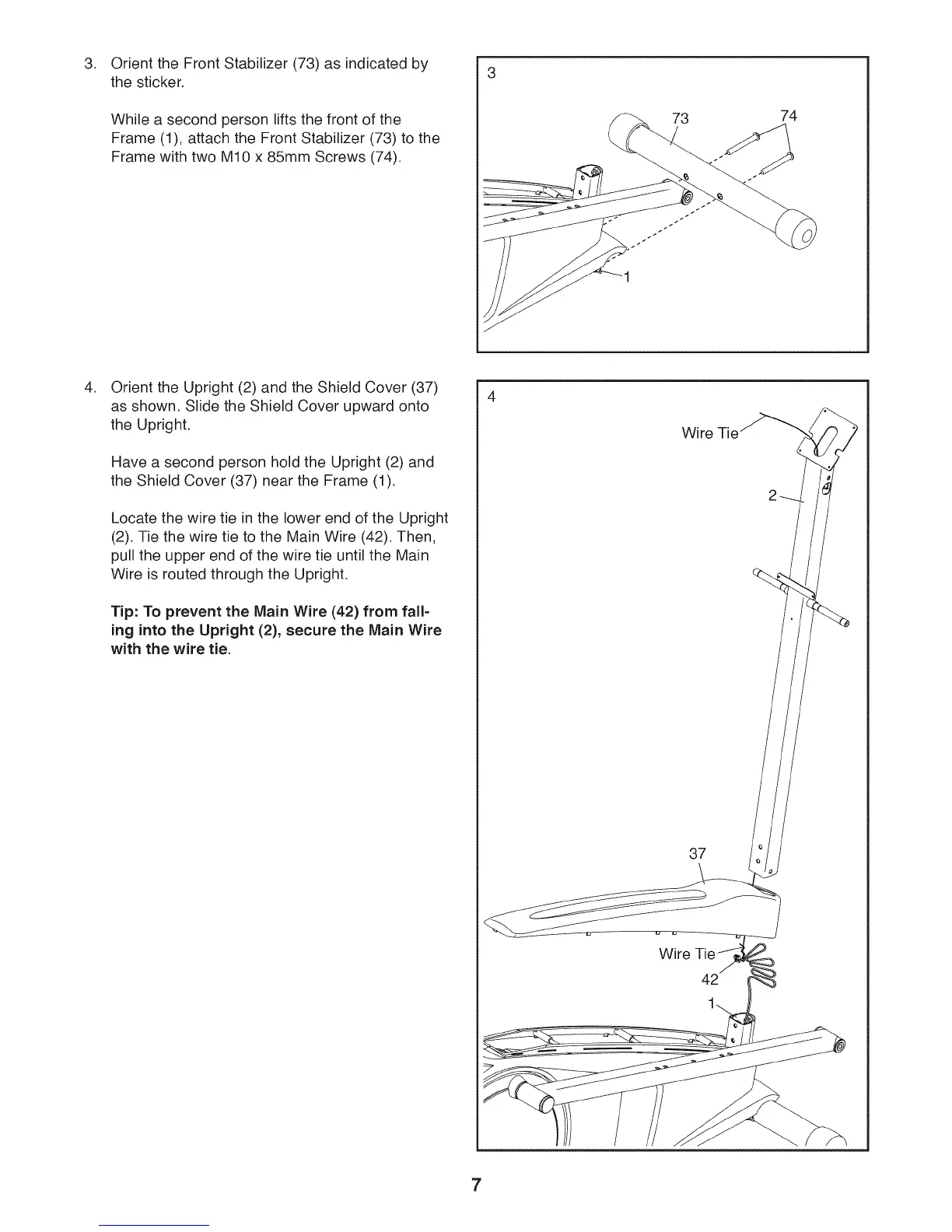

3. 3
Orient the Front Stabilizer (73) as indicated by
the sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two MIO x 85mm Screws (74).
73
74
.
Orient the Upright (2) and the Shield Cover (37)
as shown. Slide the Shield Cover upward onto
the Upright.
Have a second person hold the Upright (2) and
the Shield Cover (37) near the Frame (1).
Locate the wire tie in the lower end of the Upright
(2). Tie the wire tie to the Main Wire (42). Then,
pull the upper end of the wire tie until the Main
Wire is routed through the Upright.
Tip: To prevent the Main Wire (42) from fall=
ing into the Upright (2), secure the Main Wire
with the wire tie.
Wire Tie
37
Wire
42
7
To Next Page
