8

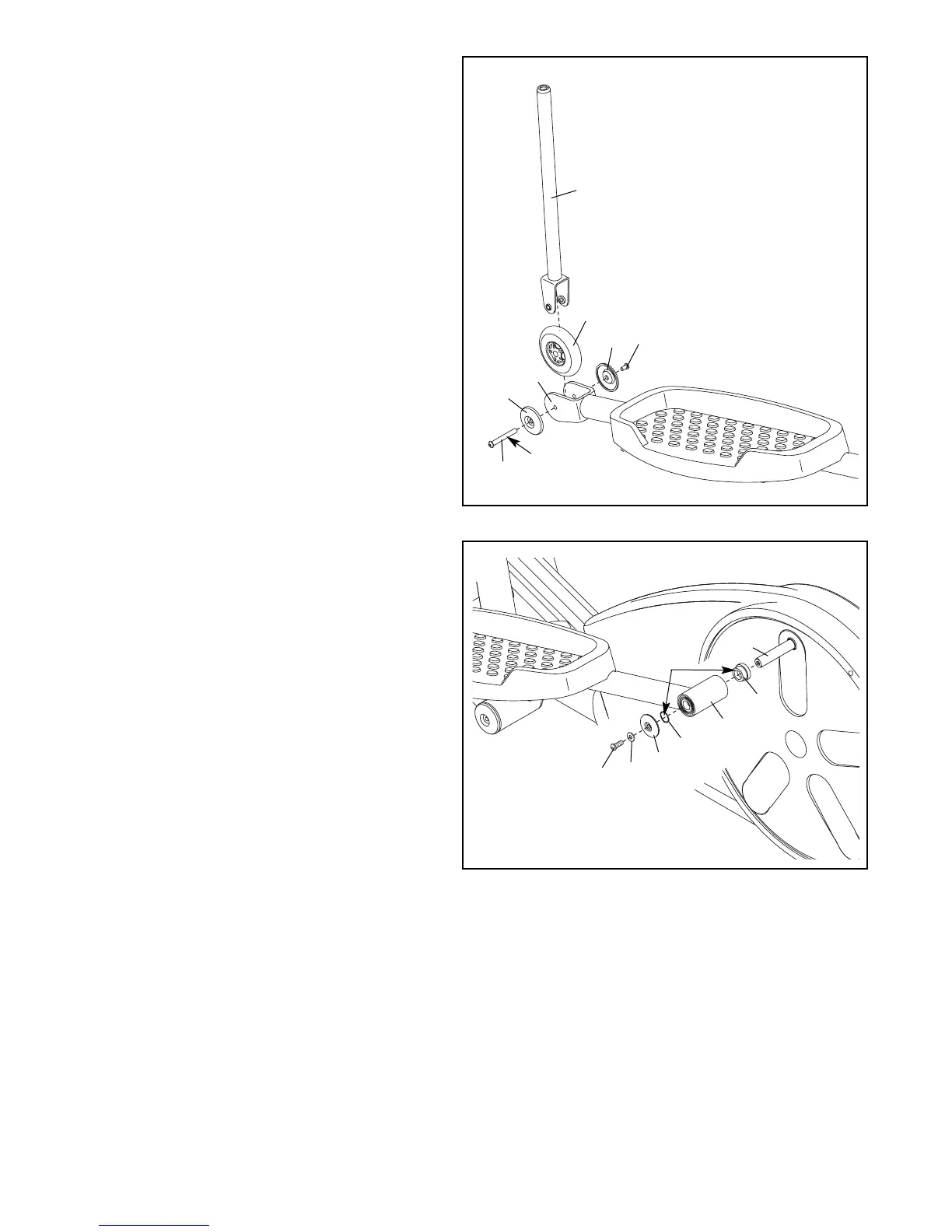

6. Apply a small amount of grease to a Crank
Arm Spacer (45). Orient the Crank Arm
Spacer so that the flange is on the side
shown, and slide it onto the Left Crank Arm
(42). Then, slide the Left Pedal Arm (21) onto
the Left Crank Arm.
Apply a small amount of grease to a Large
Wave Washer (20) and press it against the
Left Pedal Arm (21). Then, tighten an
M8 x 25mm Patch Screw (70), with an M8
Washer (64) and a Pedal Leg Cover (23), into
the end of the Left Crank Arm (42).
Repeat this step for the Right Pedal Arm
and the Right Crank Arm (not shown).
6
70
42
21
45
20
23
64
Grease
5. Orient an Upper Body Leg (6) and a Ramp
Wheel (24) as shown. Apply a small amount
of grease to the barrel of an M8 x 63mm Bolt
Set (67). Attach the Upper Body Leg and the
Ramp Wheel to the Left Pedal Arm (21) with
the Bolt Set and two Wheel Covers (11).
Repeat this step for the Right Pedal Arm
(not shown).
6
24
5
11
67
11
21
Grease
67
To Next Page
