12
14. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x 3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
See steps 4 and 6. Tighten the 3/8" x 4"
Screws (7) and the 3/8" x 1 1/2" Screws (3).
14
85
84
1
1
80
Console
Assembly

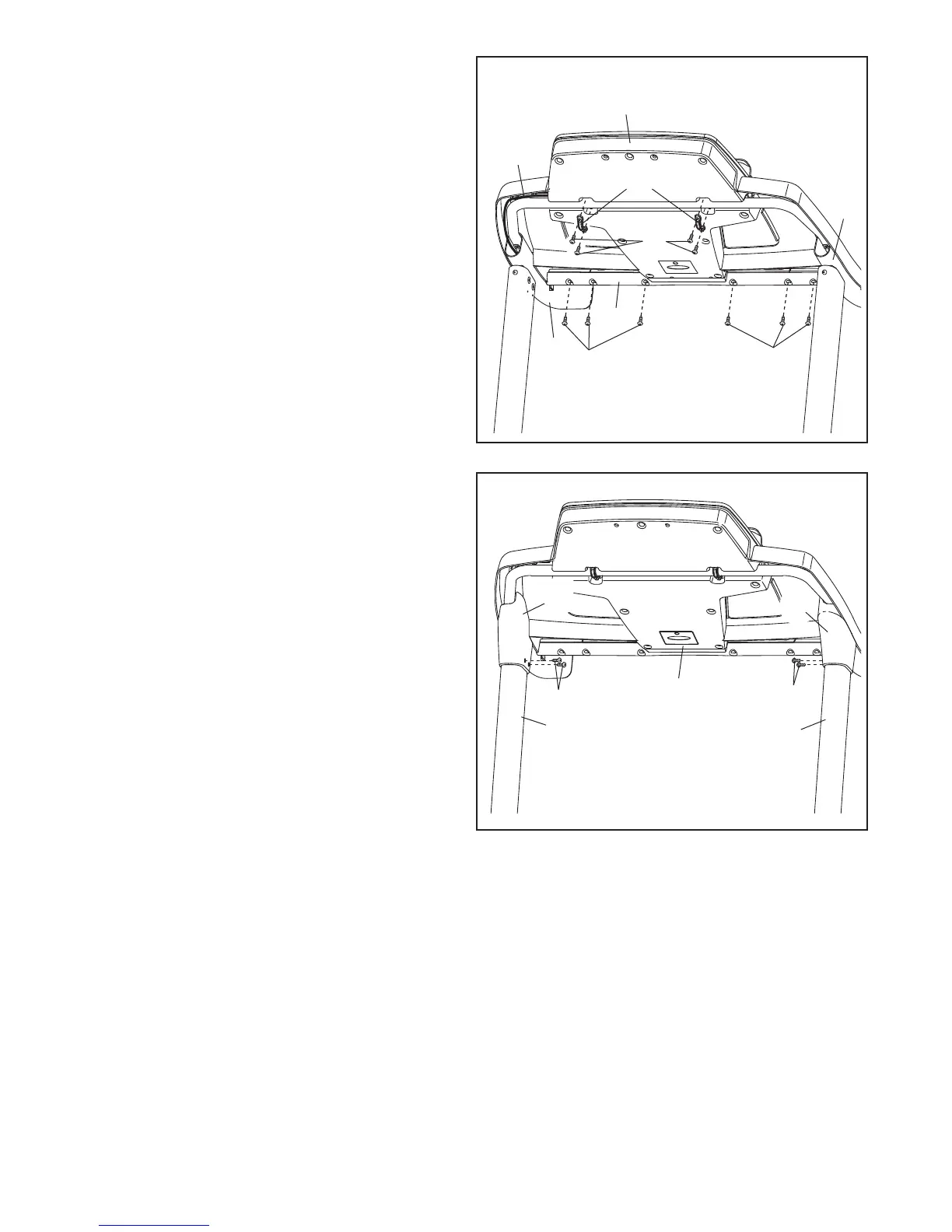

13. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires. Insert the excess Upright Wire (87) into
the Right Handrail.
Attach the console assembly to the Crossbar
(107) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
13
83
105
53
8
7
1
1
Console
Assembly
82
107
86
To Next Page
