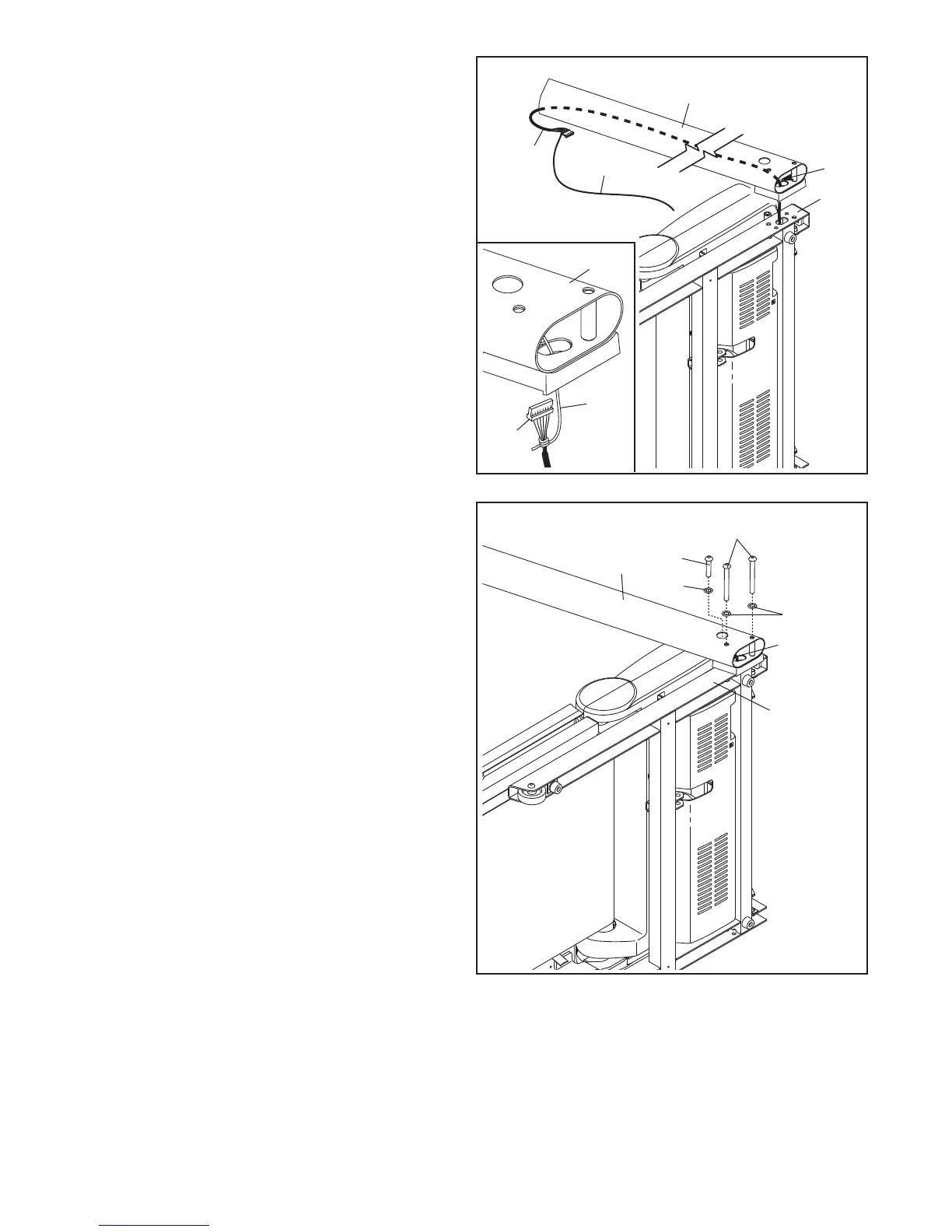

4. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright Wire
(87). Insert two 3/8" x 4" Screws (7) and a 3/8" x
1 1/2" Screw (3) with three 3/8" Star Washers
(11) into the Right Upright.
Partially tighten the 3/8" x 4" Screws (7) until the
heads of the Screws touch the Right Upright
(85), and then partially tighten the 3/8" x 1 1/2"
Screw (3). Do not fully tighten the Screws
yet.
95
85
87
11
11
3
7
4
3
. Identify the Right Upright (85), which is marked
“Right.” Hold the Right Upright near the Base
(95) as shown.
S
ee the inset drawing. Tie the wire tie in the
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
of the wire tie until the Upright Wire is routed
t
hrough the Right Upright.
Wire Tie
87
85
95
87
3
Wire
Tie
85
87
