ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons.
Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
rubber mallet , and adjustable wrench .

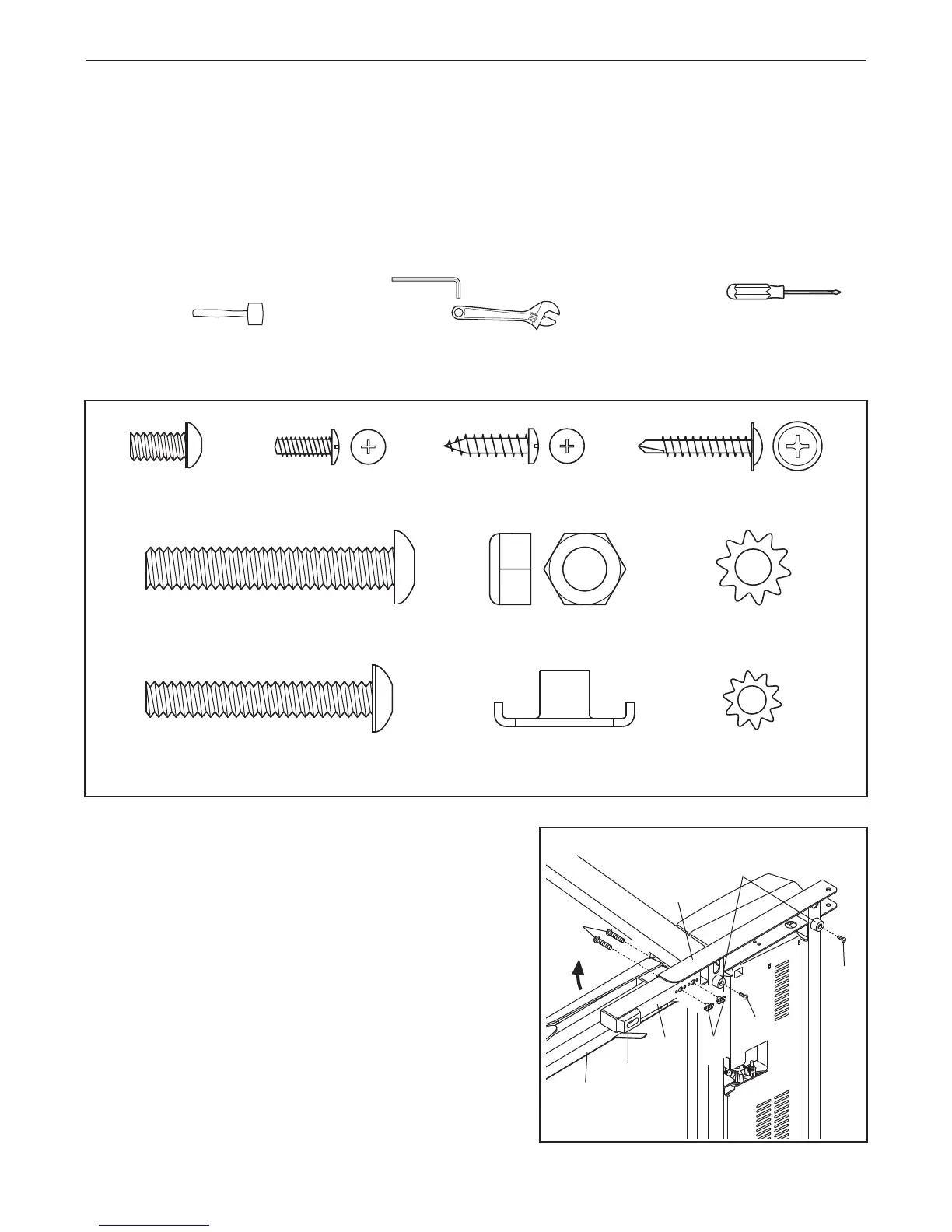

For help identifying the assembly hardware, see the drawings below.
If a part is not in the parts bag, check
to see if it has been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Wheel Nut (32)–2
1” Tek Screw (39)–4
Extension Leg
Nut (46)–4
3/4” Screw (2)–6
1/4” Star Washer
(96)–2
Leg/Handrail Bolt (93)–8
Silver Ground
Screw (75)–1
Console
Bolt (90)–2
Wheel Bolt (64)–2
Handrail Star
Washer (95)–4
1. Make sure that the power cord is unplugged. With
the help of a second person, carefully tip the treadmill
onto its left side as shown. Partially fold the Frame (86)
so the treadmill is more stable.
Do not fully fold the
treadmill until it is completely assembled.
Orient an Extension Leg (63) so the Base Pad (61) is in
the position shown, and insert the Extension Leg into the
base of the Uprights (69). If necessary, use a rubber
mallet to fully insert the Extension Leg. Next, hold two
Extension Leg Nuts (46) in the bottom of the Extension
Leg, and insert two Leg/Handrail Bolts (93) into the top
of the Extension Leg. Firmly tighten the Leg/Handrail
Bolts into the Extension Leg Nuts.
Attach two Base Pads (57) to the base of the Uprights
(69) with two 1” Tek Screws (39).
63
86
61
57
69
39
39
93
46
1
6
To Next Page
