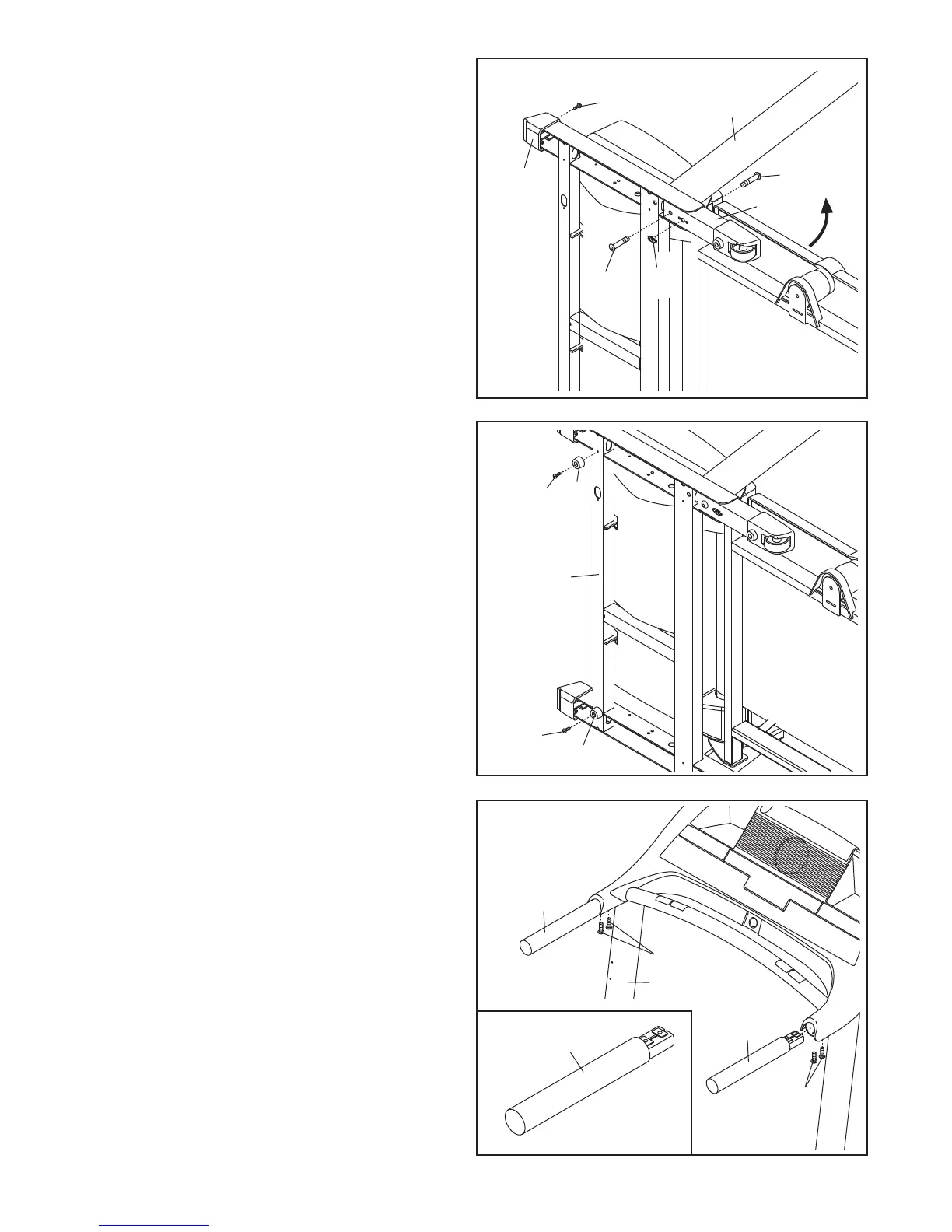

4. With the help of a second person, carefully raise
the treadmill to the vertical position.
Insert the two Handrails (20) into the tubes at
the tops of the Uprights (84). Turn the Handrails
so that the Handrail Bolts (64) can be threaded
into the Handrails (see the inset drawing).
Start both Handrail Bolts before tightening either
one.
See steps 1 and 2. Fully tighten the two Front
Endcap Screws (14) (not shown).
84
64
64
20
20
2. With the help of a second person, carefully tip
the treadmill onto its right side.
Insert the other Extension Leg (89) into the base
o
f the left Upright (84). Hold an Extension Leg
Nut (67) in the bottom of the Extension Leg, and
finger tighten a 2 1/4" Extension Leg Bolt (92)
into the top of the Extension Leg. Next, finger
tighten a 2 1/2" Extension Leg Bolt (65) into the
bottom of the Extension Leg. Firmly tighten the
Extension Leg Bolts.
Slide the other Front Endcap (44) onto the base
of the left Upright (84). Partially tighten a Front
Endcap Screw (14) into the Front Endcap and
the base.
65
44
84
14
92
67
2
3. Attach two Base Pads (82) to the base of the
Uprights (84) with two 1" Tek Screws (83).
84
83
83
82
82
3
4
89
20
