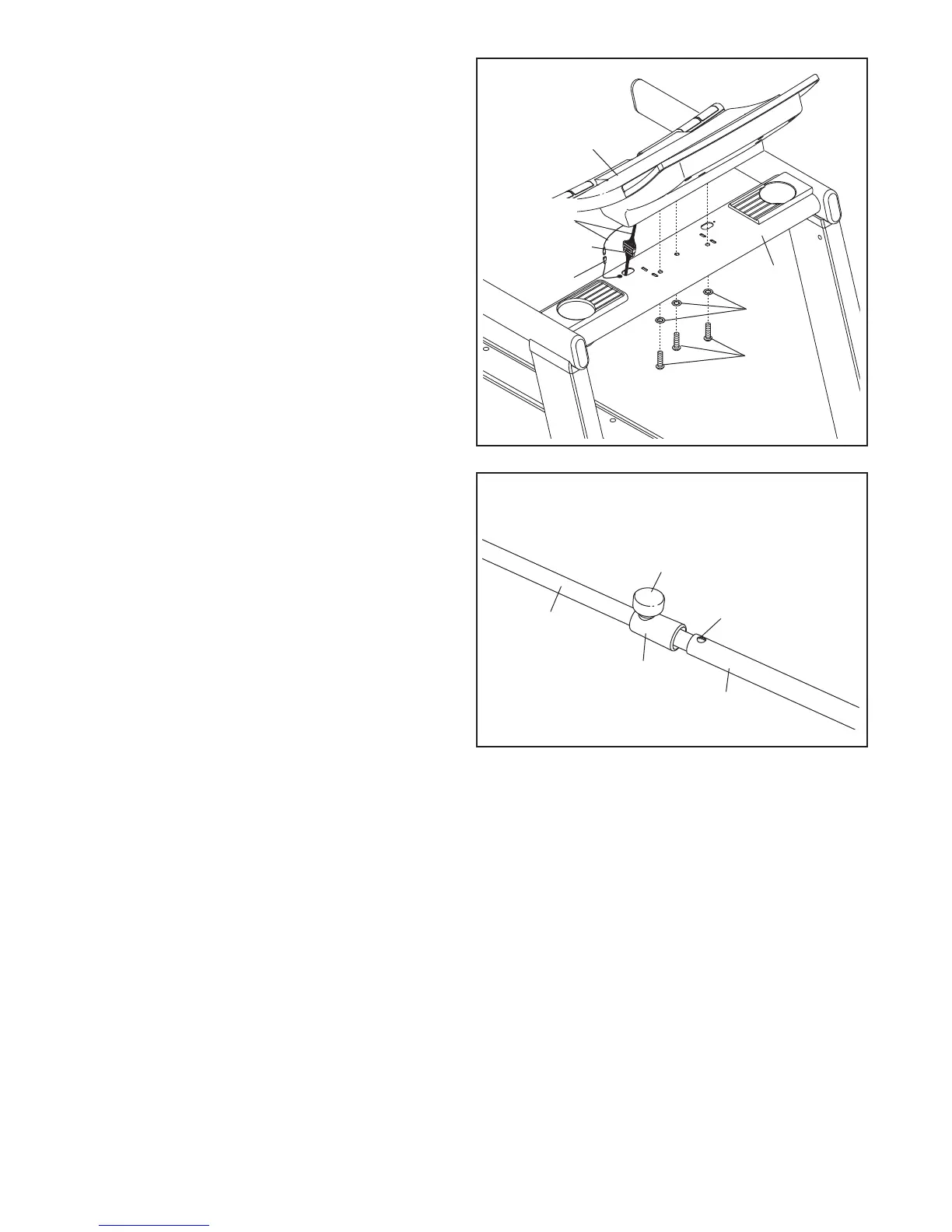

10. With the help of a second person, hold the con-
sole assembly near the Handrail Base (96).
C
onnect the Handrail Wire (52) to the console
wire.
See the lower inset drawing in step 8.
T
he connectors should slide together easily
and snap into place.
If they do not, turn one
connector and try again. IF THE CONNEC-
TORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON.
Connect the Console Ground Wire (101) to the
console assembly ground wire. Insert the wires
into the console assembly.
Attach the console assembly with three 3/8" x
2 3/4" Bolts (5) and three 3/8" Star Washers (9).
Be careful not to pinch the wires.
Console
Assembly
101
96
5
9
10
Console
Wires
52
11. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the indi-
cated hole. Pull on the sleeve to make sure
that it is locked into place.
11
54
Sleeve
Hole
Tube
53
To Next Page
