ProForm 520 Owner's Manual

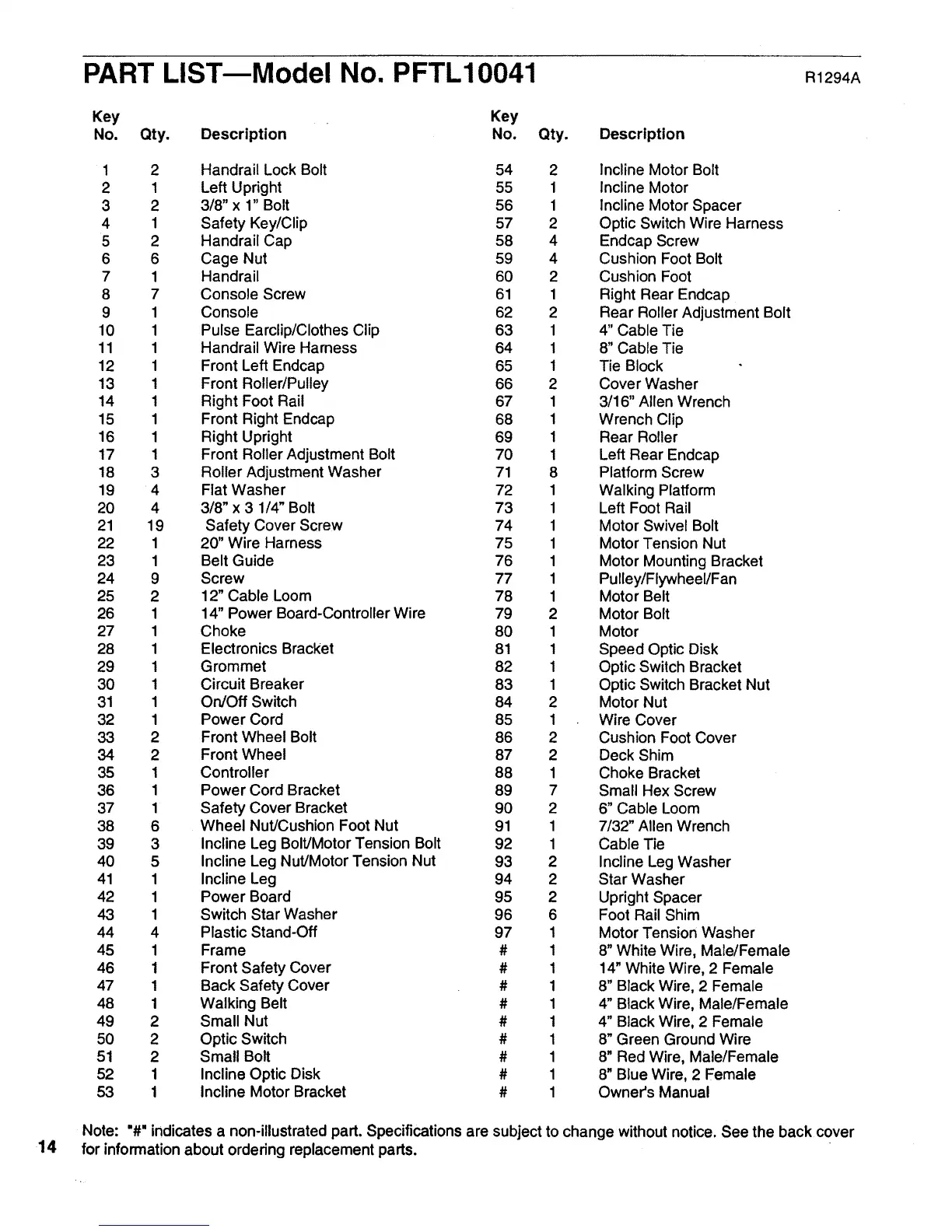

PART LiSTmModel NO. PFTL10041 R1294A
Key • Key
No. Qty. Description No. Qty. Description
1 2 Handrail Lock Bolt 54 2 Incline Motor Bolt
2 1 Left Upright 55 1 Incline Motor
3 2 3/8" x 1" Bolt 56 1 Incline Motor Spacer
4 1 Safety Key/Clip 57 2 Optic Switch Wire Harness
5 2 Handrail Cap 58 4 Endcap Screw
6 6 Cage Nut 59 4 Cushion Foot Bolt
7 1 Handrail 60 2 Cushion Foot
8 7 Console Screw 61 1 Right Rear Endcap
9 1 Console 62 2 Rear Roller Adjustment Bolt
10 1 Pulse Earclip/Clothes Clip 63 1 4" Cable Tie
11 1 Handrail Wire Harness 64 1 8" Cable Tie
12 1 Front Left Endcap 65 1 Tie Block
13 1 Front Roller/Pulley 66 2 Cover Washer
14 1 Right Foot Rail 67 1 3/16" Allen Wrench
15 1 Front Right Endcap 68 1 Wrench Clip
16 1 Right Upright 69 1 Rear Roller
17 1 Front Roller Adjustment Bolt 70 1 Left Rear Endcap
18 3 Roller Adjustment Washer 71 8 Platform Screw
19 4 Flat Washer 72 1 Walking Platform
20 4 3/8" x 3 1/4" Bolt 73 1 Left Foot Rail
21 19 Safety Cover Screw 74 1 Motor Swivel Bolt
22 1 20" Wire Harness 75 1 Motor Tension Nut
23 1 Belt Guide 76 1 Motor Mounting Bracket
24 9 Screw 77 1 Pulley/Flywheel/Fan
25 2 12" Cable Loom 78 1 Motor Belt
26 1 14" Power Board-Controller Wire 79 2 Motor Bolt
27 1 Choke 80 1 Motor
28 1 Electronics Bracket 81 1 Speed Optic Disk
29 1 Grommet 82 1 Optic Switch Bracket
30 1 Circuit Breaker 83 1 Optic Switch Bracket Nut
31 1 On/Off Switch 84 2 Motor Nut
32 1 Power Cord 85 1 Wire Cover
33 2 Front Wheel Bolt 86 2 Cushion Foot Cover
34 2 Front Wheel 87 2 Deck Shim
35 1 Controller 88 1 Choke Bracket
36 1 Power Cord Bracket 89 7 Small Hex Screw
37 1 Safety Cover Bracket 90 2 6" Cable Loom
38 6 Wheel Nut/Cushion Foot Nut 91 1 7/32" Allen Wrench
39 3 Incline Leg Bolt/Motor Tension Bolt 92 1 Cable Tie
40 5 Incline Leg Nut/Motor Tension Nut 93 2 Incline Leg Washer
41 1 Incline Leg 94 2 Star Washer
42 1 Power Board 95 2 Upright Spacer
43 1 Switch Star Washer 96 6 Foot Rail Shim
44 4 Plastic Stand-Off 97 1 Motor Tension Washer
45 1 Frame # 1 8" White Wire, Male!Female
46 1 Front Safety Cover # 1 14" White Wire, 2 Female
47 1 Back Safety Cover # 1 8" Black Wire, 2 Female
48 1 Walking Belt # 1 4" Black Wire, Male/Female
49 2 Small Nut # 1 4" Black Wire, 2 Female
50 2 Optic Switch # 1 8" Green Ground Wire
51 2 Small Bolt # 1 8" Red Wire, Male/Female
52 1 Incline Optic Disk # 1 8" Blue Wire, 2 Female
53 1 Incline Motor Bracket # 1 Owner's Manual
14
Note: "#" indicates a non.illustrated part. Specifications are subject to change without notice. See the back cover
for information about ordering replacement parts.

ProForm 520 Specifications

General

Weight Capacity	300 lbs
Workout Programs	18 built-in programs
Heart Rate Monitoring	EKG Grip Pulse
Folding	Yes
Cushioning	ProShox Cushioning
Motor	2.5 CHP Mach Z™ Motor
