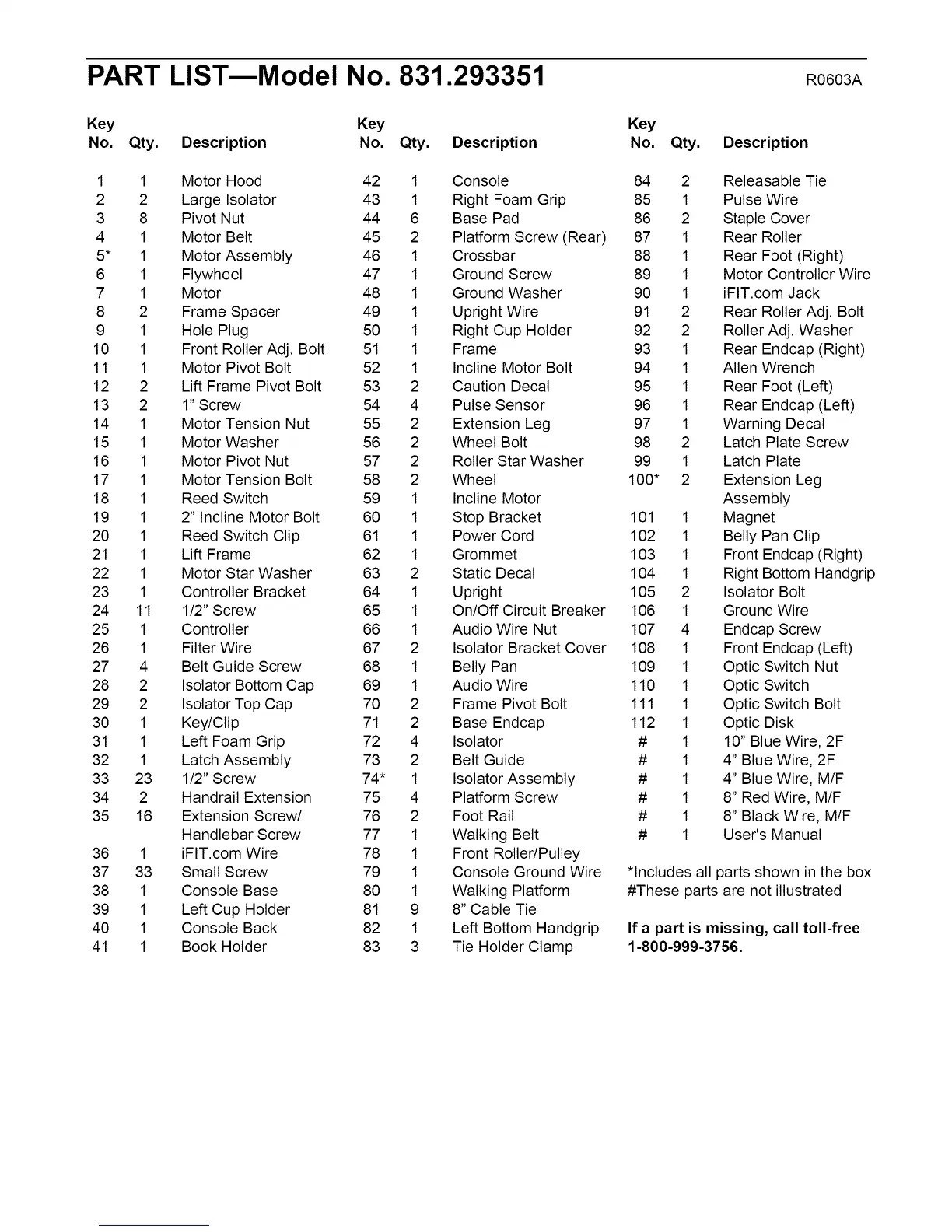

PART LISTmModel No. 831.293351 R0603A
Key Key Key
No. Qty. Description No. Qty. Description No. Qty.
1 1 Motor Hood 42 1 Console 84 2
2 2 Large Isolator 43 1 Right Foam Grip 85 1
3 8 Pivot Nut 44 6 Base Pad 86 2
4 1 Motor Belt 45 2 Platform Screw (Rear) 87 1
5* 1 Motor Assembly 46 1 Crossbar 88 1
6 1 Flywheel 47 1 Ground Screw 89 1
7 1 Motor 48 1 Ground Washer 90 1
8 2 Frame Spacer 49 1 Upright Wire 91 2
9 1 Hole Plug 50 1 Right Cup Holder 92 2
10 1 Front Roller Adj. Bolt 51 1 Frame 93 1
11 1 Motor Pivot Bolt 52 1 Incline Motor Bolt 94 1
12 2 Lift Frame Pivot Bolt 53 2 Caution Decal 95 1
13 2 1" Screw 54 4 Pulse Sensor 96 1
14 1 Motor Tension Nut 55 2 Extension Leg 97 1
15 1 Motor Washer 56 2 Wheel Bolt 98 2
16 1 Motor Pivot Nut 57 2 Roller Star Washer 99 1
17 1 Motor Tension Bolt 58 2 Wheel 100" 2
18 1 Reed Switch 59 1 Incline Motor
19 1 2" Incline Motor Bolt 60 1 Stop Bracket 101 1
20 1 Reed Switch Clip 61 1 Power Cord 102 1
21 1 Lift Frame 62 1 Grommet 103 1
22 1 Motor Star Washer 63 2 Static Decal 104 1
23 1 Controller Bracket 64 1 Upright 105 2
24 11 1/2" Screw 65 1 On/Off Circuit Breaker 106 1
25 1 Controller 66 1 Audio Wire Nut 107 4
26 1 Filter Wire 67 2 Isolator Bracket Cover 108 1
27 4 Belt Guide Screw 68 1 Belly Pan 109 1
28 2 Isolator Bottom Cap 69 1 Audio Wire 110 1
29 2 Isolator Top Cap 70 2 Frame Pivot Bolt 111 1
30 1 Key/Clip 71 2 Base Endcap 112 1
31 1 Left Foam Grip 72 4 Isolator # 1
32 1 Latch Assembly 73 2 Belt Guide # 1
33 23 1/2" Screw 74* 1 Isolator Assembly # 1
34 2 Handrail Extension 75 4 Platform Screw # 1
35 16 Extension Screw/ 76 2 Foot Rail # 1
Handlebar Screw 77 1 Walking Belt # 1
36 1 iFIT.com Wire 78 1 Front Roller/Pulley
37 33 Small Screw 79 1 Console Ground Wire
38 1 Console Base 80 1 Walking Platform
39 1 Left Cup Holder 81 9 8" Cable Tie
40 1 Console Back 82 1 Left Bottom Handgrip
41 1 Book Holder 83 3 Tie Holder Clamp
Description
Releasable Tie
Pulse Wire
Staple Cover
Rear Roller
Rear Foot (Right)
Motor Controller Wire
iFIT.com Jack
Rear Roller Adj. Bolt
Roller Adj. Washer
Rear Endcap (Right)
Allen Wrench
Rear Foot (Left)
Rear Endcap (Left)
Warning Decal
Latch Plate Screw
Latch Plate
Extension Leg
Assembly
Magnet
Belly Pan Clip
Front Endcap (Right)
Right Bottom Handgrip
Isolator Bolt
Ground Wire
Endcap Screw
Front Endcap (Left)
Optic Switch Nut
Optic Switch
Optic Switch Bolt
Optic Disk
10" Blue Wire, 2F
4" Blue Wire, 2F
4" Blue Wire, M/F
8" Red Wire, M/F
8" Black Wire, M/F
User's Manual
*Includes all parts shown in the box
#These parts are not illustrated
If a part is missing, call toll-free
1-800-999-3756.
