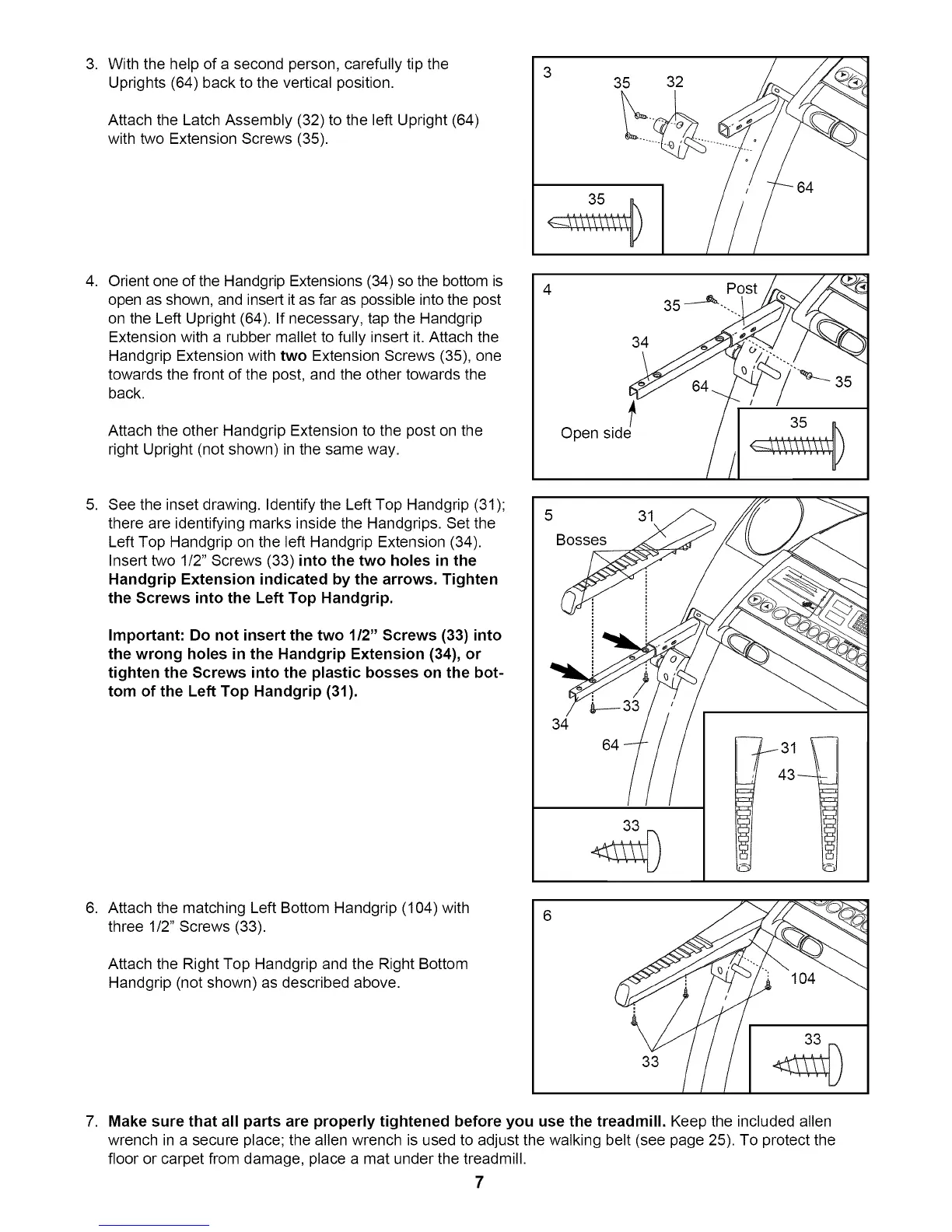

With the help of a second person, carefully tip the
Uprights (64) back to the vertical position.
Attach the Latch Assembly (32) to the left Upright (64)
with two Extension Screws (35).
Orient one of the Handgrip Extensions (34) so the bottom is
open as shown, and insert it as far as possible into the post
on the Left Upright (64). If necessary, tap the Handgrip
Extension with a rubber mallet to fully insert it. Attach the
Handgrip Extension with two Extension Screws (35), one
towards the front of the post, and the other towards the
back.
Attach the other Handgrip Extension to the post on the
right Upright (not shown) in the same way.
See the inset drawing. Identify the Left Top Handgrip (31);
there are identifying marks inside the Handgrips. Set the
Left Top Handgrip on the left Handgrip Extension (34).
Insert two 1/2" Screws (33) into the two holes in the
Handgrip Extension indicated by the arrows. Tighten
the Screws into the Left Top Handgrip.
Important: Do not insert the two 1/2" Screws (33) into
the wrong holes in the Handgrip Extension (34), or
tighten the Screws into the plastic bosses on the bot-
tom of the Left Top Handgrip (31).
3
35 32
4 Post
35--_34__"__
5 31
Bos_
33
,
Attach the matching Left Bottom Handgrip (104) with
three 1/2" Screws (33).
Attach the Right Top Handgrip and the Right Bottom
Handgrip (not shown) as described above.
6
33
104
33
,
Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 25). To protect the
floor or carpet from damage, place a mat under the treadmill.
