8

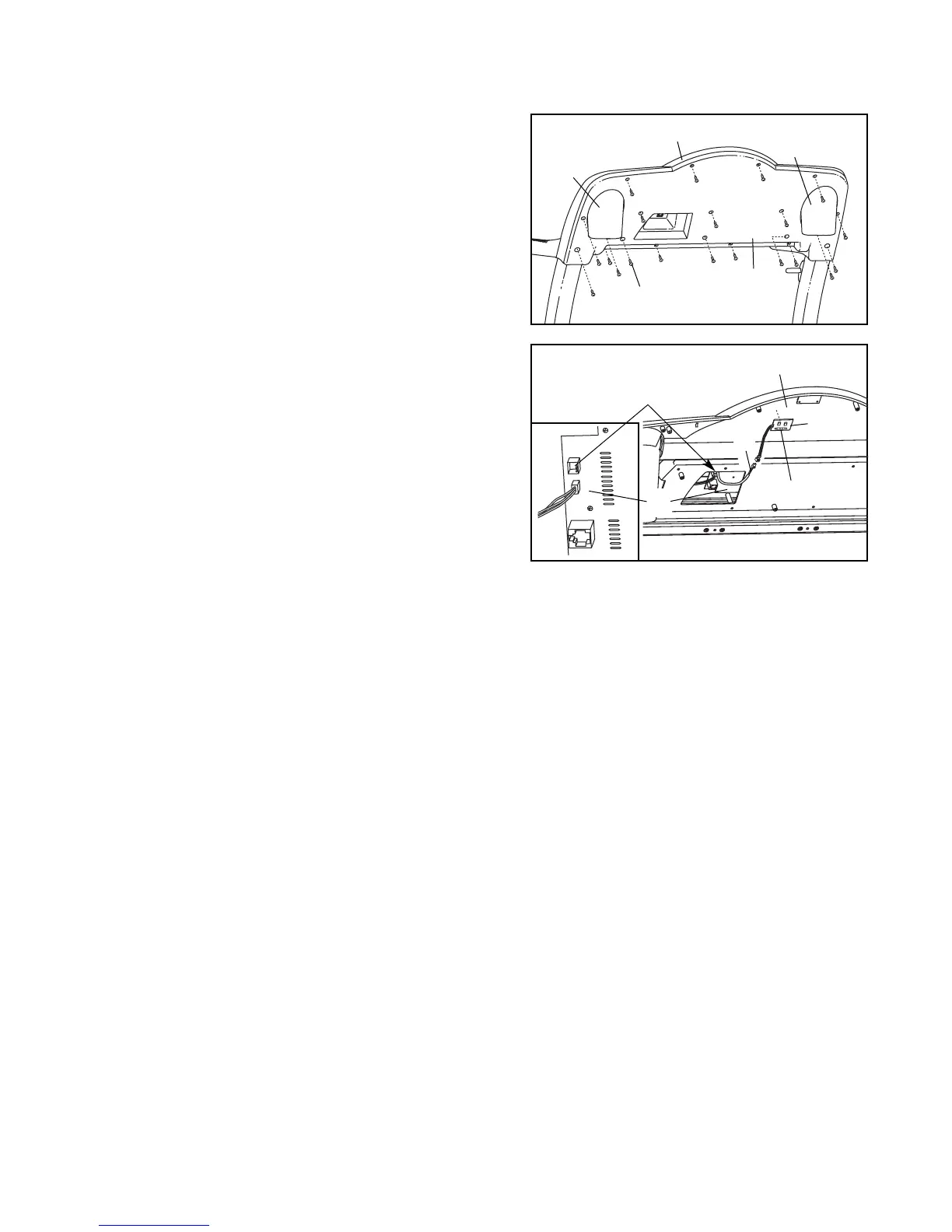

If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the
receiver and the long jumper wire included with the chest pulse sensor.
2. Connect the long jumper wire (A) to the PULSE #1 jack
on the back of the Console (42) (see the inset drawing).
Connect the other end of the long jumper wire to the wire
on the receiver (B). Next, peel the paper off the pad on
the back of the receiver. Turn the receiver so the cylin-
der is on the side shown, and press the receiver onto
the back of the Console Base (38) in the indicated loca-
tion. Use the plastic tie to secure wires if needed. Discard
the other wires included with the chest pulse sensor.
Make sure that no wires are pinched. See step 1
above and reattach the Console Back (40).
40
Screws
1
2
PULSE #1 Jack
42
38
38
39
50
B
1. MAKE SURE THAT THE POWER CORD IS UN-
PLUGGED. Remove the screws from the Console Back
(40). If the screws are different lengths, make sure to
note where each type of screw was used. If there are
clips attached to the Cup Holders (39, 50), remove the
screws from the clips. Then, remove the Console Back
from the Console Base (38).
Cylinder
A
To Next Page
