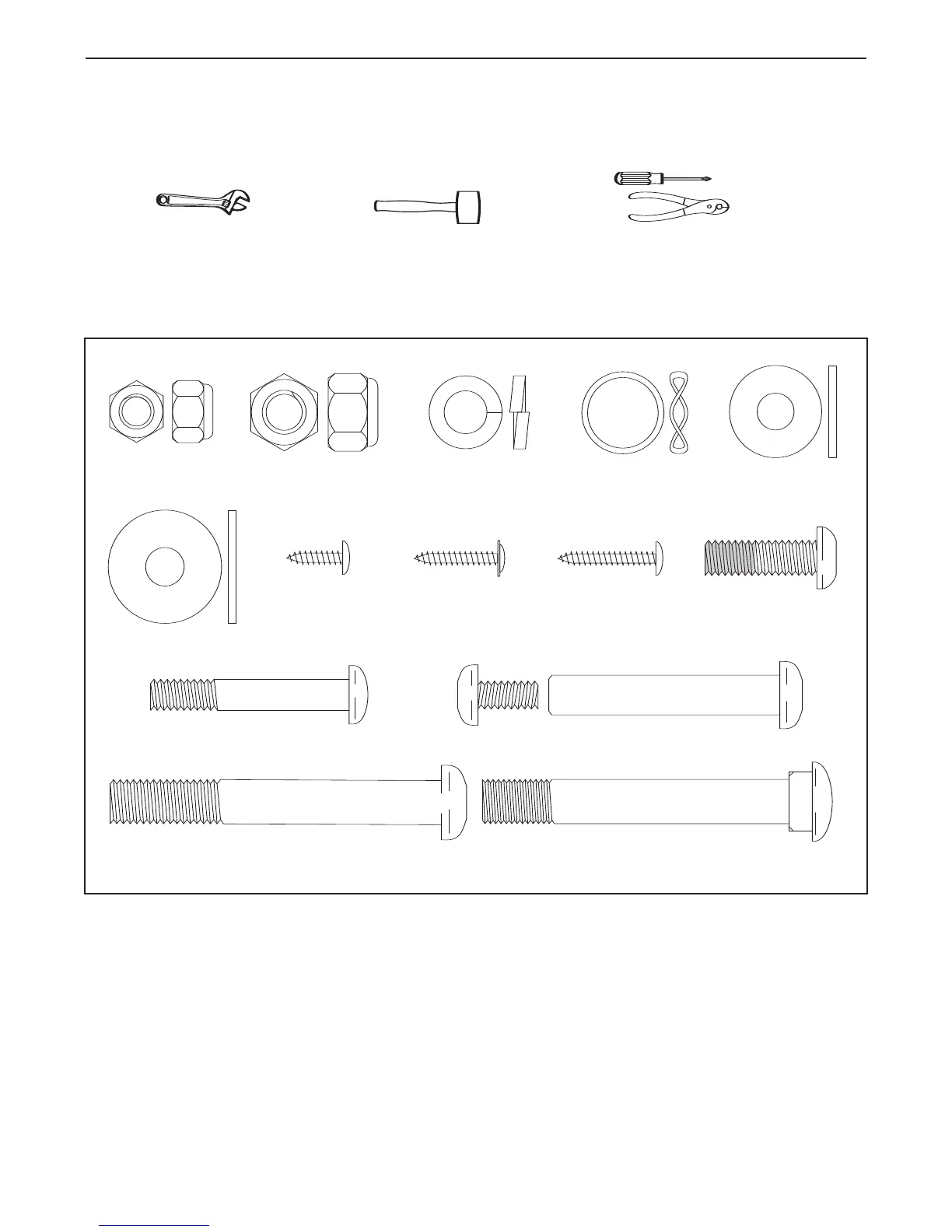

Use the chart below to identify the small parts used in assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART LIST on page 14. The number after the dash indicates the
quantity needed for assembly.
Note: Some parts may have been pre-attached for shipping. If a part is not
in the parts bag, check to see if it has been pre-attached.
M4 x 16mm
Screw (52)–4
M4 x 19mm Flange
Screw (36)–6
M4 x 22mm
Screw (42)–2
Pedal Arm Bolt Set (40)–2
M8 x 45mm Button Bolt (50)–4
M10 x 75mm Carriage Bolt (34)–4
M10 x 76 mm Button Bolt (27)–2
M8.5
Washer (55)–2
M8.5 Large
Washer (35)–2
M10 Split
Washer (59)–4
M10 Nylon
Locknut (33)–6
M8 Nylon
Locknut (38)–6
M
Wave Washer
(75)–2
M8 x 25mm Patch
Screw (56)–2
ASSEMBLY
Assembly requires two people. Place all parts of the elliptical trainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
I
n addition to the included hex key, assembly requires a phillips screwdriver , two adjustable
spanners , a rubber mallet , and a pair of pliers .
