5

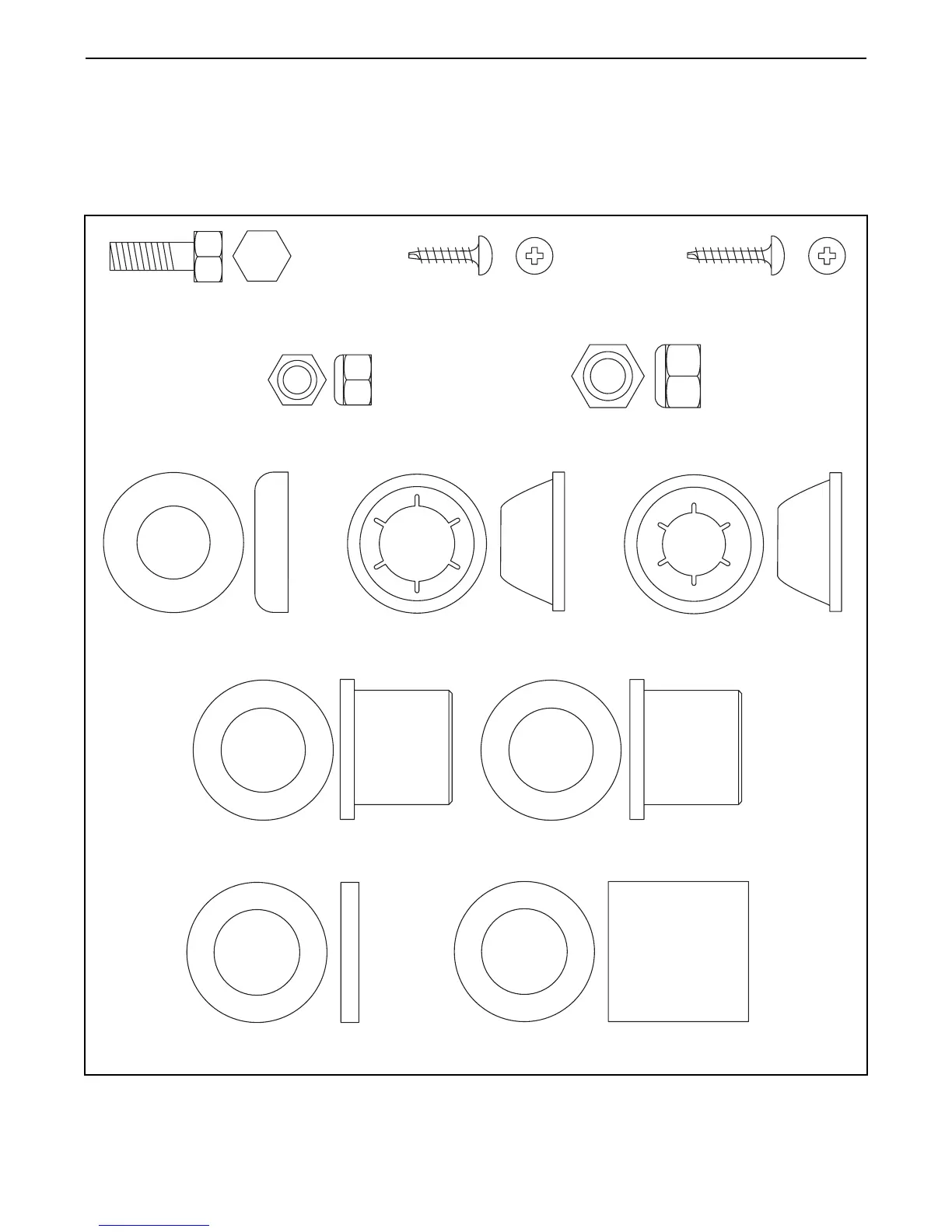

PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART
LIST on page 14. The number after the dash indicates
the quantity needed for assembly. Note: Some parts
may have been pre-attached for shipping. If a part
is not in the parts bag, check to see if it has been
pre-attached.
M10 Nylon Locknut (29)—4
Pedal Arm Spacer (41)—3*
Weld Spacer (49)—2
5/8” Axle Cap (57)—2*
3/4” Axle Cap (43)—4*
M6 Black Nylon Locknut (55)—2
M6 x 16mm Screw (54)—2
Handlebar Spacer (39)—2
Rear Pedal Arm Bushing (11)—4
Pedal Arm Bushing (42)—4
M4 x 19mm Round
Head Screw (16)—6
M4 x 16mm Round
Head Screw (38)—4
* Extra parts may be included.
