6

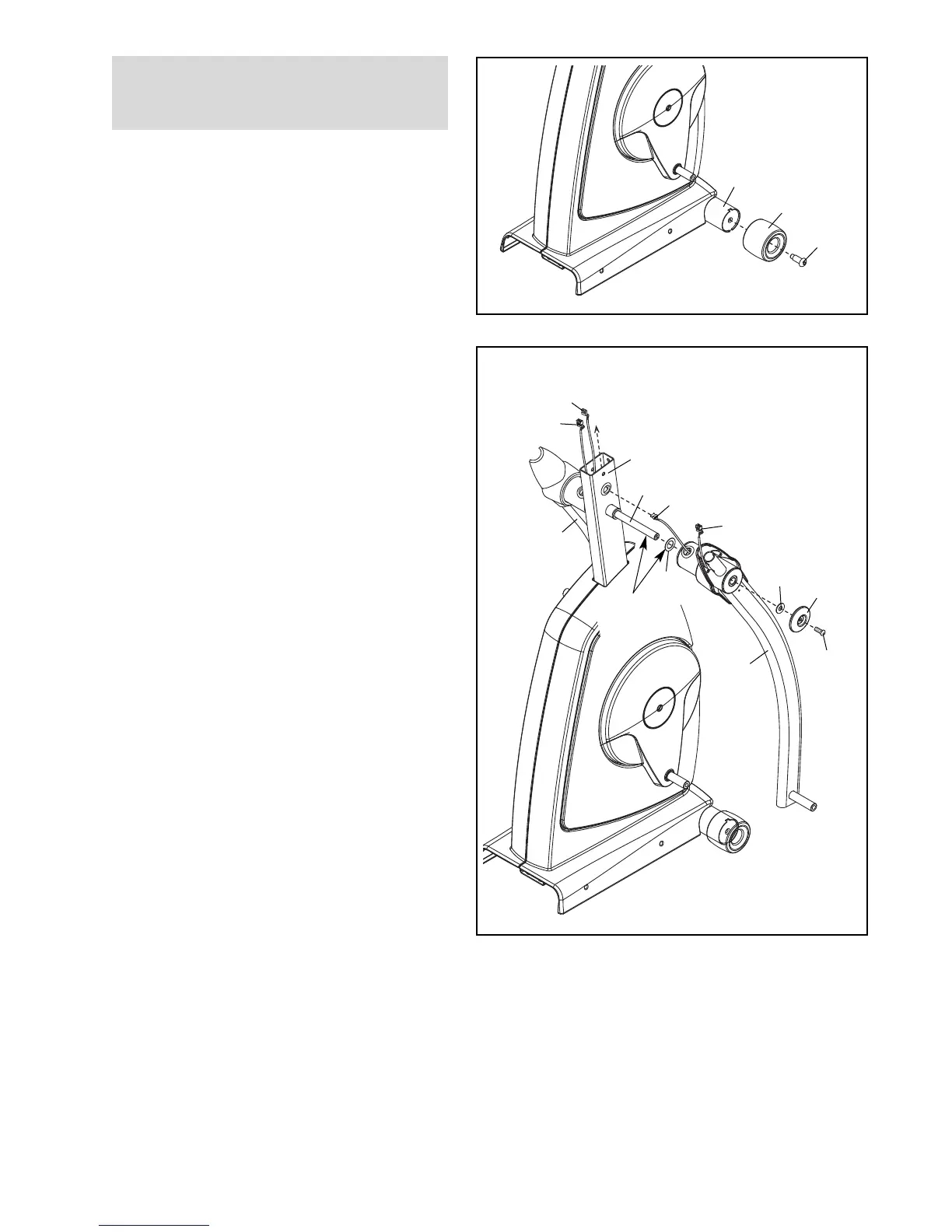

1.
A
ttach a Wheel (8) to one side of the Frame (1)
with an M10 x 35mm Shoulder Screw (57).
Attach the other Wheel (not shown) in the
same way.
2. Apply a generous amount of the included
grease to the Pivot Axle (41). Then, insert the
Pivot Axle through the Frame (1).
Apply a small amount of grease to a 16mm
Wave Washer (66). Slide the Wave Washer
onto the right side of the Pivot Axle (41).
Identify the Right Upper Body Arm (37), which is
marked with an “R” sticker. Make sure that the
ends of the Right Extension Wire (83) are
oriented as shown.
Slide the Right Upper Body Arm (37) onto the
Pivot Axle (41). Then, insert the end of the
Right Extension Wire (83) upward through the
Frame (1).
Tip: Avoid pinching the Right Extension Wire
(83) during this step. Attach the Right Upper
Body Arm (37) with an M8 x 25mm Patch Screw
(77), a Pivot Axle Cover (44), and an M8 x
25mm Washer (54).
Attach the Left Upper Body Arm (23) in the
same way.
Tip: Use an elastic band or a piece of tape to
prevent the ends of the Wire Harness (73)
and the Right and Left Extension Wires (83,
not shown) from falling into the Frame (1).
1
2
57
1
8
1
To make assembly easier, read the
information on page 5 before you begin
a
ssembling the elliptical exerciser.
37
23
41
77
66
83
83
73
83
Grease
44
54
Avoid pinching the
wires during this step
