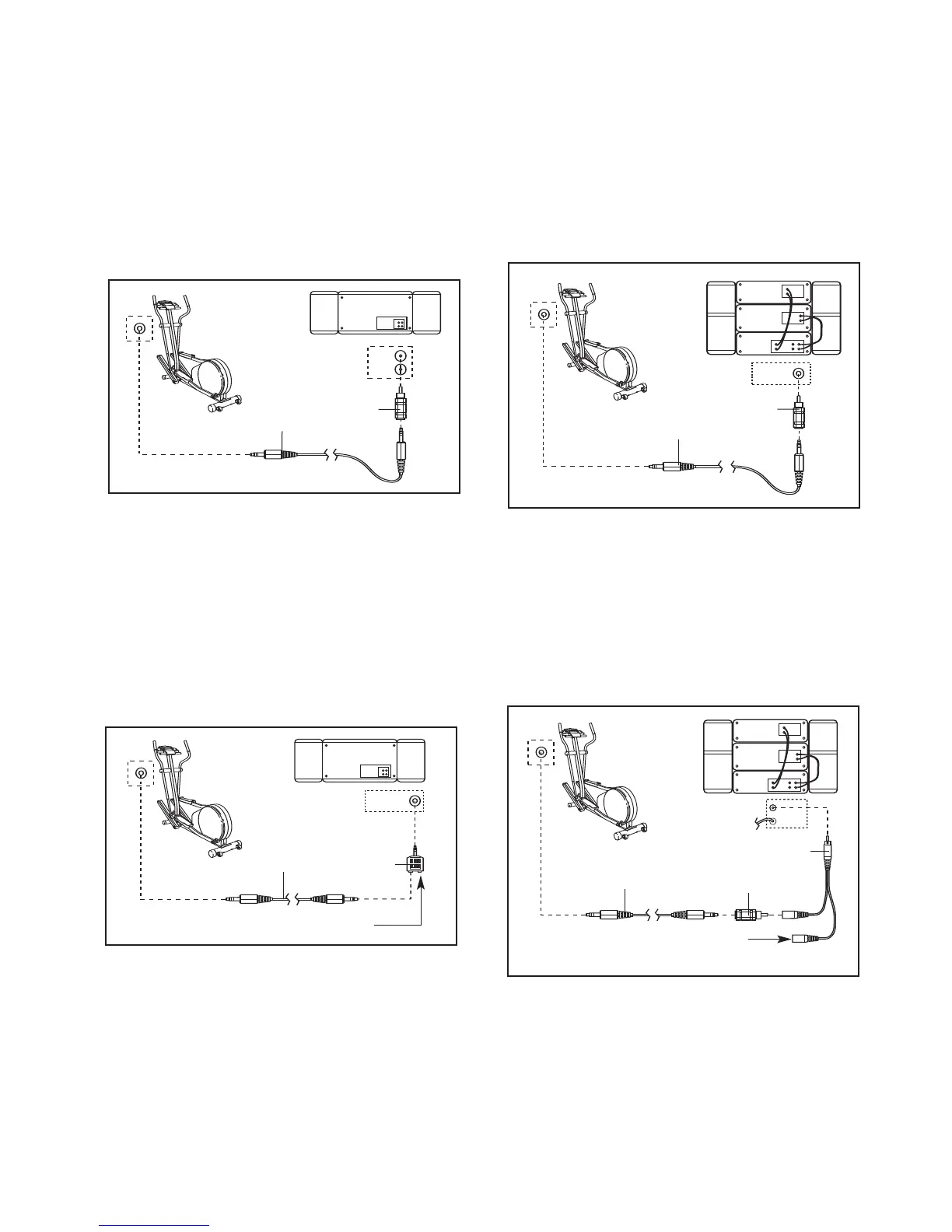

HOW TO CONNECT YOUR PORTABLE STEREO
N
ote: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3
.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the
other end of the audio cable into the LINE OUT
jack on your stereo. Do not use the adaptor.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your stereo. Plug your head-
phones into the other side of the splitter.
HOW TO CONNECT YOUR HOME STEREO
N
ote: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
b
eing used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adaptor. Plug the
Y-adaptor into the LINE OUT jack on your stereo.
B
A
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
Audio
Cable
A
B
A
CD
VCR
Amp
L
INE OUT
L
INE OUT
CD
VCR
Amp
LINE OUT
Audio Cable
RCA Y-adaptor
Adaptor
Wire removed from
LINE OUT jack
B
Adaptor
A
C
PHONES
LINE OUT
AUDIO OUT
RIGHT
LEFT
B
Audio
Cable
Adaptor
A/B
A
C
PHONES
L
INE OUT
A
UDIO OUT
RIGHT
LEFT
B
Audio
Cable
C
Splitter
Headphones
To Next Page
