5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
p
acking materials. Do not dispose of the packing materials until assembly is completed.
A
ssembly requires the
included hex keys and a phillips screwdriver , an adjustable spanner , and a
rubber mallet .

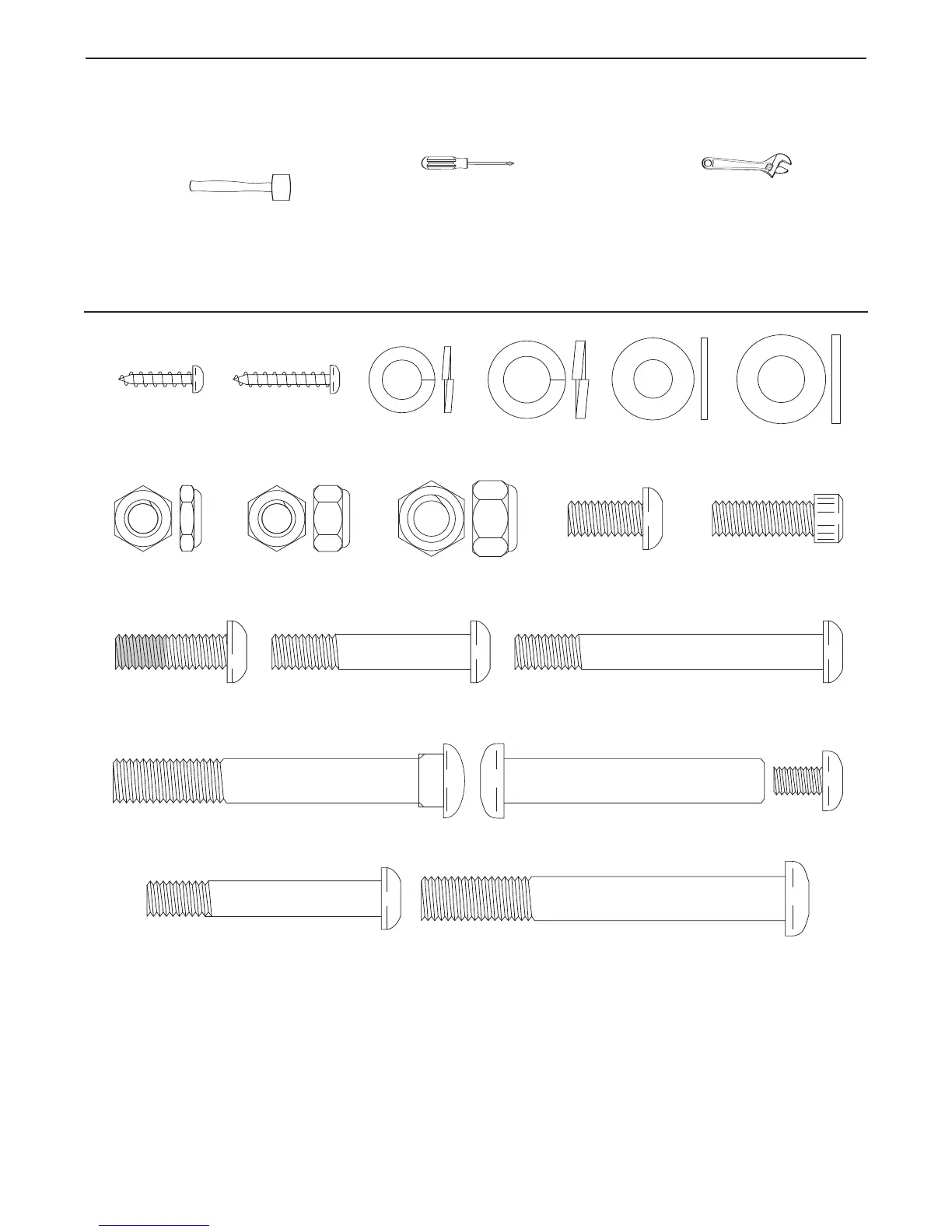

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-
ing the parentheses is the quantity needed for assembly.
Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled.
M8 x 70mm Button
Bolt (67)–2
M10 x 83mm Button
Screw (63)–2
M8 x 53mm Button
Screw (84)–4
M8 x 45mm Button
Bolt (50)–4
M10 Nylon
Locknut (29)–2
M8 Nylon
Locknut (46)–6
M8 x 16mm Button
Screw (91)–4
M8 x 25mm Patch
Screw (22)–2
M10 x 75mm Carriage
Bolt (34)–2
M10 x 59mm Bolt
Set (27)–2
M10 Split Washer
(94)–2
M8 Split Washer
(83)–6
M4 x 16mm
Screw (66)–4
M4 x 22mm
Screw (76)–2
M8 Washer
(53)–2
M10 Washer
(98)–4
M8 Jamnut
(104)–4
Cover Screw
(82)–4
To Next Page
