If you purchase the optional chest pulse sensor, follow the steps below to install the receiver included
with the chest pulse sensor.
1. Make sure that the key is removed from the con-
s
ole and that the power cord is unplugged.
Remove the indicated Screw (3) and the Access
Door (76) from the back of the Console Base (85).

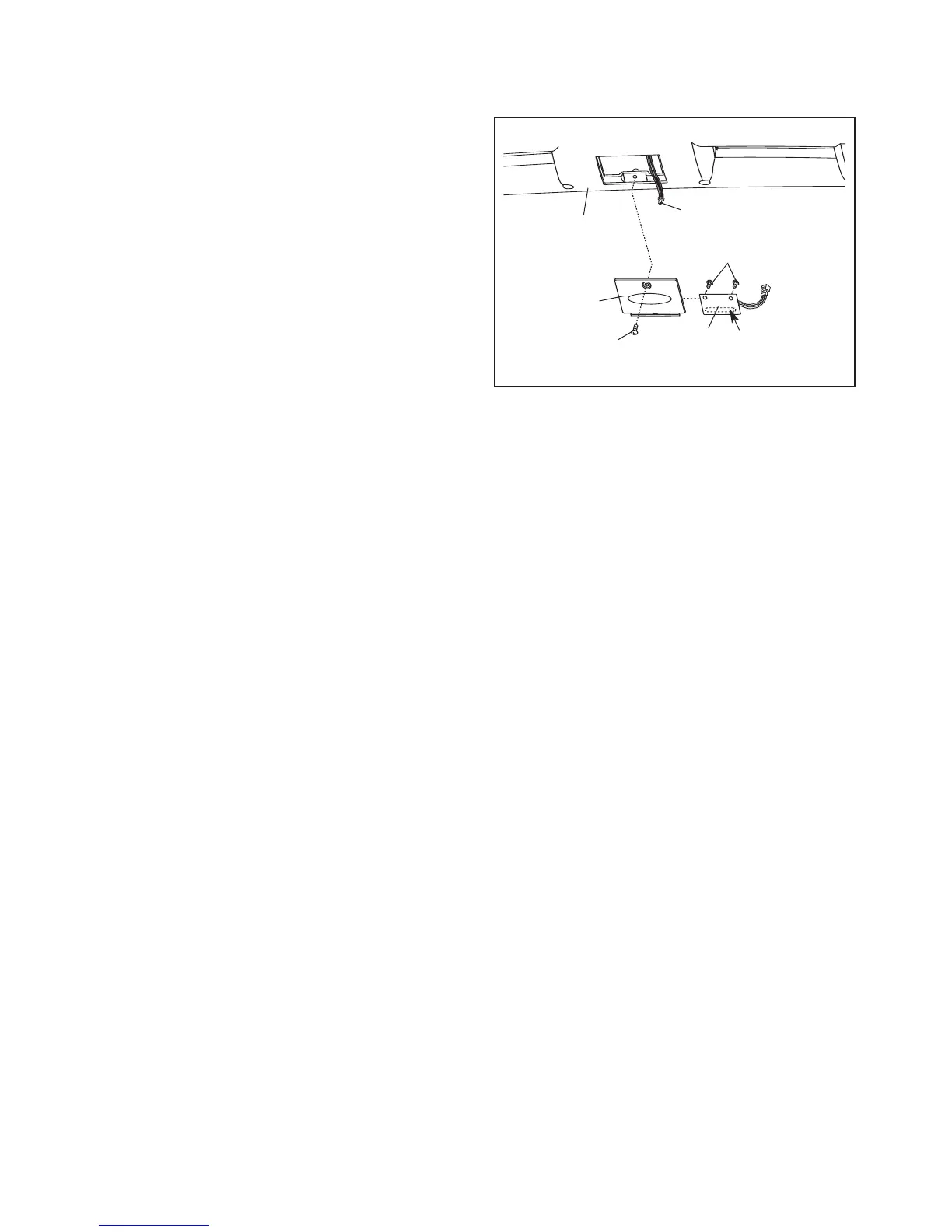

2. Connect the wire on the receiver (A) to the indicated
wire extending from the Console Base (85). Hold
the receiver so the small cylinder is oriented as
shown and is facing the Console Back.
Attach
the receiver to the plastic posts on the Access Door
(76) with the two included small screws.
3.
Make sure that no wires are pinched. Reattach
the Access Door (76) with the Screw (3). Discard
the other wires included with the receiver.
A
8
5
Small
Cylinder
3
76
Small
Screws
Wire
To Next Page
