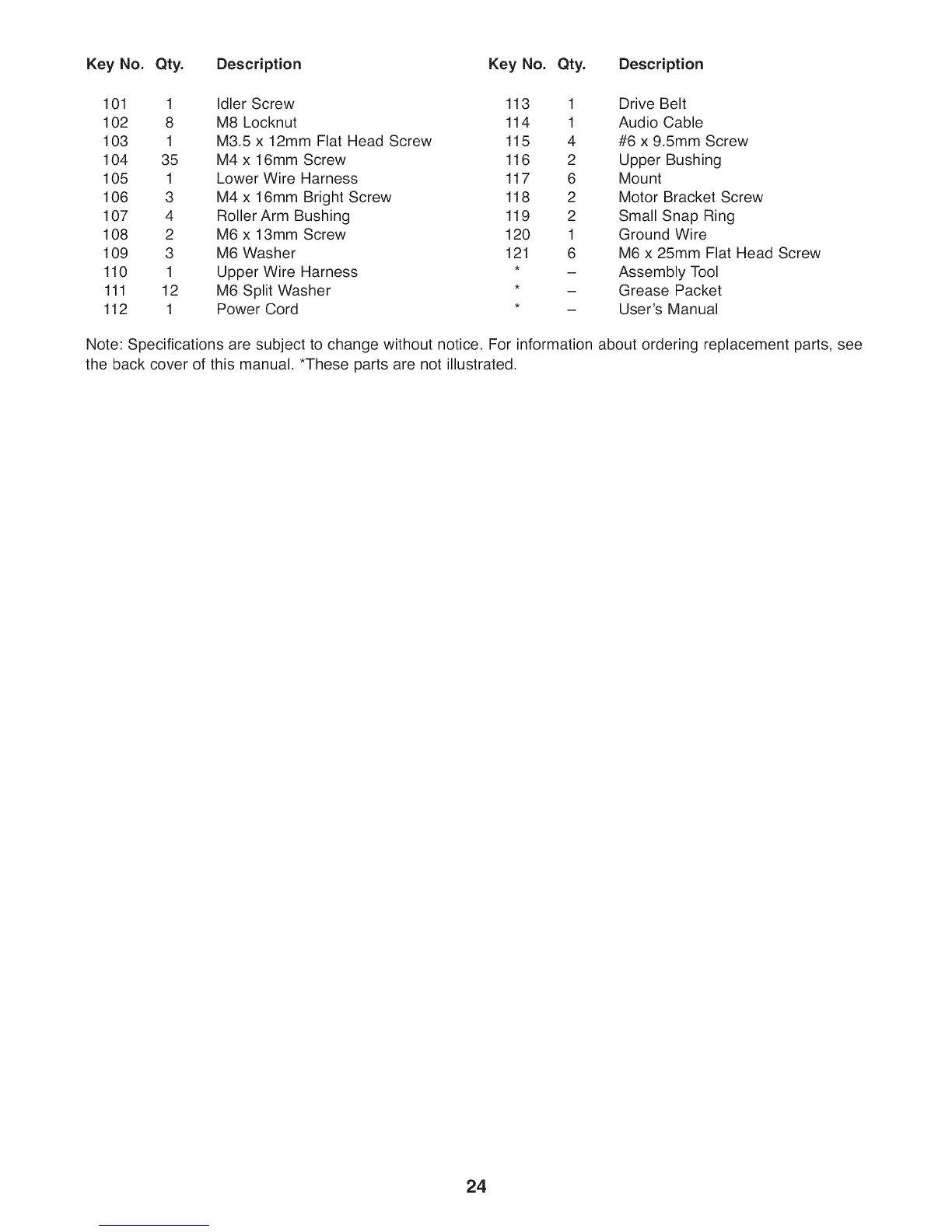

Key No. Qty. Description Key No. Qty. Description
101 1 Idler Screw 113 1 Drive Belt
102 8 M8 Locknut 114 1 Audio Cable
103 1 M3.5 x 12mm Flat Head Screw 115 4 #6 x 9.5mm Screw
104 35 M4 x 16mm Screw 116 2 Upper Bushing
105 1 Lower Wire Harness 117 6 Mount
106 3 M4 x 16mm Bright Screw 118 2 Motor Bracket Screw
107 4 Roller Arm Bushing 119 2 Small Snap Ring
108 2 M6 x 13mm Screw 120 1 Ground Wire
109 3 M6 Washer 121 6 M6 x 25mm Flat Head Screw
110 1 Upper Wire Harness * - Assembly Tool
111 12 M6 Split Washer * - Grease Packet
112 1 Power Cord * - User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
24
