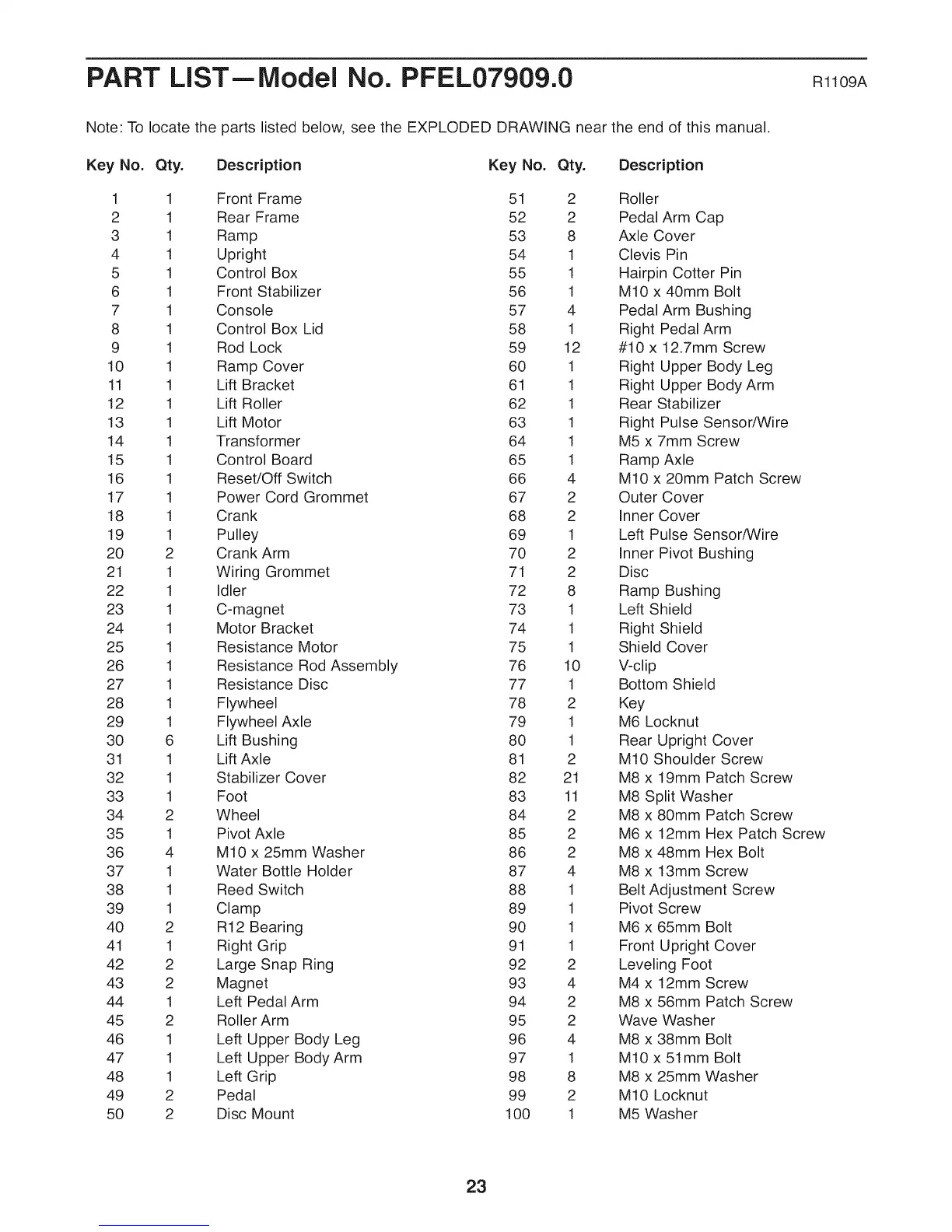

PART LiST--Model No. PFEL07909.0 Rl109A
Note: To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Front Frame 51 2
2 1 Rear Frame 52 2
3 1 Ramp 53 8
4 1 Upright 54 1
5 1 Control Box 55 1
6 1 Front Stabilizer 56 1
7 1 Console 57 4
8 1 Control Box Lid 58 1
9 1 Rod Lock 59 12
10 1 Ramp Cover 60 1
11 1 Lift Bracket 61 1
12 1 Lift Roller 62 1
13 1 Lift Motor 63 1
14 1 Transformer 64 1
15 1 Control Board 65 1
16 1 Reset/Off Switch 66 4
17 1 Power Cord Grommet 67 2
18 1 Crank 68 2
19 1 Pulley 69 1
20 2 Crank Arm 70 2
21 1 Wiring Grommet 71 2
22 1 Idler 72 8
23 1 C-magnet 73 1
24 1 Motor Bracket 74 1
25 1 Resistance Motor 75 1
26 1 Resistance Rod Assembly 76 10
27 1 Resistance Disc 77 1
28 1 Flywheel 78 2
29 1 Flywheel Axle 79 1
30 6 Lift Bushing 80 1
31 1 Lift Axle 81 2
32 1 Stabilizer Cover 82 21
33 1 Foot 83 11
34 2 Wheel 84 2
35 1 Pivot Axle 85 2
36 4 M10 x 25mm Washer 86 2
37 1 Water Bottle Holder 87 4
38 1 Reed Switch 88 1
39 1 Clamp 89 1
40 2 R12 Bearing 90 1
41 1 Right Grip 91 1
42 2 Large Snap Ring 92 2
43 2 Magnet 93 4
44 1 Left Pedal Arm 94 2
45 2 Roller Arm 95 2
46 1 Left Upper Body Leg 96 4
47 1 Left Upper Body Arm 97 1
48 1 Left Grip 98 8
49 2 Pedal 99 2
50 2 Disc Mount 100 1
Roller
Pedal Arm Cap
Axle Cover
Clevis Pin
Hairpin Cotter Pin
M10 x 40mm Bolt
Pedal Arm Bushing
Right Pedal Arm
#10 x 12.7mm Screw
Right Upper Body Leg
Right Upper Body Arm
Rear Stabilizer
Right Pulse Sensor/Wire
M5 x 7mm Screw
Ramp Axle
M10 x 20mm Patch Screw
Outer Cover
Inner Cover
Left Pulse Sensor/Wire
Inner Pivot Bushing
Disc
Ramp Bushing
Left Shield
Right Shield
Shield Cover
V-clip
Bottom Shield
Key
M6 Locknut
Rear Upright Cover
M10 Shoulder Screw
M8 x 19mm Patch Screw
M8 Split Washer
M8 x 80mm Patch Screw
M6 x 12mm Hex Patch Screw
M8 x 48mm Hex Bolt
M8 x 13mm Screw
Belt Adjustment Screw
Pivot Screw
M6 x 65mm Bolt
Front Upright Cover
Leveling Foot
M4 x 12mm Screw
M8 x 56mm Patch Screw
Wave Washer
M8 x 38mm Bolt
M10 x 51mm Bolt
M8 x 25mm Washer
M10 Locknut
M5 Washer
23
