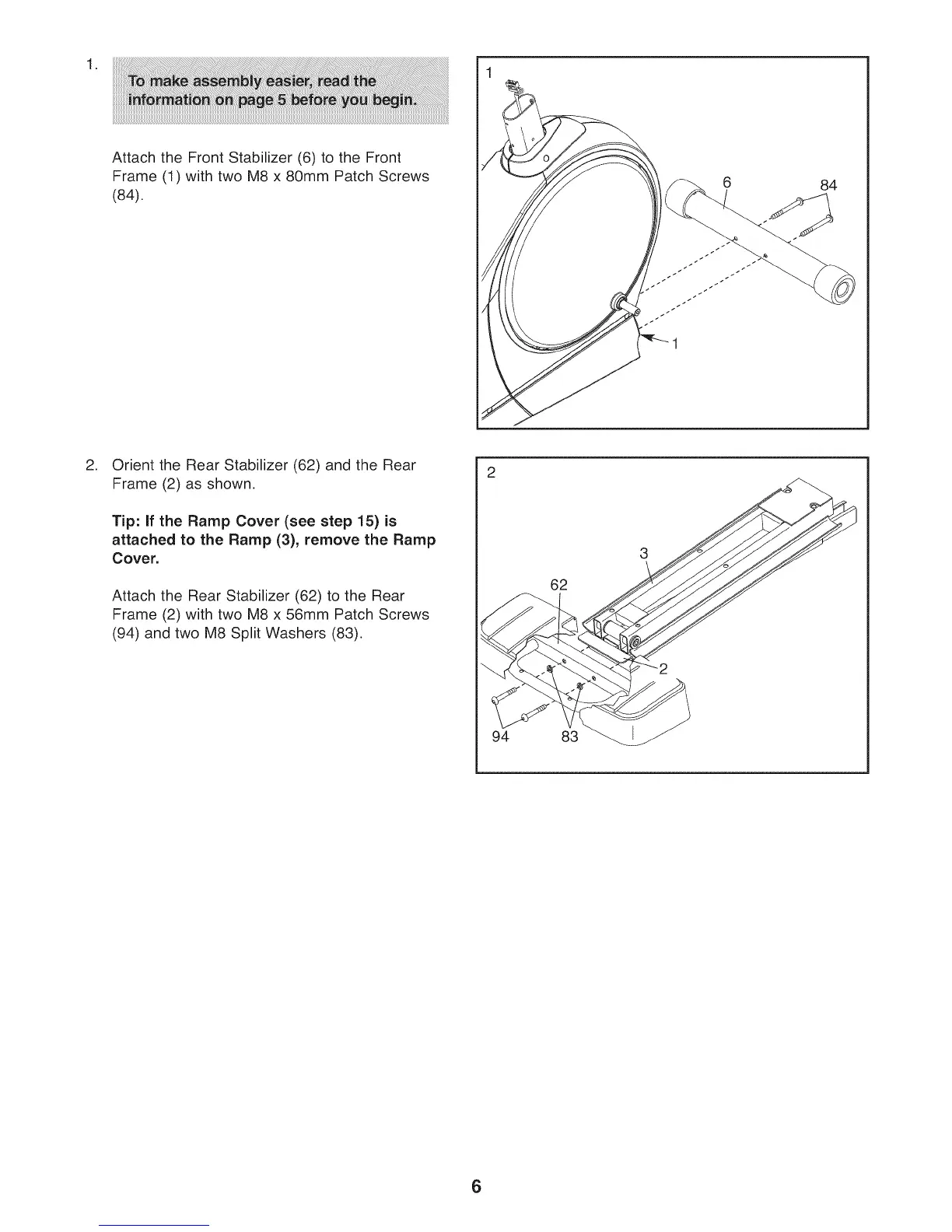

Attach the Front Stabilizer (6) to the Front
Frame (1) with two M8 x 80mm Patch Screws
(84).
84
.
Orient the Rear Stabilizer (62) and the Rear
Frame (2) as shown.
Tip: If the Ramp Cover (see step 15) is
attached to the Ramp (3), remove the Ramp
Cover.
Attach the Rear Stabilizer (62) to the Rear
Frame (2) with two M8 x 56mm Patch Screws
(94) and two M8 Split Washers (83).
62
94 83
6
