ASSEMBLY
Assembly requires two persons. Place the treadmill in a cleared area . Do not remove the packing materials
until the Upright (65) is raised the the vertical position (see step 1 below). Do not dispose
of the packing materials
until the treadmill is assembled.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or
the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own phillips screwdriver .

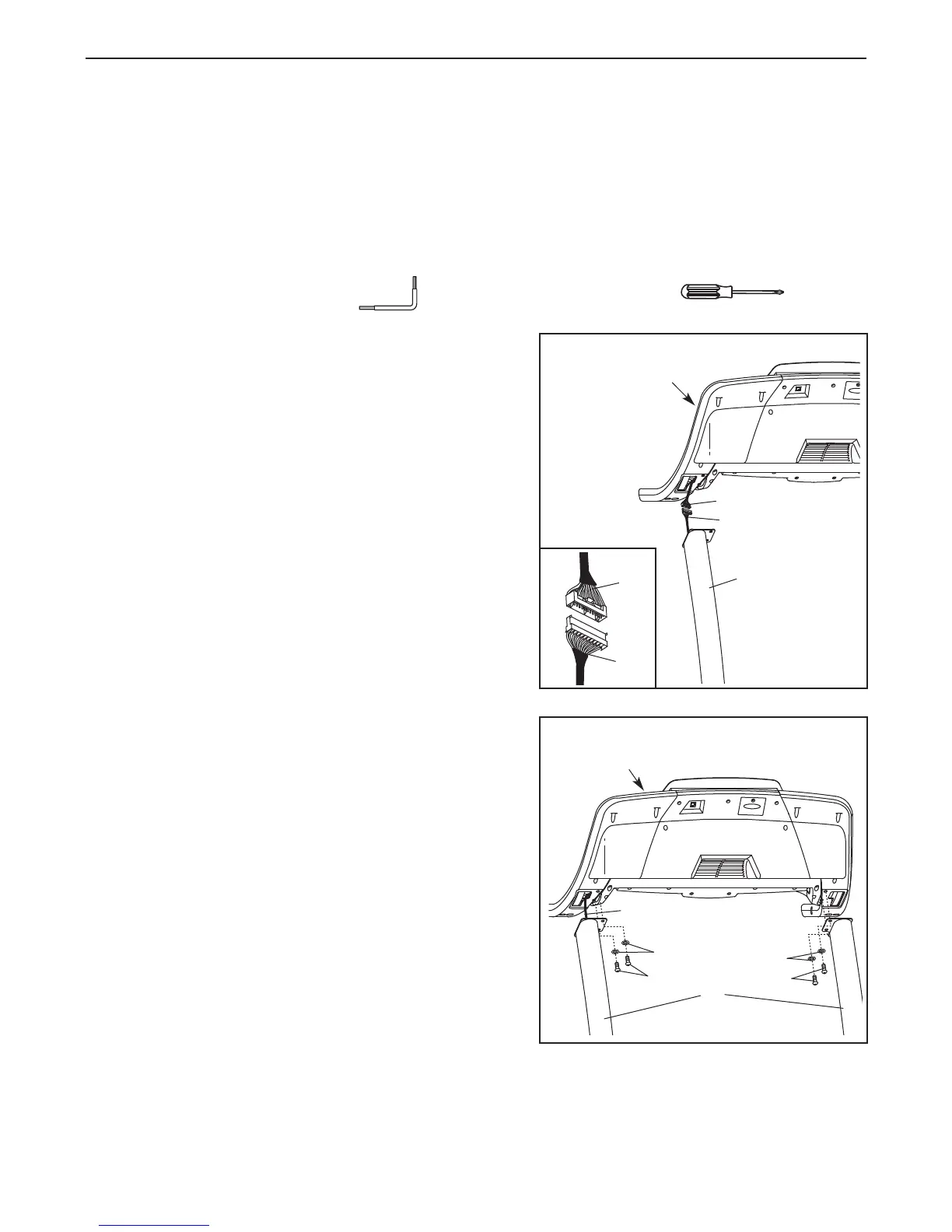

1. With the help of a second person, carefully raise the
Uprights (65) to a vertical position.
Have the second person hold the console assembly near
the Uprights (65) as shown. Look under the console as-
sembly and locate the
Console Wire Harness (71).
Cut the plastic ties securing the Upright Wire Harness
(85) to the right Upright (65). Connect the Upright Wire
Harness to the Console Wire Harness (71).
Make sure to
connect the connectors properly (see the inset draw-
ing). The connectors should slide together easily and
snap into place. If the connectors do not slide together
easily and snap into place, turn one connector and try
again. IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED
WHEN THE POWER IS TURNED ON.
65
85
71
1
Console
Assembly
6
Console
Assembly
94
71, 85
94
99
99
65
2
85
71
2. Insert the excess Wire Harness (71, 85) into the right
Upright (65).
Set the console assembly on the Uprights (65). Whilst a
second person holds the console assembly, attach the
console assembly with four Console Bolts (99) and four
Console Star Washers (94) as shown.
Firmly tighten the
Console Bolts.
To Next Page
