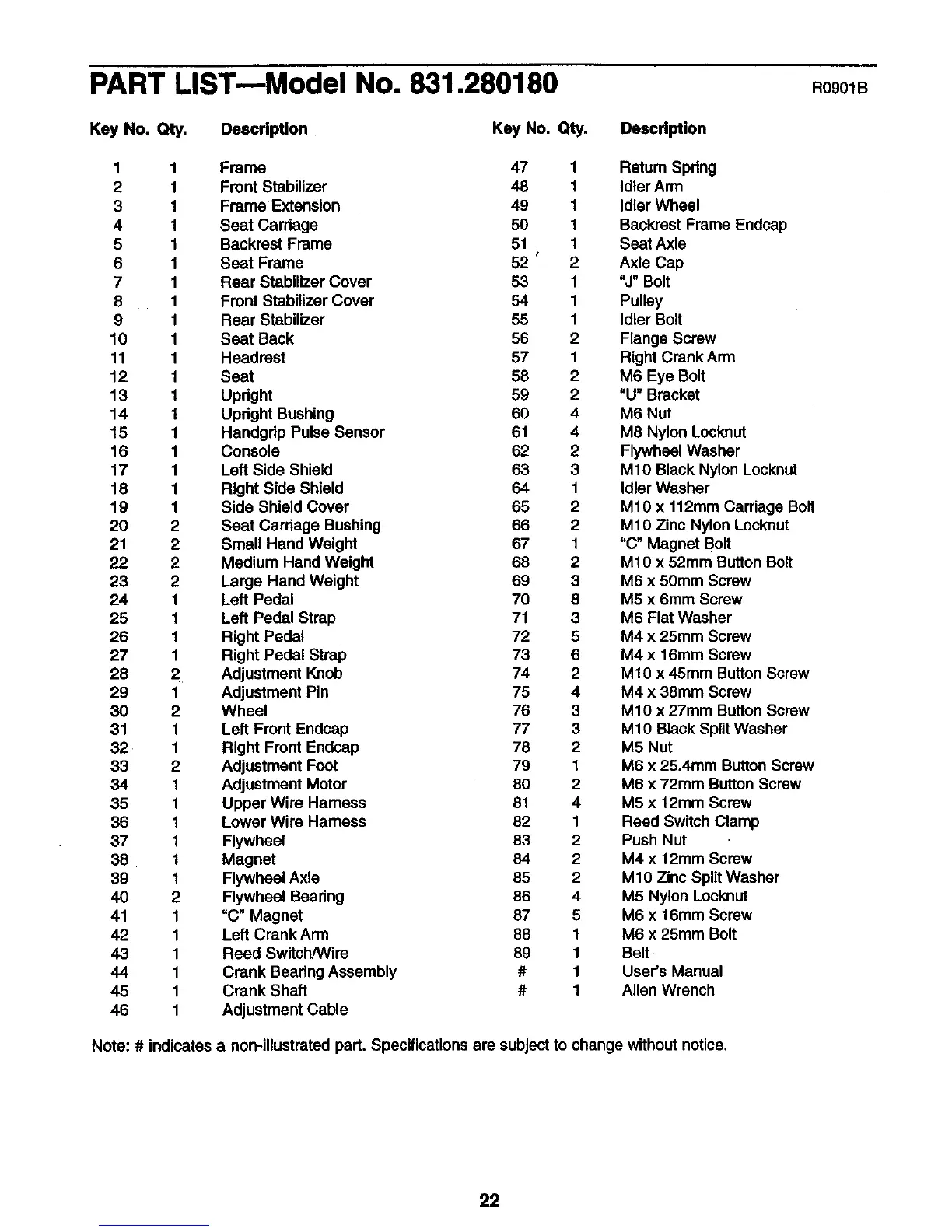

PART LIST--Model No. 831.280180 Rog01B
Key No. Qty. DeacdpUon Key No. Qty. Description
1 1 Frame 47 1 Retum Spring
2 1 Front Stabilizer 48 1 Idler Arm
3 1 Frame Extension 49 1 Idler Wheel
4 1 Seat Carriage 50 1 Backrest Frame Endcap
5 1 Backrest Frame 51 1 Seat Axle
6 1 Seat Frame 52 2 Axle Cap
7 1 Rear Stabilizer Cover 53 1 "J" Bolt
8 1 Front Stabilizer Cover 54 1 Pulley
9 1 Rear Stabilizer 55 1 Idler Bolt
10 1 Seat Back 56 2 Flange Screw
11 1 Headrest 57 1 Right Crank Arm
12 1 Seat 58 2 M6 Eye Bolt
13 1 Updght 59 2 "U" Bracket
14 1 Updght Bushing 60 4 M6 Nut
15 1 Handgdp Pulse Sensor 61 4 M8 Nylon Locknut
16 1 Console 62 2 Flywheel Washer
17 1 Left Side Shield 63 3 M10 Black Nylon Locknut
18 1 Right Side Shield 64 1 Idler Washer
19 1 Side Shield Cover 65 2 M10 x 112mm Carriage Bolt
20 2 Seat Carriage Bushing 66 2 M10 Zinc Nylon Locknut
21 2 Small Hand Weight 67 1 "C" Magnet Bolt
22 2 Medium Hand Weight 68 2 M10 x 52mm Button Bolt
23 2 Large Hand Weight 69 3 M6 x 50ram Screw
24 t Left Pedal 70 8 M5 x 6mm Screw
25 1 Left Pedal Strap 71 3 M6 Flat Washer
26 1 Right Pedal 72 5 M4 x 25mm Screw
27 1 Right Pedal Strap 73 6 M4 x 16mm Screw
28 2 Adjustment Knob 74 2 M10 x 45mm Button Screw
29 1 Adjustment Pin 75 4 M4 x 38ram Screw
30 2 Wheel 76 3 M10 x 27mm Button Screw
31 1 Left Front Endcap 77 3 M10 Black SplitWasher
32 1 Right Front Endcap 78 2 M5 Nut
33 2 Adjustment Foot 79 1 M6 x 25.4mm Button Screw
34 1 Adjustment Motor 80 2 M6 x 72mm Button Screw
35 1 Upper Wire Hamess 81 4 M5 x 12mm Screw
36 1 Lower Wire Harness 82 1 Reed Switch Clamp
37 1 Flywheel 83 2 Push Nut
38. 1 Magnet 84 2 M4 x 12rnm Screw
39 1 Flywheel Axle 85 2 M10 Zinc Split Washer
40 2 Flywheel Bearing 86 4 M5 Nylon Locknut
41 1 =C" Magnet 87 5 M6 x 16mm Screw
42 1 Left Crank Arm 88 1 M6 x 25mm Bolt
43 1 Reed Switch/Wire 89 1 Belt
44 1 Crank Bearing Assembly # 1 User's Manual
45 1 Crank Shaft # 1 Allen Wrench
46 1 Adjustment Cable
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
